Exploded View

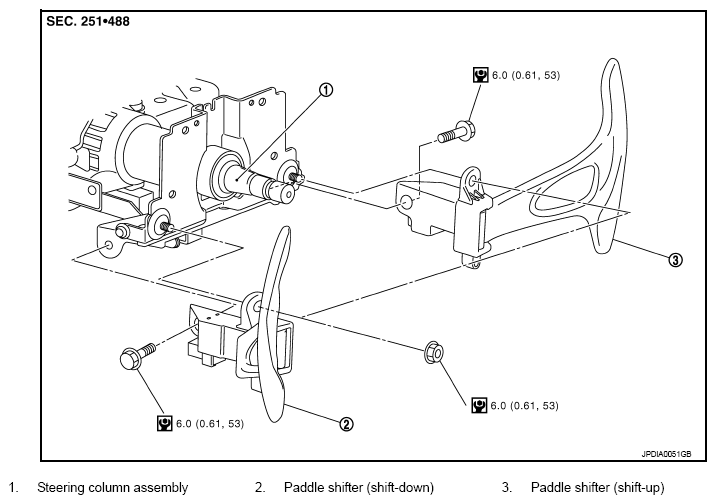

Fig 1: Exploded View Of Paddle Shifter With Torque Specifications
G08217731Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
