Cross-Sectional View

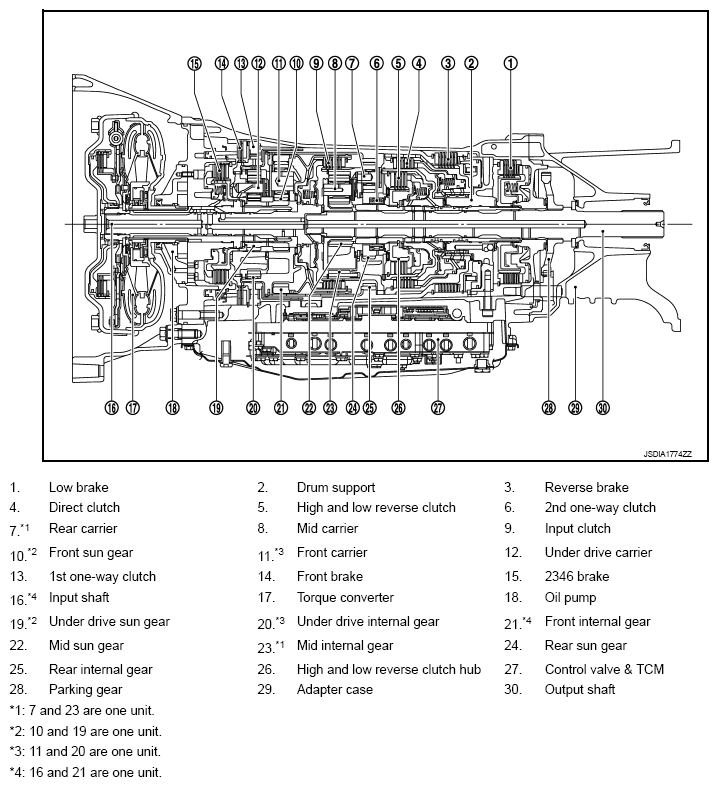

Fig 1: Cross-Sectional View Shift Mechanism
Courtesy of NISSAN NORTH AMERICA, INC.
