ASC (Adaptive Shift Control): Component Parts Location

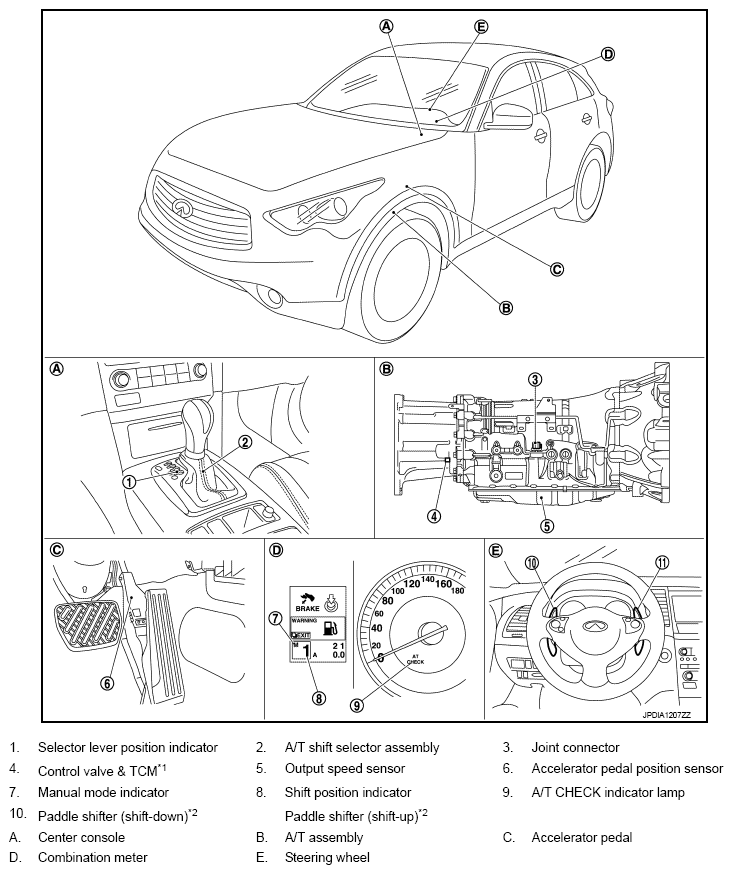

Fig 1: Adaptive Shift Control (ASC) Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

The following components are included in A/T shift selector assembly:
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
The following components are included in control valve & TCM:
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve

^* 1: Control valve & TCM is included in A/T assembly.

^* 2: With paddle shifter
