Exploded View

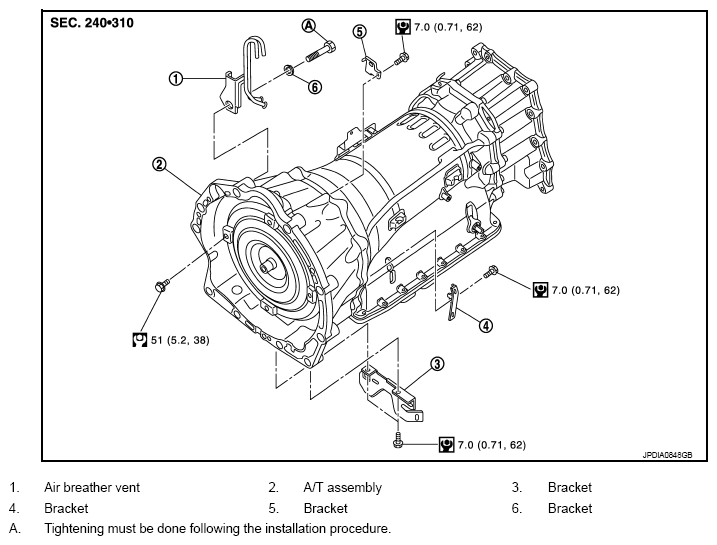

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

A: Refer to Removal and Installation .

Refer to "COMPONENTS " for symbols in the figure.
