Component Inspection (Cooling Fan Relay)

  1. CHECK COOLING FAN RELAY
    1. Turn ignition switch OFF.
    2. Remove cooling fan relay. Refer to "COMPONENT PARTS LOCATION ".
    3. Check the continuity between cooling fan relay terminals under the following conditions.
      Terminals Conditions Continuity
      3 and 5 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

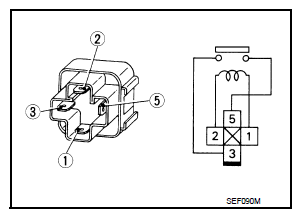

      Fig 1: Identifying Cooling Fan Relay Terminals
      G08451652Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace cooling fan relay. Refer to "COMPONENT PARTS LOCATION ".
