Component Inspection

CHECK FUEL INJECTOR

Check resistance between fuel injector terminals as follows.

Terminals	Resistance
1 and 2	11.1 - 14.5 Ω [at 10 - 60°C (60 - 140°F)]

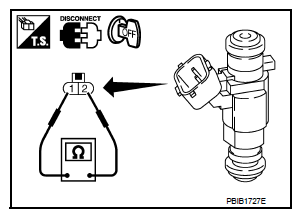

Fig 1: Checking Resistance Between Fuel Injector Connector Terminals 1 And 2

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace malfunctioning fuel injector. Refer to "REMOVAL AND INSTALLATION ".
