Component Inspection (Ignition Coil with Power Transistor)

CHECK IGNITION COIL WITH POWER TRANSISTOR-I

Turn ignition switch OFF.
Disconnect ignition coil harness connector.

Check resistance between ignition coil terminals as follows.

Terminals	Resistance [at 25°C (77°F)]
1 and 2	Except 0 or ∞Ω
1 and 3	Except 0 Ω
2 and 3	Except 0 Ω

Is the inspection result normal?

YES: GO TO 2.

NO: Replace malfunctioning ignition coil with power transistor. Refer to "REMOVAL AND INSTALLATION ".

CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION: Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse (1) in IPDM E/R (2) to release fuel pressure.
  NOTE: Do not use CONSULT to release fuel pressure, or fuel pressure applies again during the following procedure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked. Refer to "REMOVAL AND INSTALLATION ".

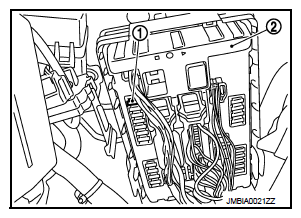

  Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
  Courtesy of NISSAN NORTH AMERICA, INC.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 - 0.66 in) between the edge of the spark plug and grounded metal portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark is generated between the spark plug and the grounded metal portion.
  Spark should be generated.
  CAUTION:
  - Do not approach to the spark plug and the ignition coil within 0.5 m (19.7 in). Be careful not to get an electrical shock while checking, because the electrical discharge voltage becomes 20 kV or more.
  - It might cause to damage the ignition coil if the gap of more than 17 mm (0.66 in) is taken.

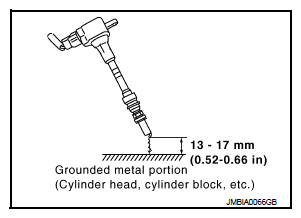

  Fig 2: Identifying Gap Between Edge Of Spark Plug And Grounded Metal Portion
  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE: When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is malfunctioning.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Replace malfunctioning ignition coil with power transistor. Refer to "REMOVAL AND INSTALLATION ".
