Component Parts Location

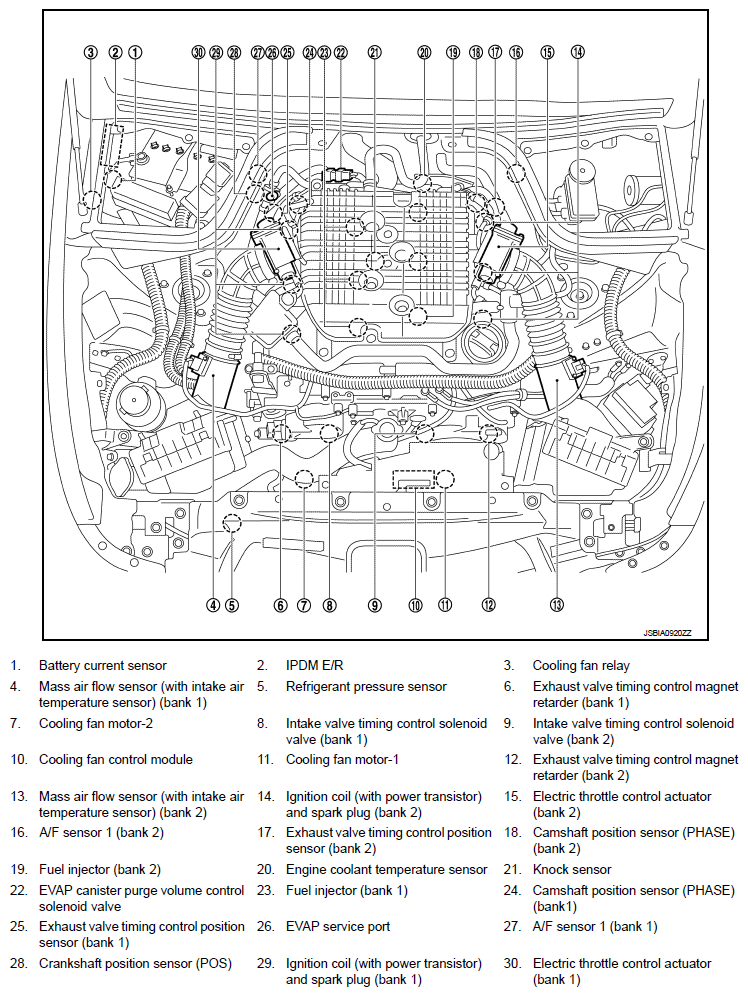

Fig 1: Evaporative Emission System Component Parts Location (1 Of 21)

G08451414

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Evaporative Emission System Component Parts Location (2 Of 21)

G08451415

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Evaporative Emission System Component Parts Location (3 Of 21)

G08451416

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Evaporative Emission System Component Parts Location (4 Of 21)

G08451417

Courtesy of NISSAN NORTH AMERICA, INC.

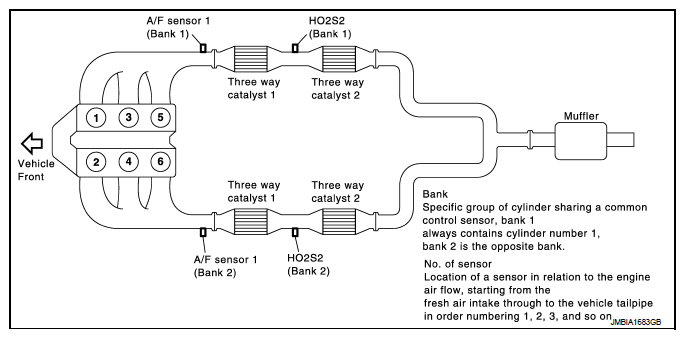

Fig 5: Evaporative Emission System Component Parts Location (5 Of 21)

G08451418

Courtesy of NISSAN NORTH AMERICA, INC.

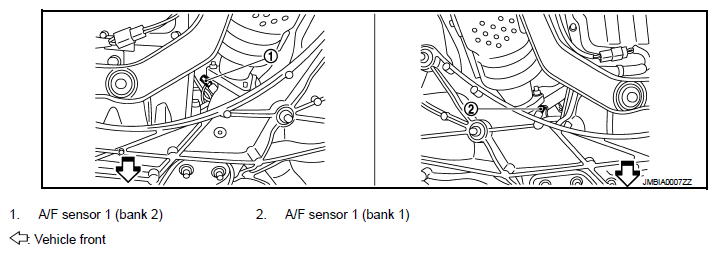

Fig 6: Evaporative Emission System Component Parts Location (6 Of 21)

G08451419

Courtesy of NISSAN NORTH AMERICA, INC.

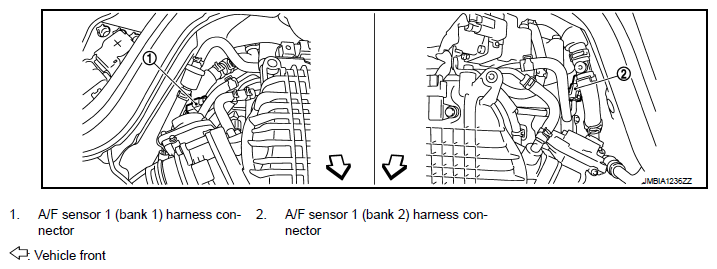

Fig 7: Evaporative Emission System Component Parts Location (7 Of 21)

G08451420

Courtesy of NISSAN NORTH AMERICA, INC.

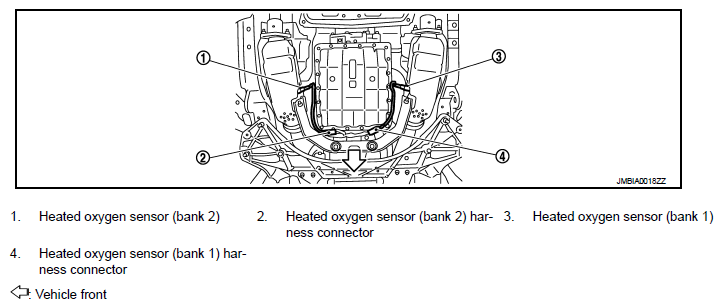

Fig 8: Evaporative Emission System Component Parts Location (8 Of 21)

G08451421

Courtesy of NISSAN NORTH AMERICA, INC.

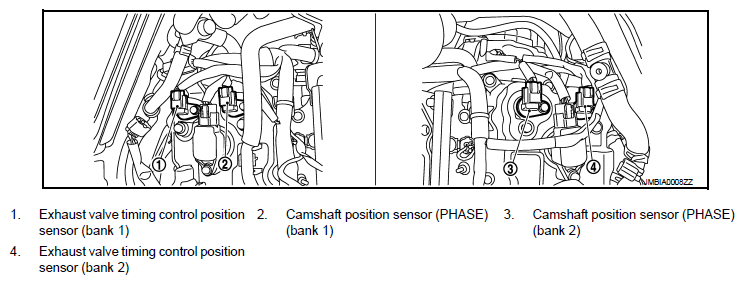

Fig 9: Evaporative Emission System Component Parts Location (9 Of 21)

G08451422

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Evaporative Emission System Component Parts Location (10 Of 21)

G08451423

Courtesy of NISSAN NORTH AMERICA, INC.

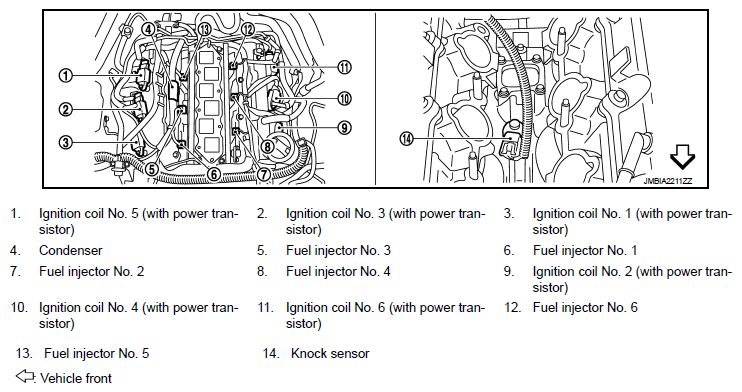

Fig 11: Evaporative Emission System Component Parts Location (11 Of 21)

G08451424

Courtesy of NISSAN NORTH AMERICA, INC.

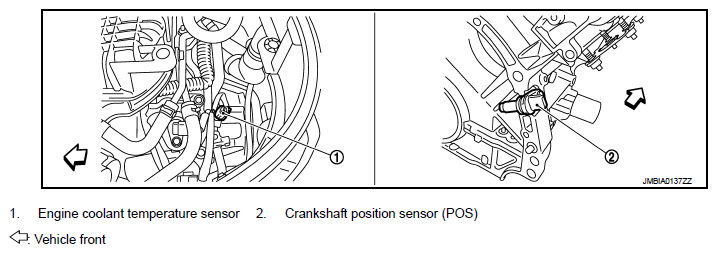

Fig 12: Evaporative Emission System Component Parts Location (12 Of 21)

G08451425

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Evaporative Emission System Component Parts Location (13 Of 21)

G08451426

Courtesy of NISSAN NORTH AMERICA, INC.

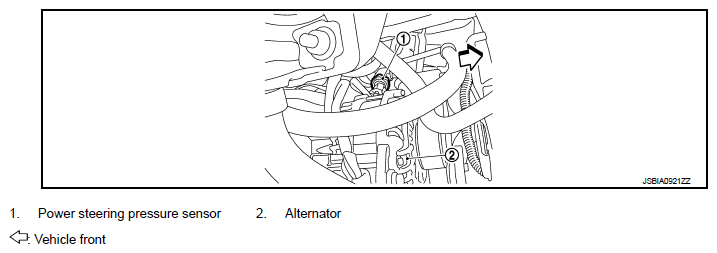

Fig 14: Evaporative Emission System Component Parts Location (14 Of 21)

G08451427

Courtesy of NISSAN NORTH AMERICA, INC.

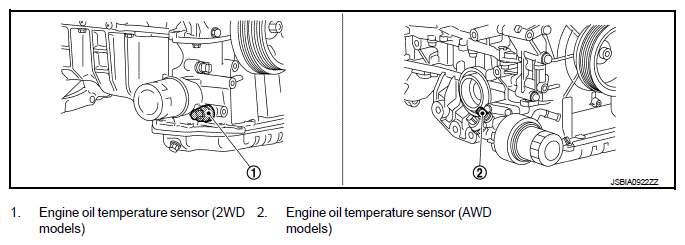

Fig 15: Evaporative Emission System Component Parts Location (15 Of 21)

G08451428

Courtesy of NISSAN NORTH AMERICA, INC.

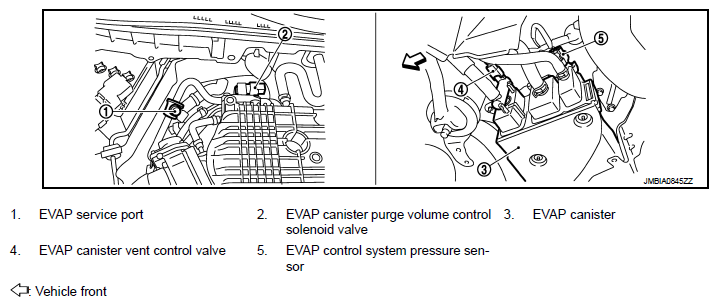

Fig 16: Evaporative Emission System Component Parts Location (16 Of 21)

G08451429

Courtesy of NISSAN NORTH AMERICA, INC.

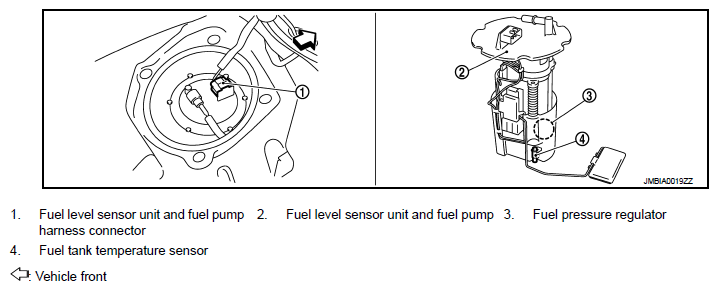

Fig 17: Evaporative Emission System Component Parts Location (17 Of 21)

G08451430

Courtesy of NISSAN NORTH AMERICA, INC.

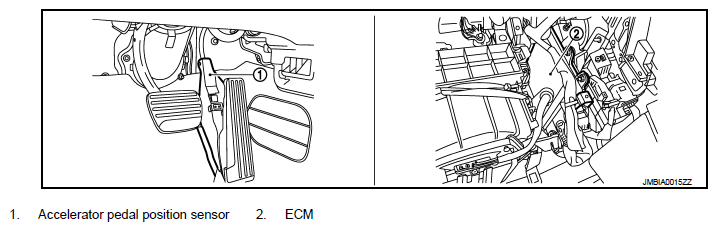

Fig 18: Evaporative Emission System Component Parts Location (18 Of 21)

G08451431

Courtesy of NISSAN NORTH AMERICA, INC.

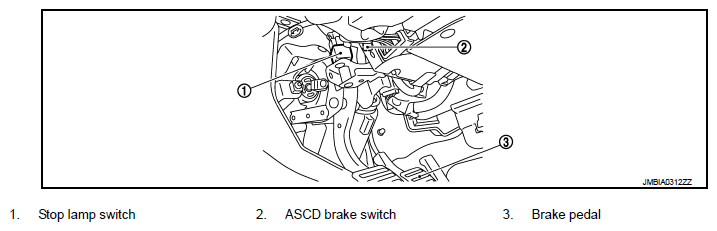

Fig 19: Evaporative Emission System Component Parts Location (19 Of 21)

G08451432

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Evaporative Emission System Component Parts Location (20 Of 21)

G08451433

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Evaporative Emission System Component Parts Location (21 Of 21)

G08451434

Courtesy of NISSAN NORTH AMERICA, INC.
