Component Parts Location

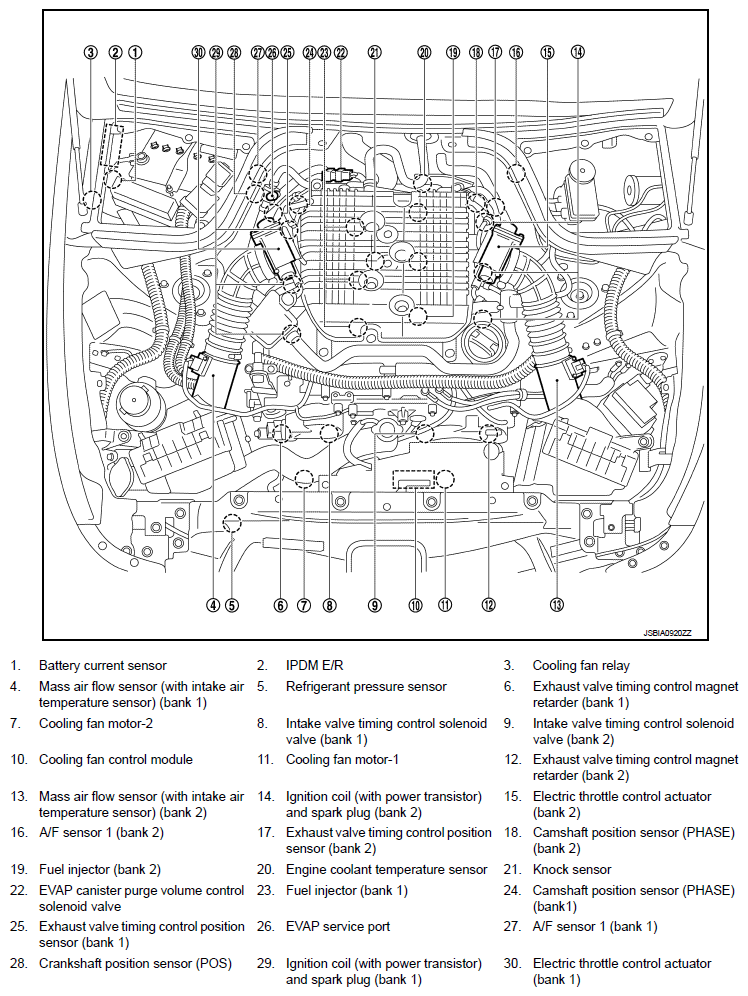

Fig 1: Exhaust Valve Timing Control Component Parts Location (1 Of 21)

G08451437

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Exhaust Valve Timing Control Component Parts Location (2 Of 21)

G08451438

Courtesy of NISSAN NORTH AMERICA, INC.

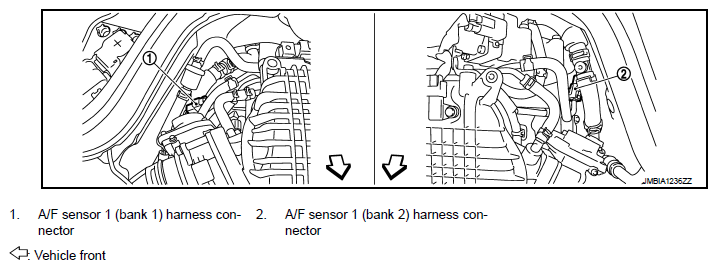

Fig 3: Exhaust Valve Timing Control Component Parts Location (3 Of 21)

G08451439

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Exhaust Valve Timing Control Component Parts Location (4 Of 21)

G08451440

Courtesy of NISSAN NORTH AMERICA, INC.

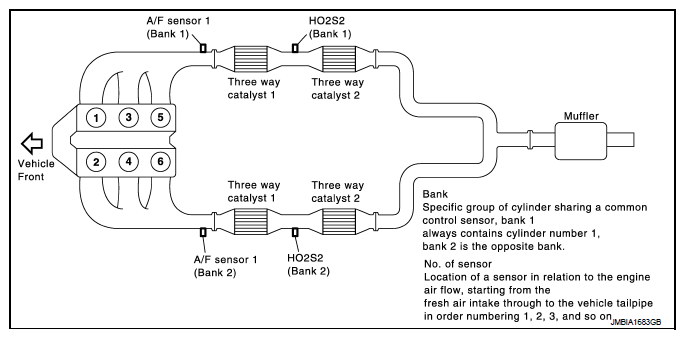

Fig 5: Exhaust Valve Timing Control Component Parts Location (5 Of 21)

G08451441

Courtesy of NISSAN NORTH AMERICA, INC.

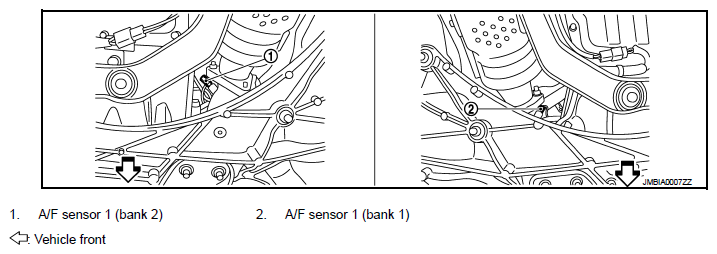

Fig 6: Exhaust Valve Timing Control Component Parts Location (6 Of 21)

G08451442

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Exhaust Valve Timing Control Component Parts Location (7 Of 21)

G08451443

Courtesy of NISSAN NORTH AMERICA, INC.

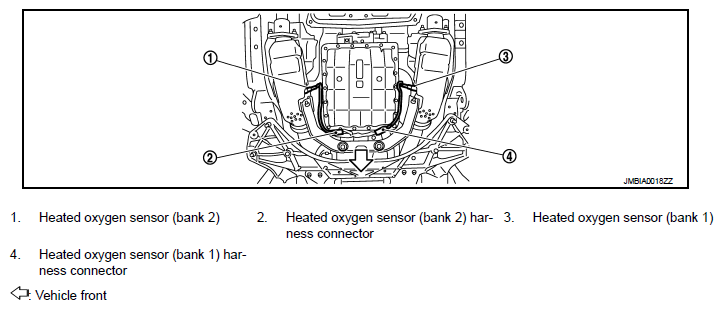

Fig 8: Exhaust Valve Timing Control Component Parts Location (8 Of 21)

G08451444

Courtesy of NISSAN NORTH AMERICA, INC.

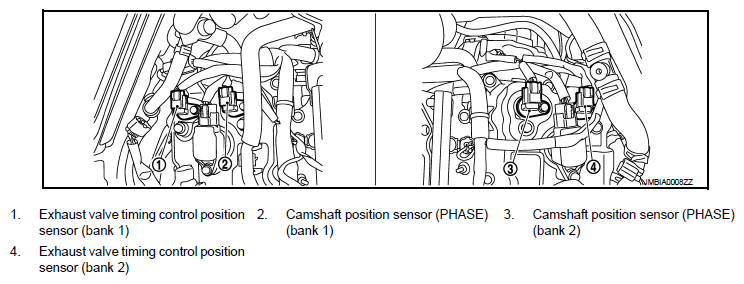

Fig 9: Exhaust Valve Timing Control Component Parts Location (9 Of 21)

G08451445

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Exhaust Valve Timing Control Component Parts Location (10 Of 21)

G08451446

Courtesy of NISSAN NORTH AMERICA, INC.

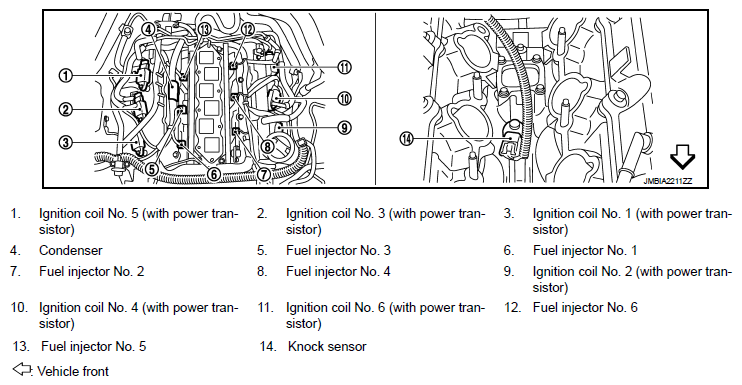

Fig 11: Exhaust Valve Timing Control Component Parts Location (11 Of 21)

G08451447

Courtesy of NISSAN NORTH AMERICA, INC.

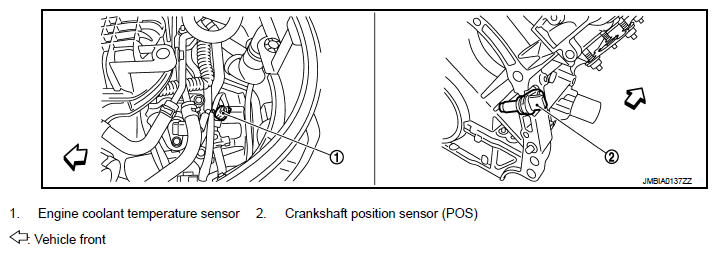

Fig 12: Exhaust Valve Timing Control Component Parts Location (12 Of 21)

G08451448

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Exhaust Valve Timing Control Component Parts Location (13 Of 21)

G08451449

Courtesy of NISSAN NORTH AMERICA, INC.

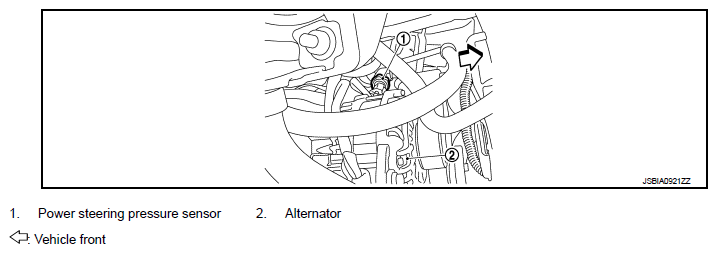

Fig 14: Exhaust Valve Timing Control Component Parts Location (14 Of 21)

G08451450

Courtesy of NISSAN NORTH AMERICA, INC.

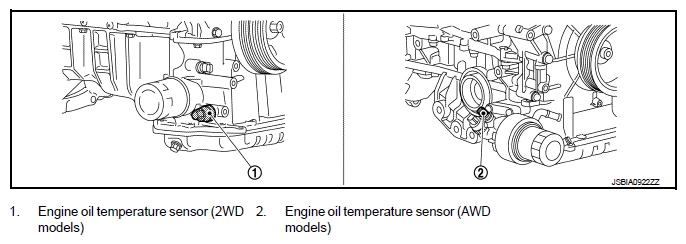

Fig 15: Exhaust Valve Timing Control Component Parts Location (15 Of 21)

G08451451

Courtesy of NISSAN NORTH AMERICA, INC.

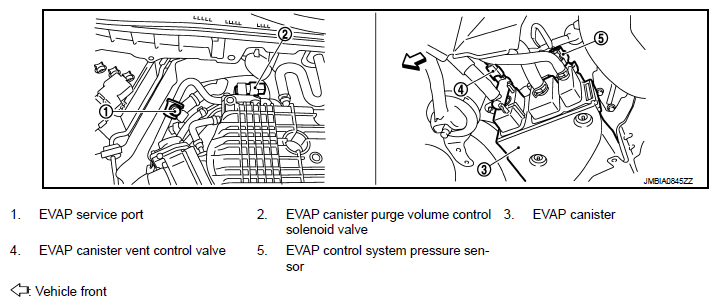

Fig 16: Exhaust Valve Timing Control Component Parts Location (16 Of 21)

G08451452

Courtesy of NISSAN NORTH AMERICA, INC.

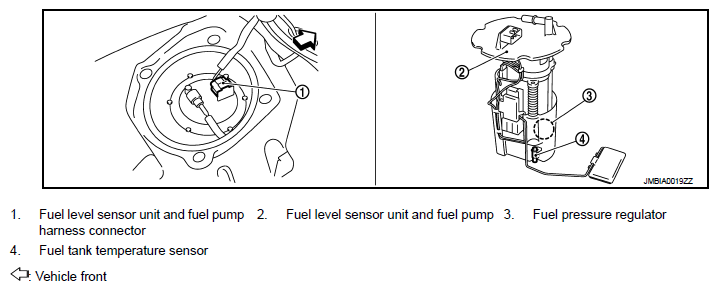

Fig 17: Exhaust Valve Timing Control Component Parts Location (17 Of 21)

G08451453

Courtesy of NISSAN NORTH AMERICA, INC.

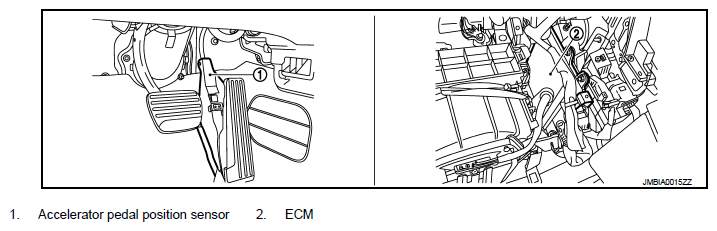

Fig 18: Exhaust Valve Timing Control Component Parts Location (18 Of 21)

G08451454

Courtesy of NISSAN NORTH AMERICA, INC.

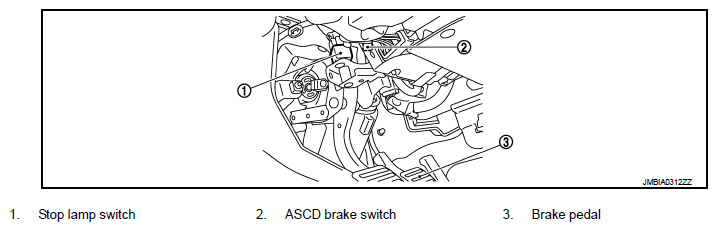

Fig 19: Exhaust Valve Timing Control Component Parts Location (19 Of 21)

G08451455

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Exhaust Valve Timing Control Component Parts Location (20 Of 21)

G08451456

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Exhaust Valve Timing Control Component Parts Location (21 Of 21)

G08451457

Courtesy of NISSAN NORTH AMERICA, INC.
