Component Parts Location

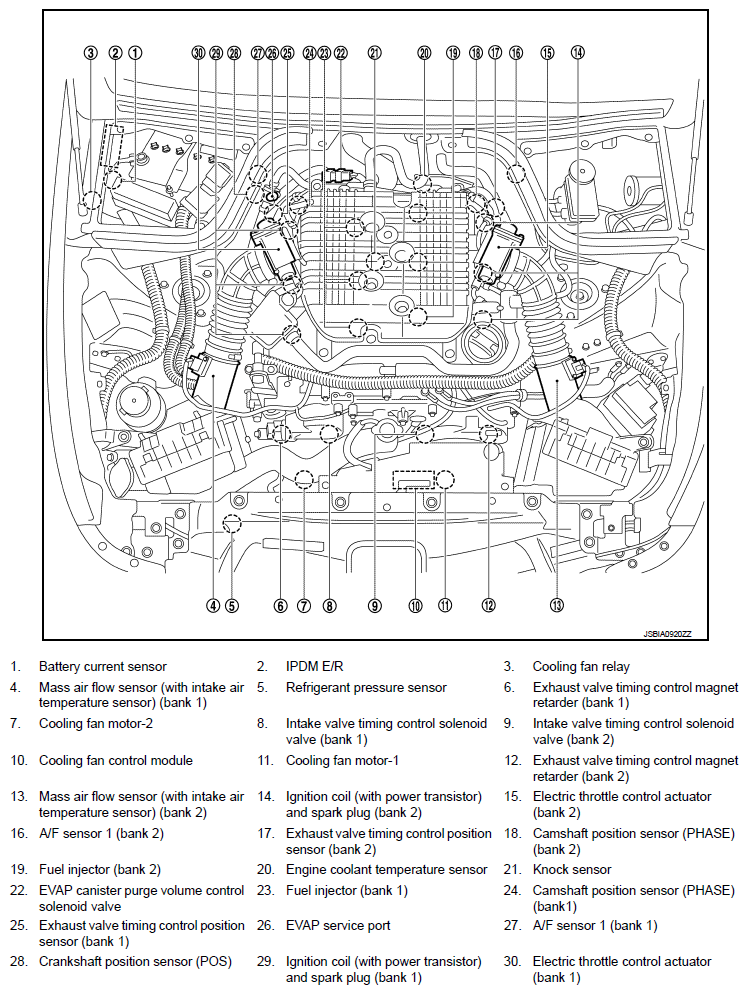

Fig 1: Fuel Filler Cap Warning System Component Parts Location (1 Of 21)

G08451459

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Fuel Filler Cap Warning System Component Parts Location (2 Of 21)

G08451460

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Fuel Filler Cap Warning System Component Parts Location (3 Of 21)

G08451461

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Fuel Filler Cap Warning System Component Parts Location (4 Of 21)

G08451462

Courtesy of NISSAN NORTH AMERICA, INC.

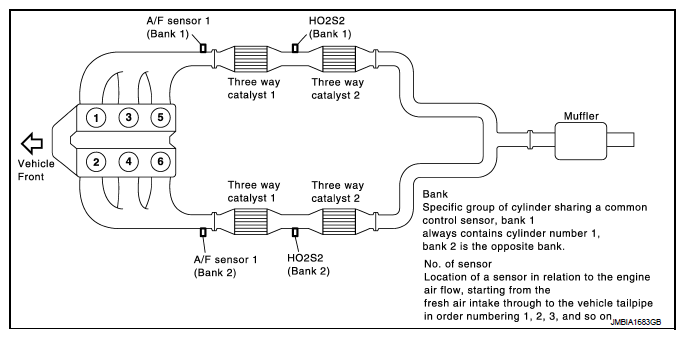

Fig 5: Fuel Filler Cap Warning System Component Parts Location (5 Of 21)

G08451463

Courtesy of NISSAN NORTH AMERICA, INC.

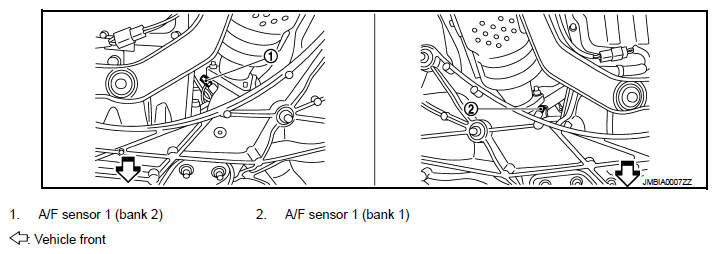

Fig 6: Fuel Filler Cap Warning System Component Parts Location (6 Of 21)

G08451464

Courtesy of NISSAN NORTH AMERICA, INC.

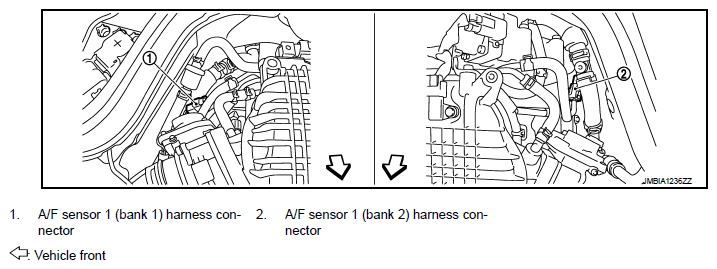

Fig 7: Fuel Filler Cap Warning System Component Parts Location (7 Of 21)

G08451465

Courtesy of NISSAN NORTH AMERICA, INC.

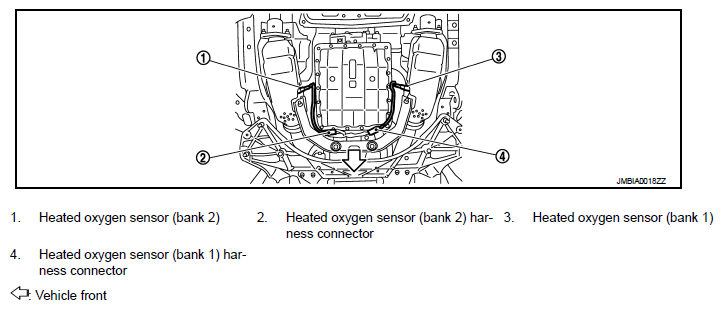

Fig 8: Fuel Filler Cap Warning System Component Parts Location (8 Of 21)

G08451466

Courtesy of NISSAN NORTH AMERICA, INC.

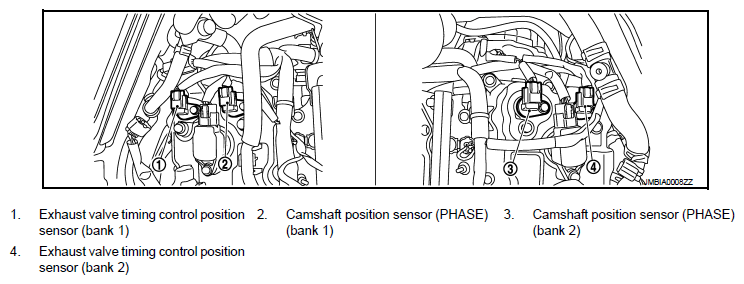

Fig 9: Fuel Filler Cap Warning System Component Parts Location (9 Of 21)

G08451467

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Fuel Filler Cap Warning System Component Parts Location (10 Of 21)

G08451468

Courtesy of NISSAN NORTH AMERICA, INC.

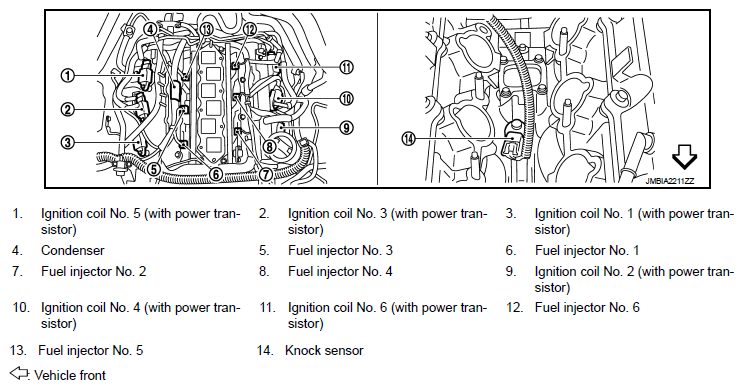

Fig 11: Fuel Filler Cap Warning System Component Parts Location (11 Of 21)

G08451469

Courtesy of NISSAN NORTH AMERICA, INC.

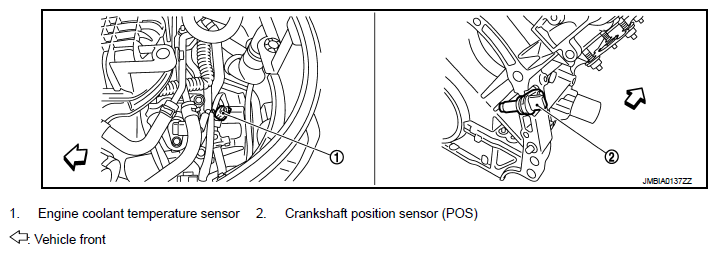

Fig 12: Fuel Filler Cap Warning System Component Parts Location (12 Of 21)

G08451470

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Fuel Filler Cap Warning System Component Parts Location (13 Of 21)

G08451471

Courtesy of NISSAN NORTH AMERICA, INC.

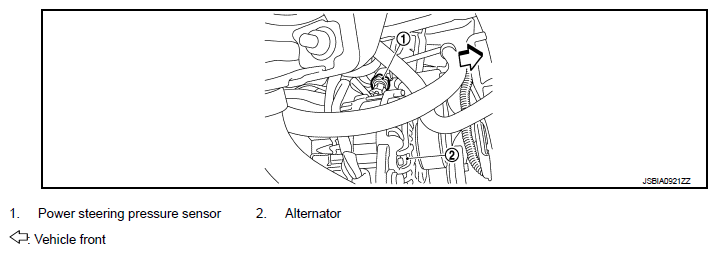

Fig 14: Fuel Filler Cap Warning System Component Parts Location (14 Of 21)

G08451472

Courtesy of NISSAN NORTH AMERICA, INC.

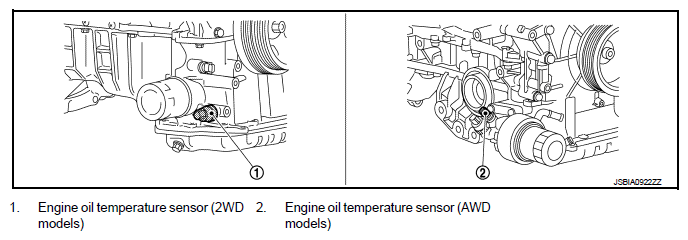

Fig 15: Fuel Filler Cap Warning System Component Parts Location (15 Of 21)

G08451473

Courtesy of NISSAN NORTH AMERICA, INC.

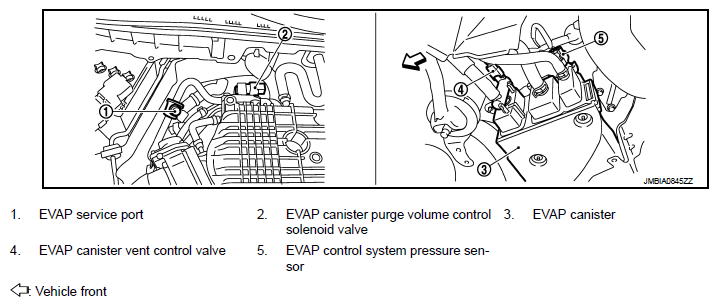

Fig 16: Fuel Filler Cap Warning System Component Parts Location (16 Of 21)

G08451474

Courtesy of NISSAN NORTH AMERICA, INC.

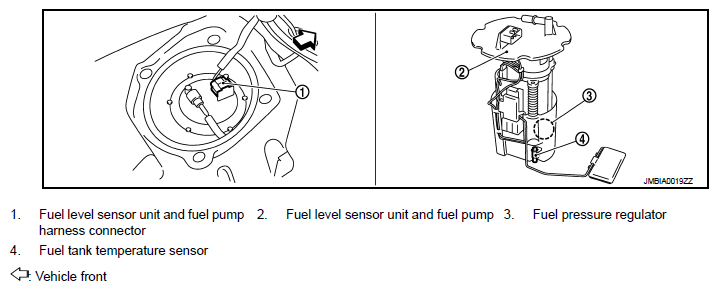

Fig 17: Fuel Filler Cap Warning System Component Parts Location (17 Of 21)

G08451475

Courtesy of NISSAN NORTH AMERICA, INC.

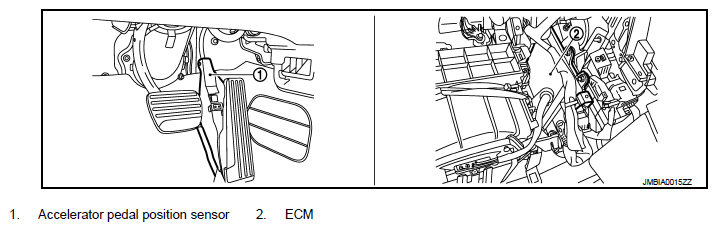

Fig 18: Fuel Filler Cap Warning System Component Parts Location (18 Of 21)

G08451476

Courtesy of NISSAN NORTH AMERICA, INC.

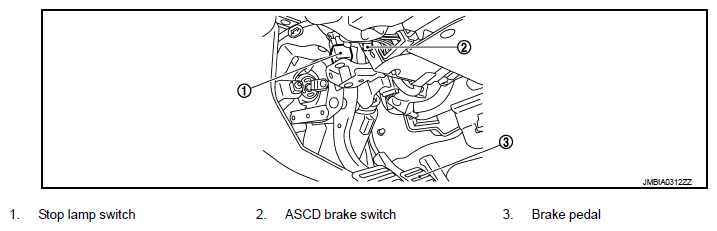

Fig 19: Fuel Filler Cap Warning System Component Parts Location (19 Of 21)

G08451477

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Fuel Filler Cap Warning System Component Parts Location (20 Of 21)

G08451478

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Fuel Filler Cap Warning System Component Parts Location (21 Of 21)

G08451479

Courtesy of NISSAN NORTH AMERICA, INC.
