INTELLIGENT KEY SYSTEM/READY SET FUNCTION : Schematic
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

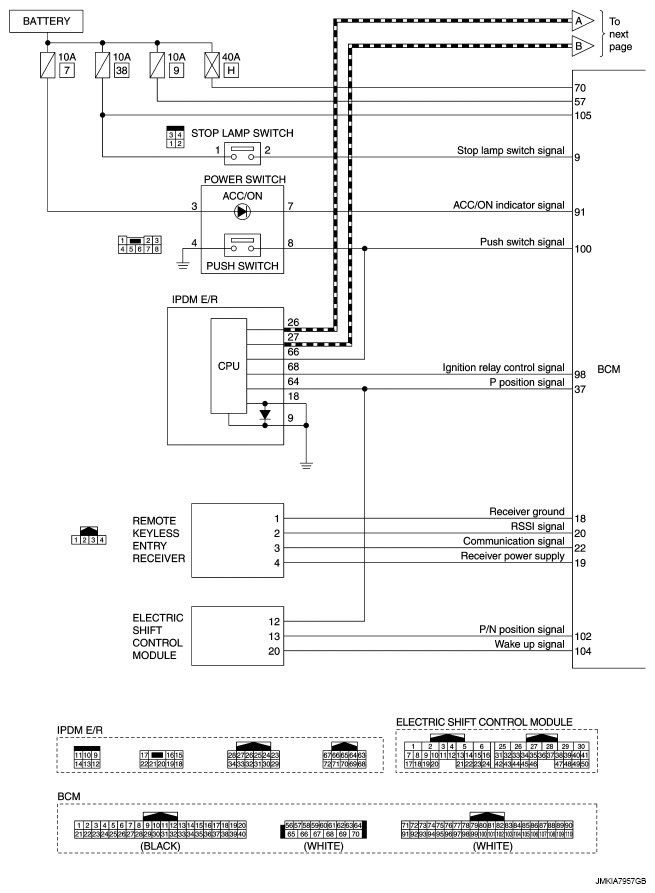

Fig 1: Intelligent Key System/Ready Set Function - Schematic (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

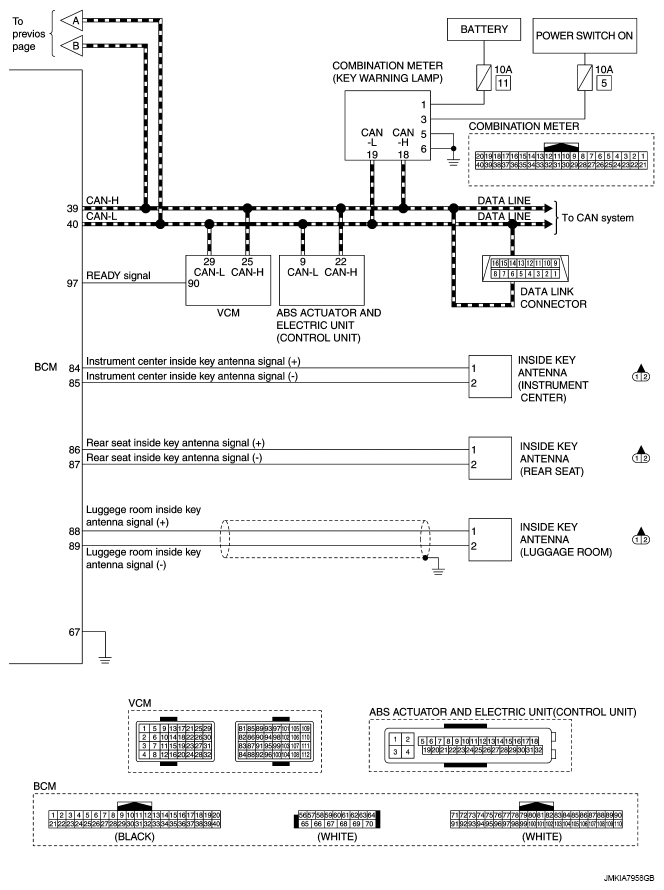

Fig 2: Intelligent Key System/Ready Set Function - Schematic (2 Of 2)
