Overall Sequence

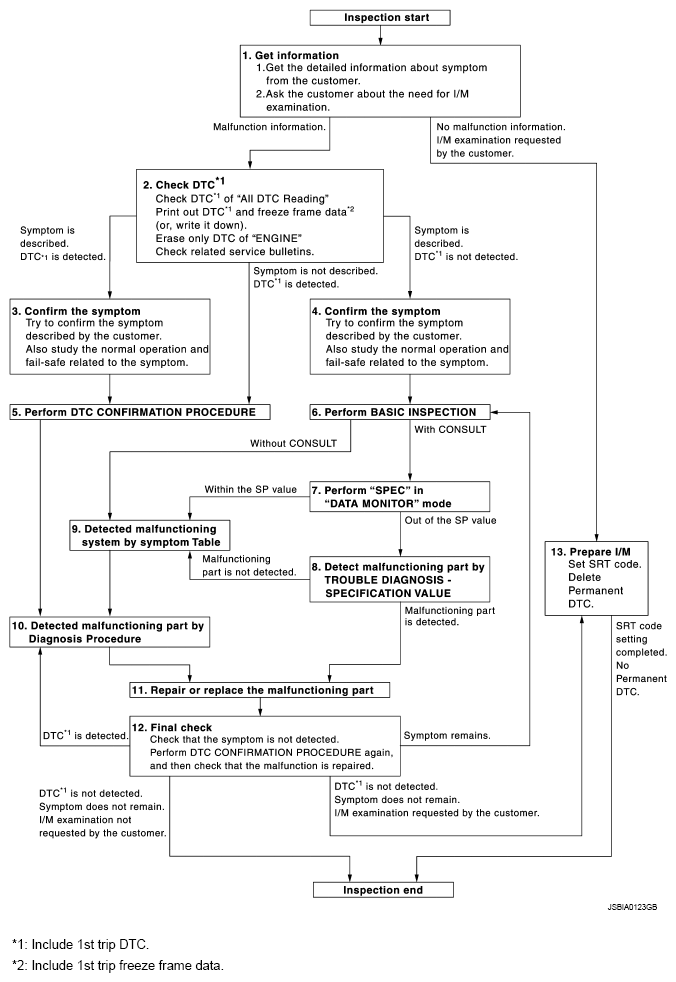

Fig 1: Engine Control System Diagnosis And Repair Work Flow Chart (VQ25HR For USA And Canada)
G08451259Courtesy of NISSAN NORTH AMERICA, INC.
