Component Parts Location

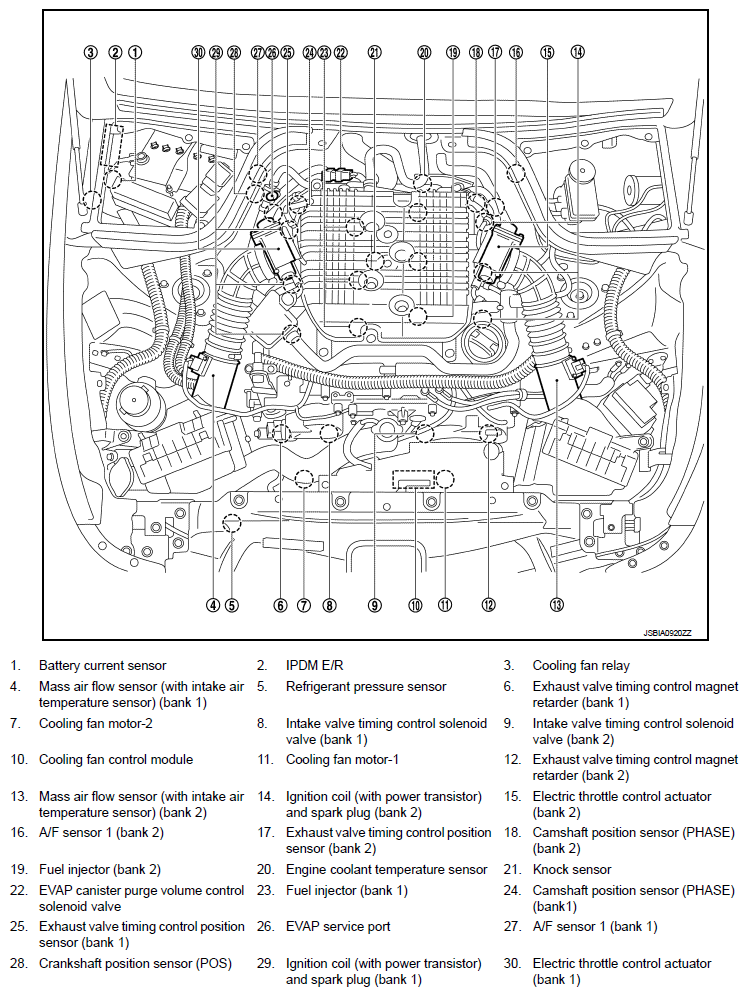

Fig 1: Air Conditioning Cut Control System Component Parts Location (1 Of 21)

G08451347

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Air Conditioning Cut Control System Component Parts Location (2 Of 21)

G08451348

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Conditioning Cut Control System Component Parts Location (3 Of 21)

G08451349

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Air Conditioning Cut Control System Component Parts Location (4 Of 21)

G08451350

Courtesy of NISSAN NORTH AMERICA, INC.

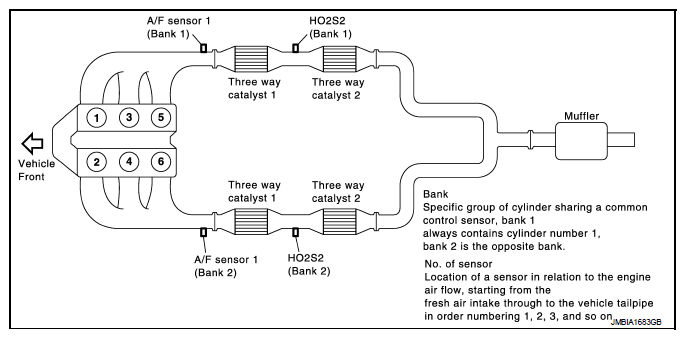

Fig 5: Air Conditioning Cut Control System Component Parts Location (5 Of 21)

G08451351

Courtesy of NISSAN NORTH AMERICA, INC.

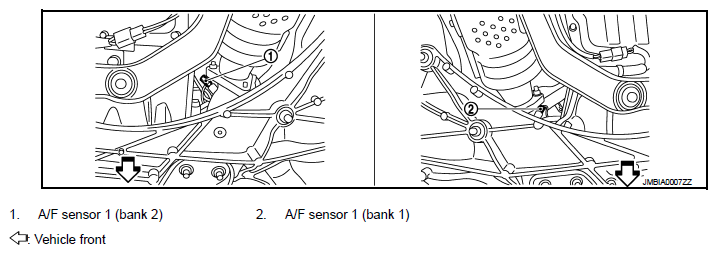

Fig 6: Air Conditioning Cut Control System Component Parts Location (6 Of 21)

G08451352

Courtesy of NISSAN NORTH AMERICA, INC.

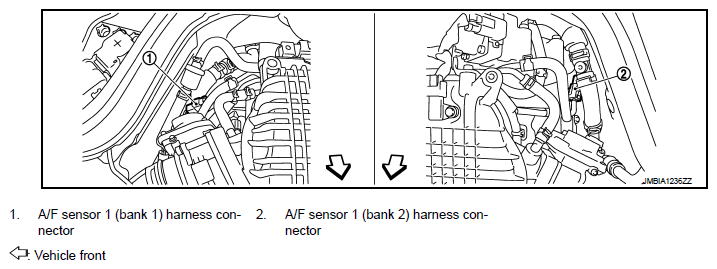

Fig 7: Air Conditioning Cut Control System Component Parts Location (7 Of 21)

G08451353

Courtesy of NISSAN NORTH AMERICA, INC.

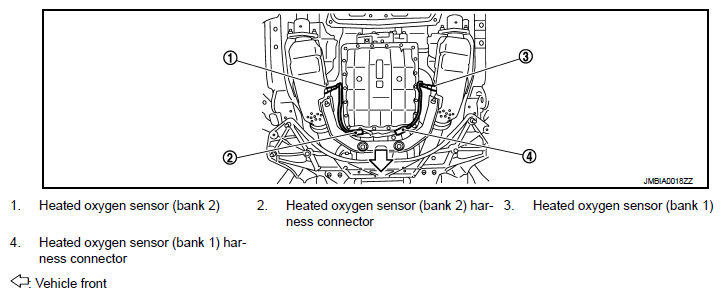

Fig 8: Air Conditioning Cut Control System Component Parts Location (8 Of 21)

G08451354

Courtesy of NISSAN NORTH AMERICA, INC.

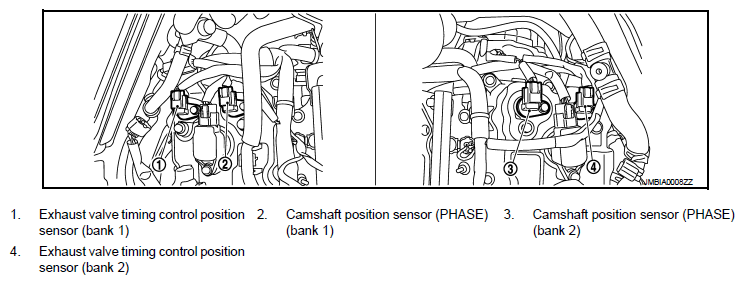

Fig 9: Air Conditioning Cut Control System Component Parts Location (9 Of 21)

G08451355

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Air Conditioning Cut Control System Component Parts Location (10 Of 21)

G08451356

Courtesy of NISSAN NORTH AMERICA, INC.

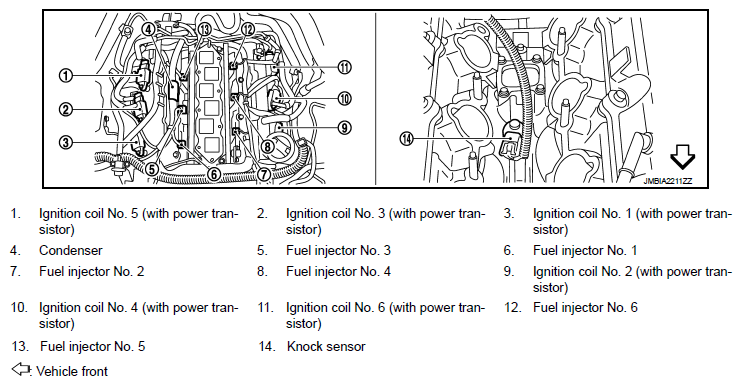

Fig 11: Air Conditioning Cut Control System Component Parts Location (11 Of 21)

G08451357

Courtesy of NISSAN NORTH AMERICA, INC.

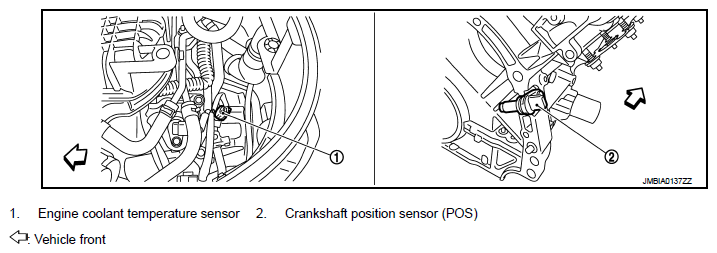

Fig 12: Air Conditioning Cut Control System Component Parts Location (12 Of 21)

G08451358

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Air Conditioning Cut Control System Component Parts Location (13 Of 21)

G08451359

Courtesy of NISSAN NORTH AMERICA, INC.

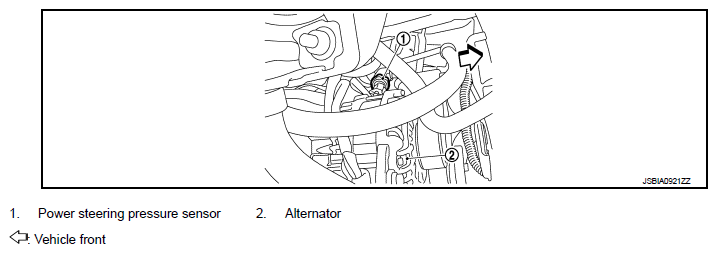

Fig 14: Air Conditioning Cut Control System Component Parts Location (14 Of 21)

G08451360

Courtesy of NISSAN NORTH AMERICA, INC.

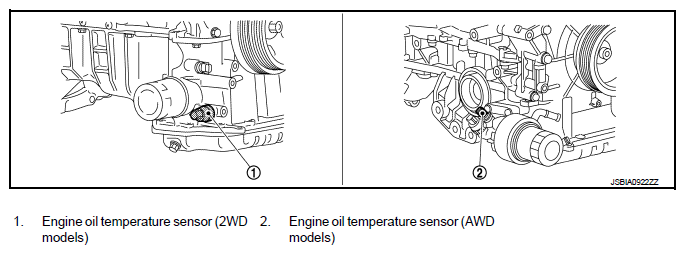

Fig 15: Air Conditioning Cut Control System Component Parts Location (15 Of 21)

G08451361

Courtesy of NISSAN NORTH AMERICA, INC.

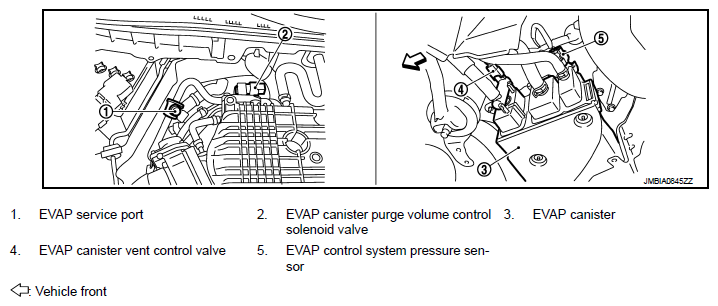

Fig 16: Air Conditioning Cut Control System Component Parts Location (16 Of 21)

G08451362

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control System Component Parts Location (17 Of 21)

G08451363

Courtesy of NISSAN NORTH AMERICA, INC.

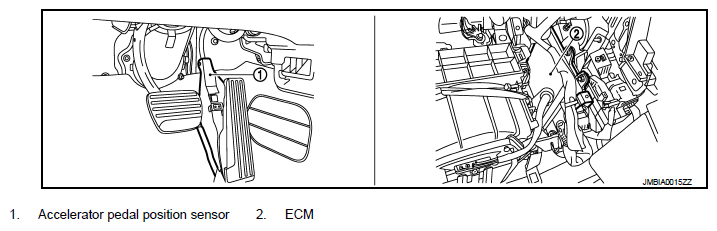

Fig 18: Air Conditioning Cut Control System Component Parts Location (18 Of 21)

G08451364

Courtesy of NISSAN NORTH AMERICA, INC.

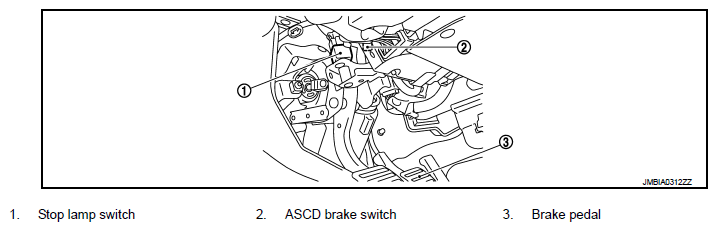

Fig 19: Air Conditioning Cut Control System Component Parts Location (19 Of 21)

G08451365

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Air Conditioning Cut Control System Component Parts Location (20 Of 21)

G08451366

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Air Conditioning Cut Control System Component Parts Location (21 Of 21)

G08451367

Courtesy of NISSAN NORTH AMERICA, INC.
