Component Parts Location

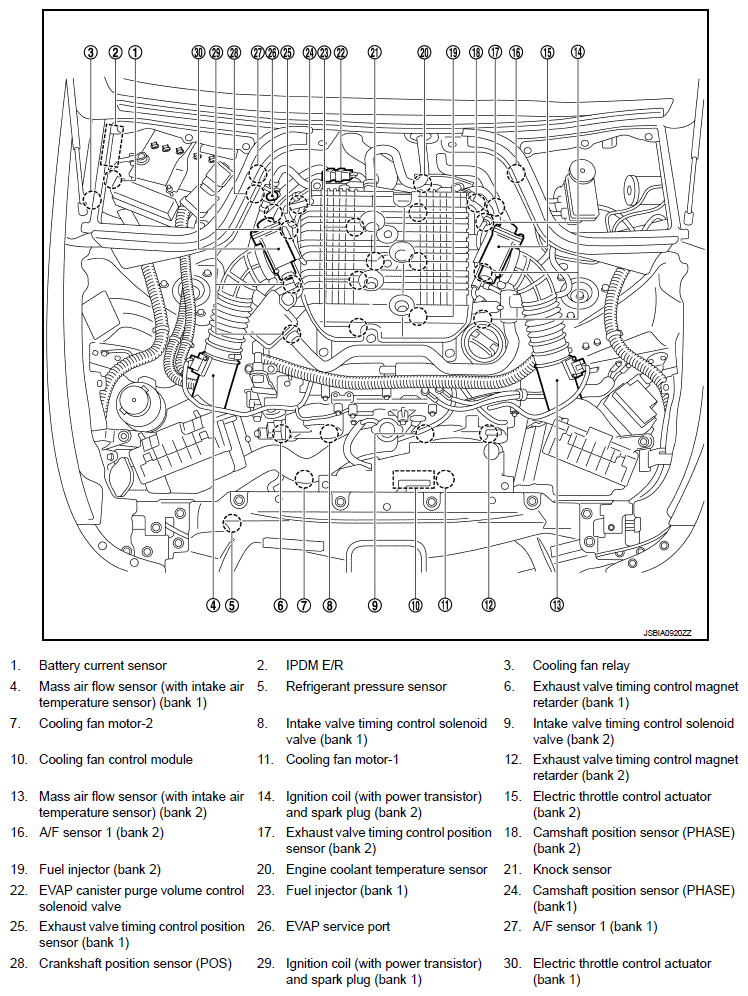

Fig 1: Automatic Speed Control Device Component Parts Location (1 Of 21)

G08451369

Courtesy of NISSAN NORTH AMERICA, INC.

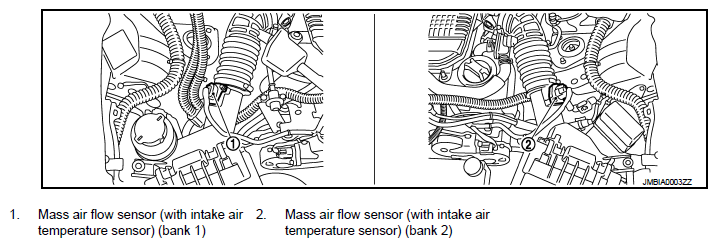

Fig 2: Automatic Speed Control Device Component Parts Location (2 Of 21)

G08451370

Courtesy of NISSAN NORTH AMERICA, INC.

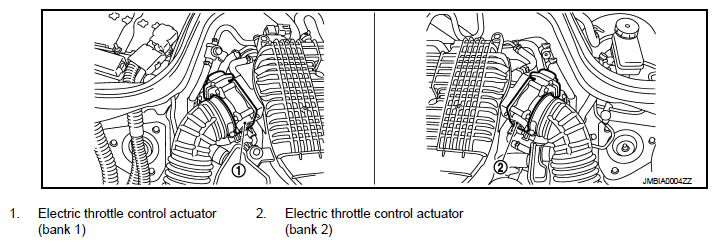

Fig 3: Automatic Speed Control Device Component Parts Location (3 Of 21)

G08451371

Courtesy of NISSAN NORTH AMERICA, INC.

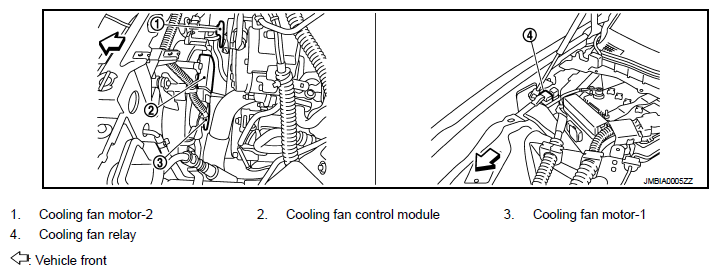

Fig 4: Automatic Speed Control Device Component Parts Location (4 Of 21)

G08451372

Courtesy of NISSAN NORTH AMERICA, INC.

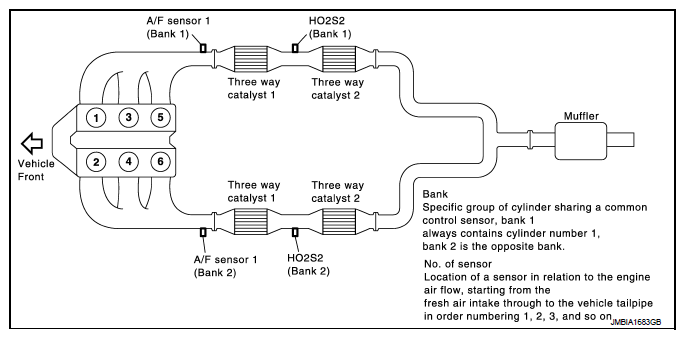

Fig 5: Automatic Speed Control Device Component Parts Location (5 Of 21)

G08451373

Courtesy of NISSAN NORTH AMERICA, INC.

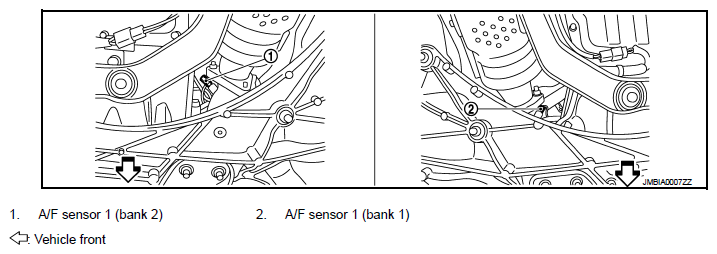

Fig 6: Automatic Speed Control Device Component Parts Location (6 Of 21)

G08451374

Courtesy of NISSAN NORTH AMERICA, INC.

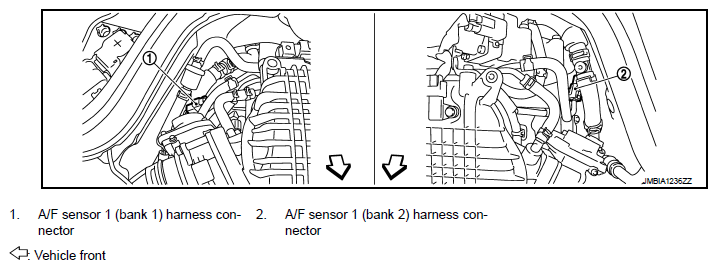

Fig 7: Automatic Speed Control Device Component Parts Location (7 Of 21)

G08451375

Courtesy of NISSAN NORTH AMERICA, INC.

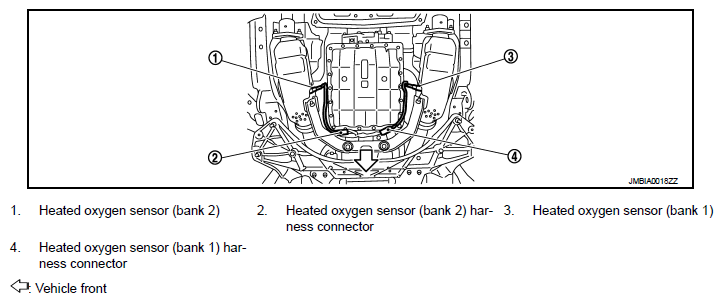

Fig 8: Automatic Speed Control Device Component Parts Location (8 Of 21)

G08451376

Courtesy of NISSAN NORTH AMERICA, INC.

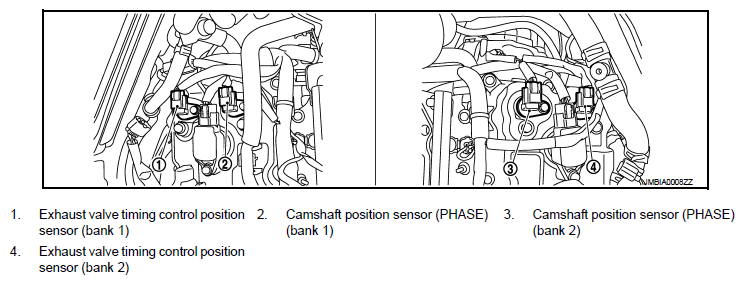

Fig 9: Automatic Speed Control Device Component Parts Location (9 Of 21)

G08451377

Courtesy of NISSAN NORTH AMERICA, INC.

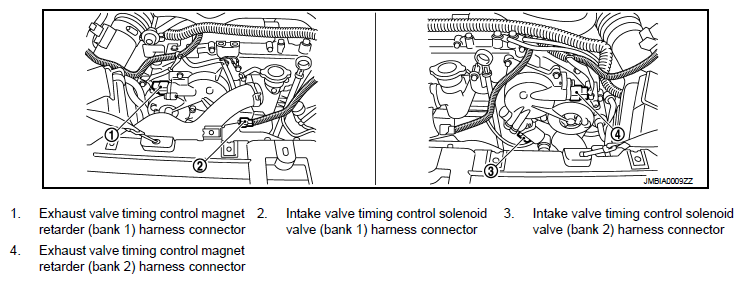

Fig 10: Automatic Speed Control Device Component Parts Location (10 Of 21)

G08451378

Courtesy of NISSAN NORTH AMERICA, INC.

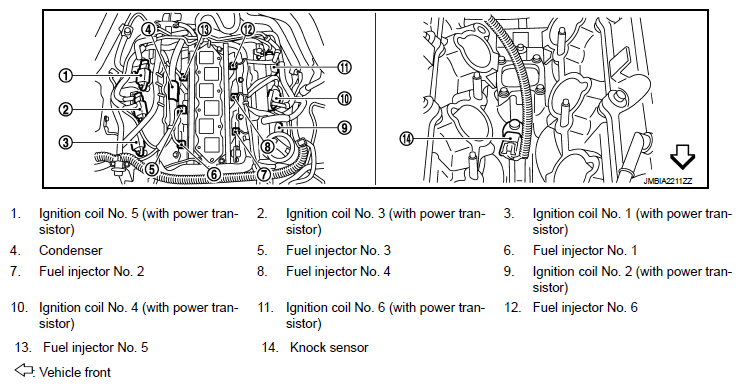

Fig 11: Automatic Speed Control Device Component Parts Location (11 Of 21)

G08451379

Courtesy of NISSAN NORTH AMERICA, INC.

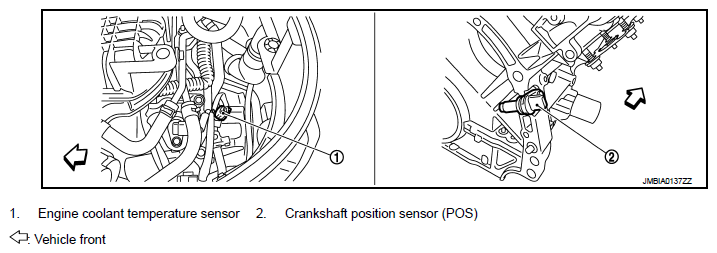

Fig 12: Automatic Speed Control Device Component Parts Location (12 Of 21)

G08451380

Courtesy of NISSAN NORTH AMERICA, INC.

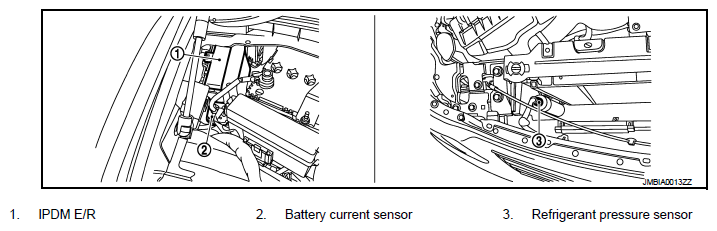

Fig 13: Automatic Speed Control Device Component Parts Location (13 Of 21)

G08451381

Courtesy of NISSAN NORTH AMERICA, INC.

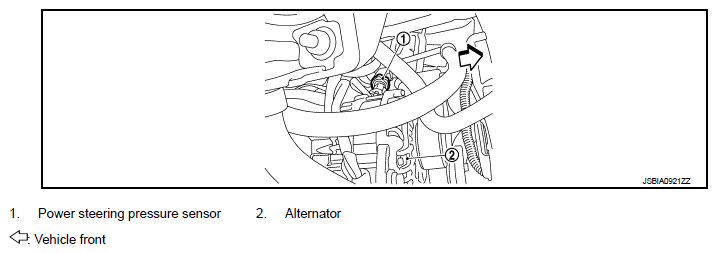

Fig 14: Automatic Speed Control Device Component Parts Location (14 Of 21)

G08451382

Courtesy of NISSAN NORTH AMERICA, INC.

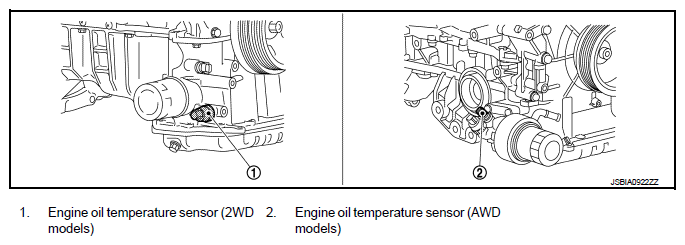

Fig 15: Automatic Speed Control Device Component Parts Location (15 Of 21)

G08451383

Courtesy of NISSAN NORTH AMERICA, INC.

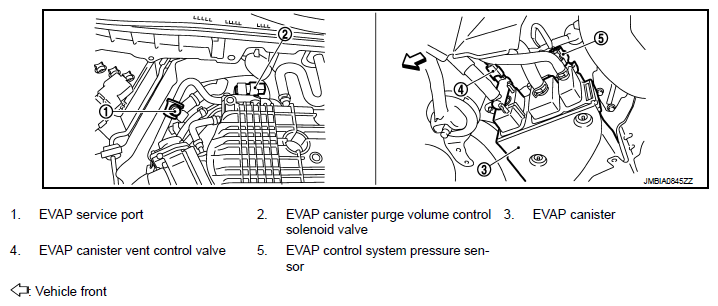

Fig 16: Automatic Speed Control Device Component Parts Location (16 Of 21)

G08451384

Courtesy of NISSAN NORTH AMERICA, INC.

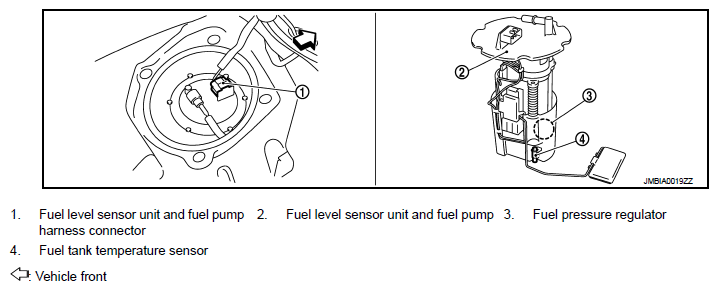

Fig 17: Automatic Speed Control Device Component Parts Location (17 Of 21)

G08451385

Courtesy of NISSAN NORTH AMERICA, INC.

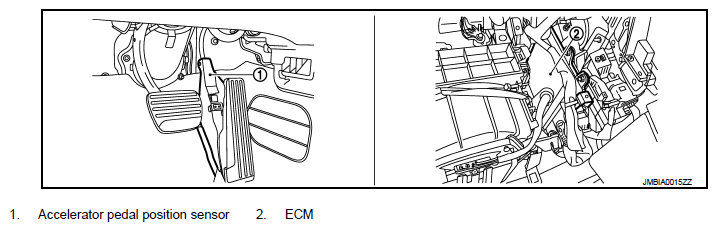

Fig 18: Automatic Speed Control Device Component Parts Location (18 Of 21)

G08451386

Courtesy of NISSAN NORTH AMERICA, INC.

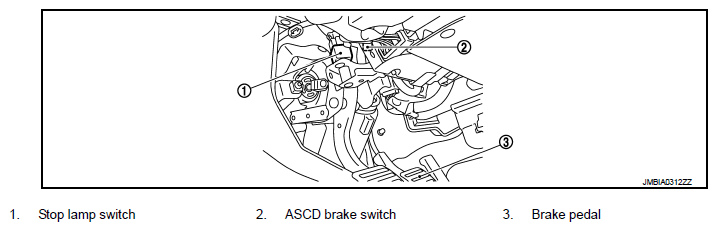

Fig 19: Automatic Speed Control Device Component Parts Location (19 Of 21)

G08451387

Courtesy of NISSAN NORTH AMERICA, INC.

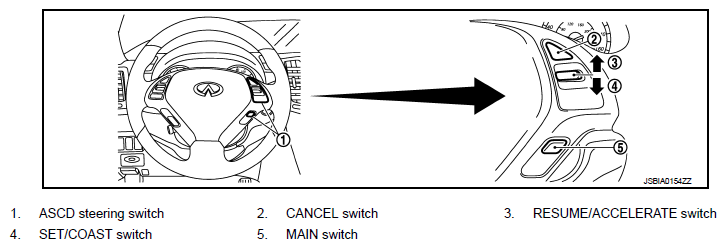

Fig 20: Automatic Speed Control Device Component Parts Location (20 Of 21)

G08451388

Courtesy of NISSAN NORTH AMERICA, INC.

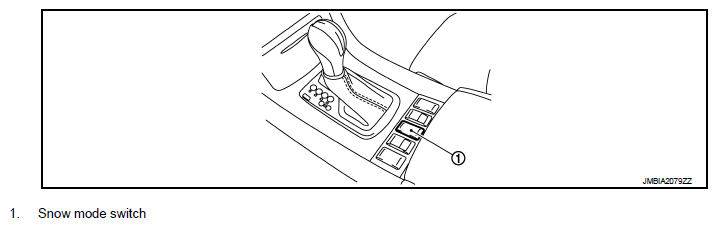

Fig 21: Automatic Speed Control Device Component Parts Location (21 Of 21)

G08451389

Courtesy of NISSAN NORTH AMERICA, INC.
