Component Parts Location

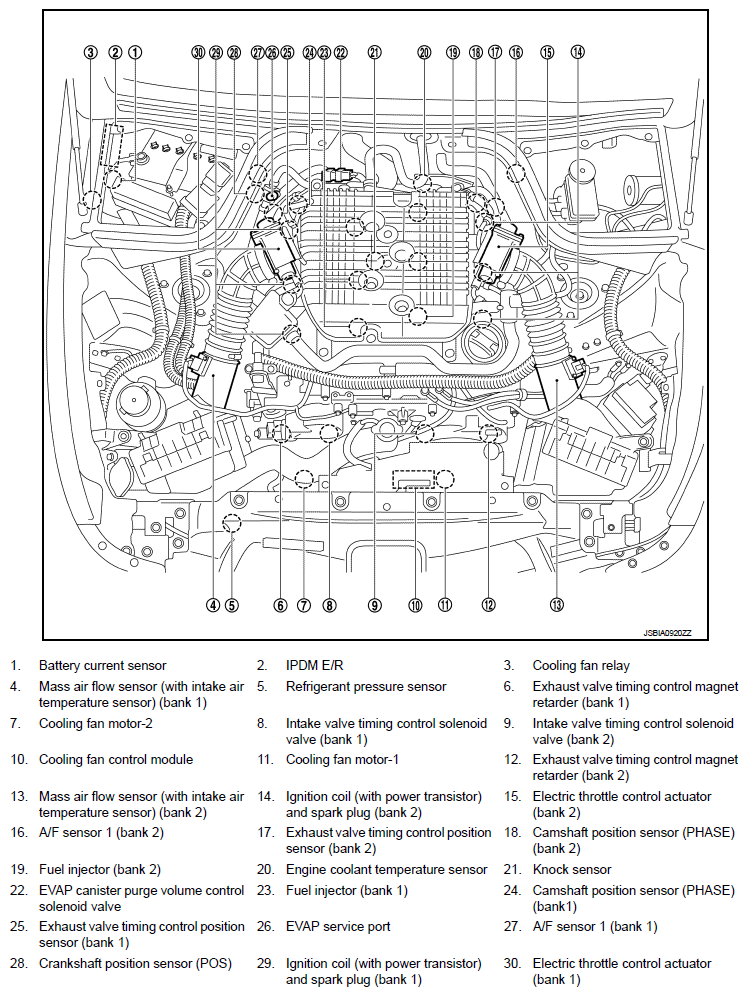

Fig 1: Cooling Fan Control System Component Parts Location (1 Of 21)

G08451391

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Cooling Fan Control System Component Parts Location (2 Of 21)

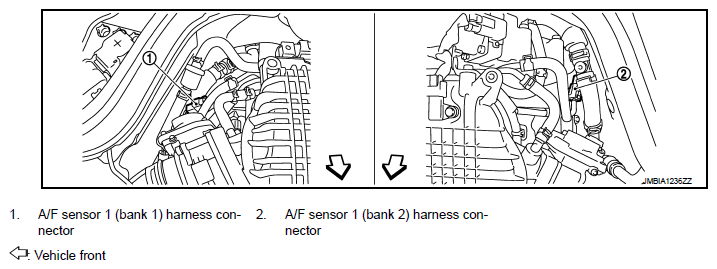

G08451392

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Cooling Fan Control System Component Parts Location (3 Of 21)

G08451393

Courtesy of NISSAN NORTH AMERICA, INC.

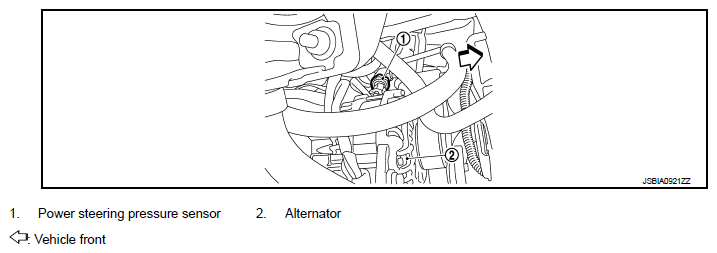

Fig 4: Cooling Fan Control System Component Parts Location (4 Of 21)

G08451394

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Cooling Fan Control System Component Parts Location (5 Of 21)

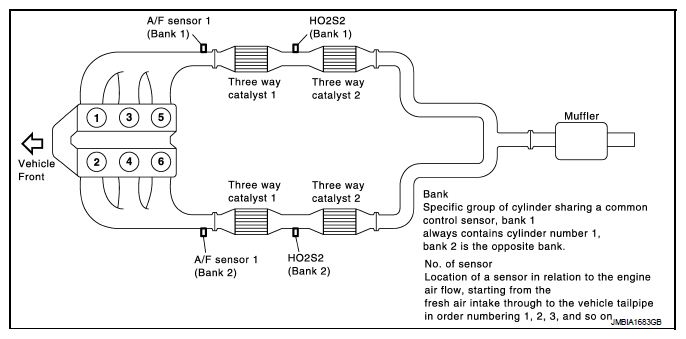

G08451395

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Cooling Fan Control System Component Parts Location (6 Of 21)

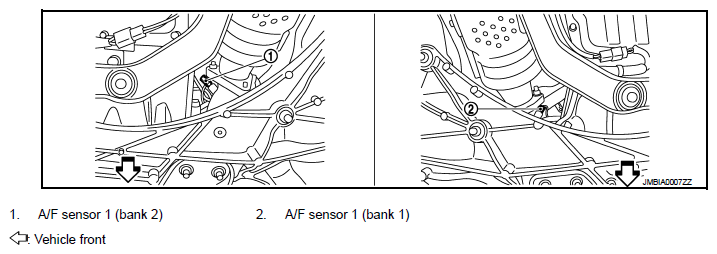

G08451396

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control System Component Parts Location (7 Of 21)

G08451397

Courtesy of NISSAN NORTH AMERICA, INC.

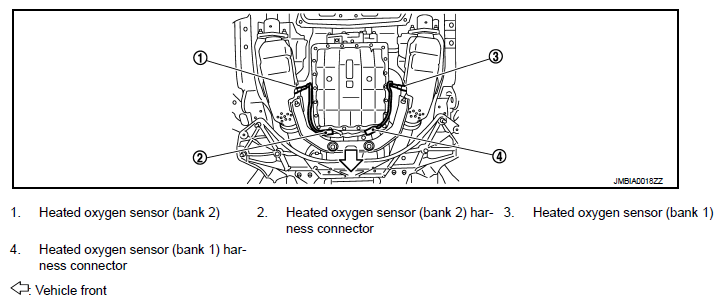

Fig 8: Cooling Fan Control System Component Parts Location (8 Of 21)

G08451398

Courtesy of NISSAN NORTH AMERICA, INC.

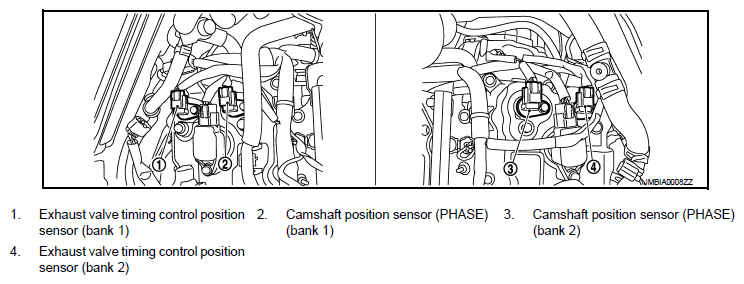

Fig 9: Cooling Fan Control System Component Parts Location (9 Of 21)

G08451399

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Cooling Fan Control System Component Parts Location (10 Of 21)

G08451400

Courtesy of NISSAN NORTH AMERICA, INC.

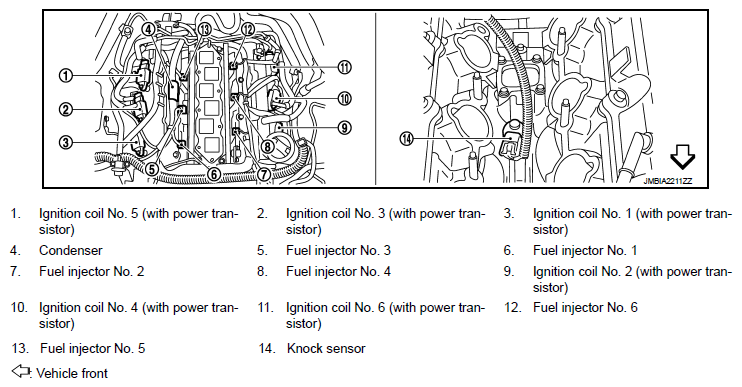

Fig 11: Cooling Fan Control System Component Parts Location (11 Of 21)

G08451401

Courtesy of NISSAN NORTH AMERICA, INC.

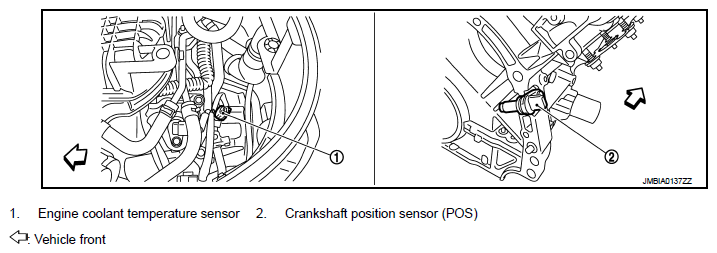

Fig 12: Cooling Fan Control System Component Parts Location (12 Of 21)

G08451402

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control System Component Parts Location (13 Of 21)

G08451403

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Cooling Fan Control System Component Parts Location (14 Of 21)

G08451404

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Cooling Fan Control System Component Parts Location (15 Of 21)

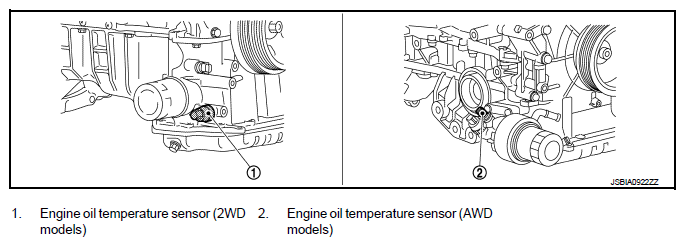

G08451405

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Cooling Fan Control System Component Parts Location (16 Of 21)

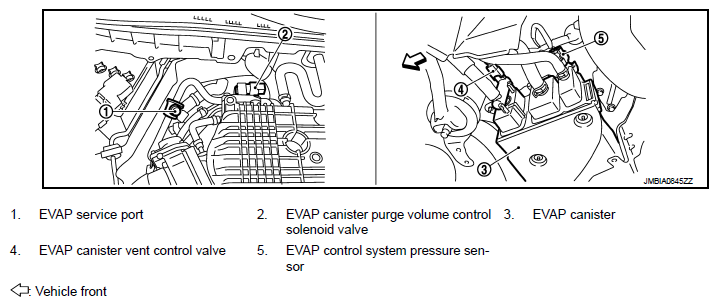

G08451406

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Cooling Fan Control System Component Parts Location (17 Of 21)

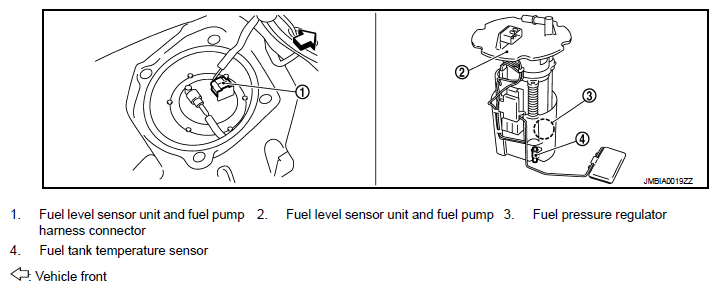

G08451407

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Cooling Fan Control System Component Parts Location (18 Of 21)

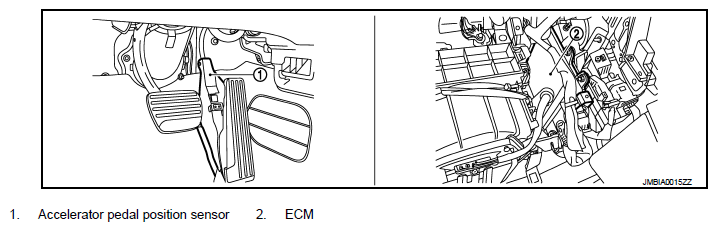

G08451408

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Cooling Fan Control System Component Parts Location (19 Of 21)

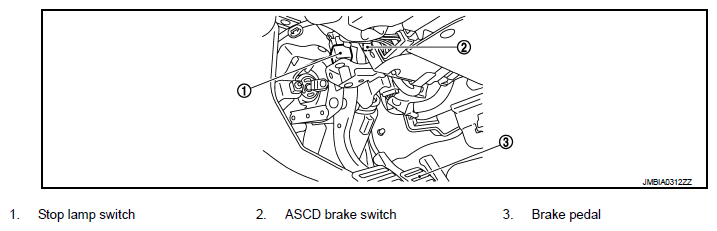

G08451409

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Cooling Fan Control System Component Parts Location (20 Of 21)

G08451410

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Cooling Fan Control System Component Parts Location (21 Of 21)

G08451411

Courtesy of NISSAN NORTH AMERICA, INC.
