Component Parts Location

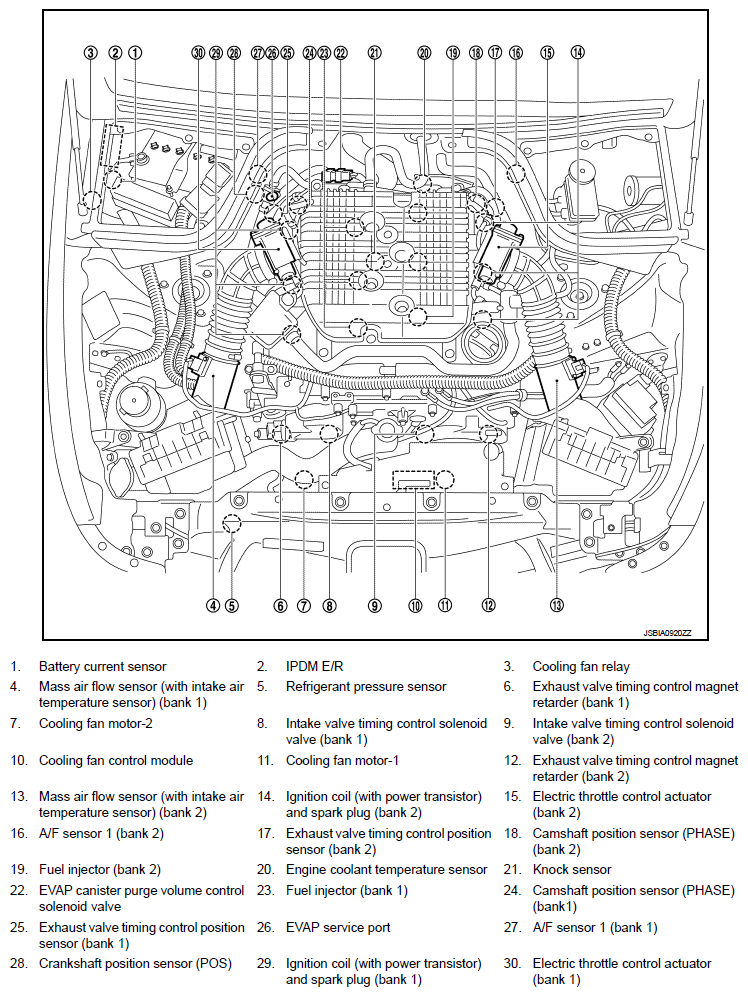

Fig 1: Electric Ignition System Component Parts Location (1 Of 21)

G08451325

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Electric Ignition System Component Parts Location (2 Of 21)

G08451326

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Electric Ignition System Component Parts Location (3 Of 21)

G08451327

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Electric Ignition System Component Parts Location (4 Of 21)

G08451328

Courtesy of NISSAN NORTH AMERICA, INC.

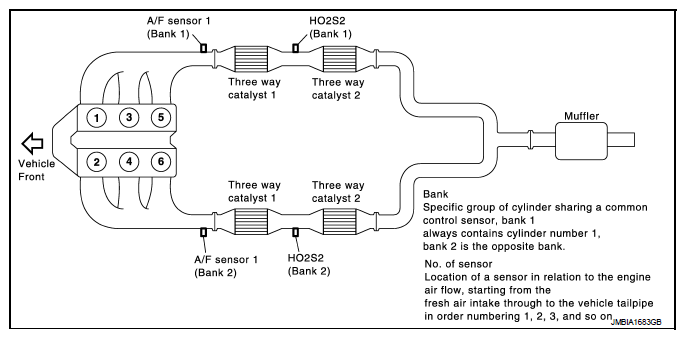

Fig 5: Electric Ignition System Component Parts Location (5 Of 21)

G08451329

Courtesy of NISSAN NORTH AMERICA, INC.

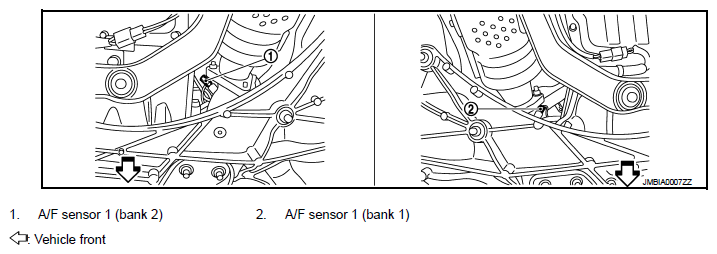

Fig 6: Electric Ignition System Component Parts Location (6 Of 21)

G08451330

Courtesy of NISSAN NORTH AMERICA, INC.

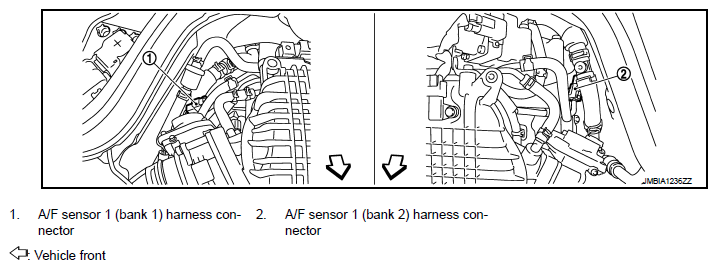

Fig 7: Electric Ignition System Component Parts Location (7 Of 21)

G08451331

Courtesy of NISSAN NORTH AMERICA, INC.

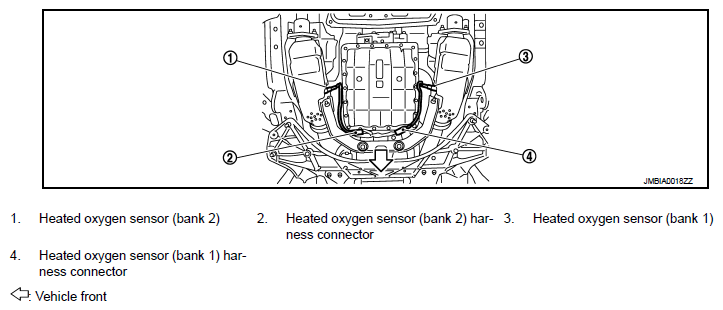

Fig 8: Electric Ignition System Component Parts Location (8 Of 21)

G08451332

Courtesy of NISSAN NORTH AMERICA, INC.

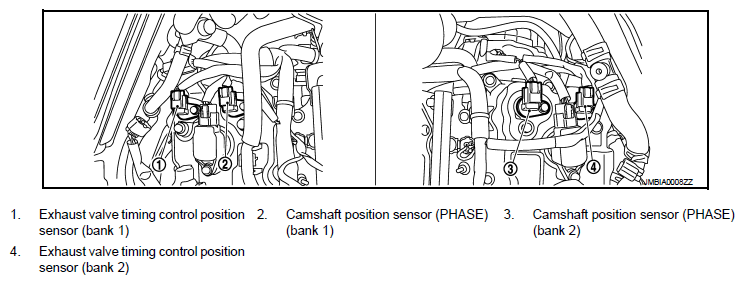

Fig 9: Electric Ignition System Component Parts Location (9 Of 21)

G08451333

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Electric Ignition System Component Parts Location (10 Of 21)

G08451334

Courtesy of NISSAN NORTH AMERICA, INC.

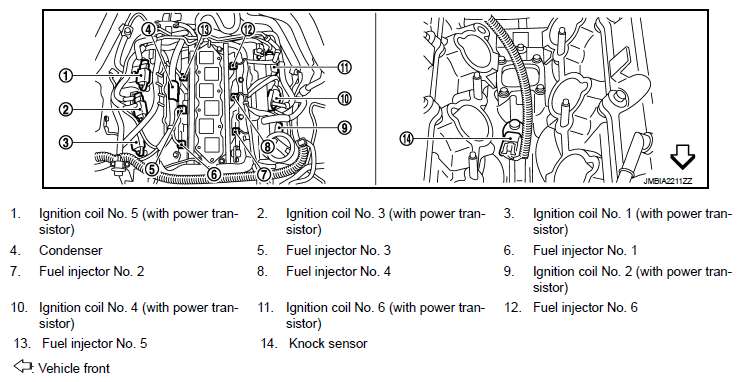

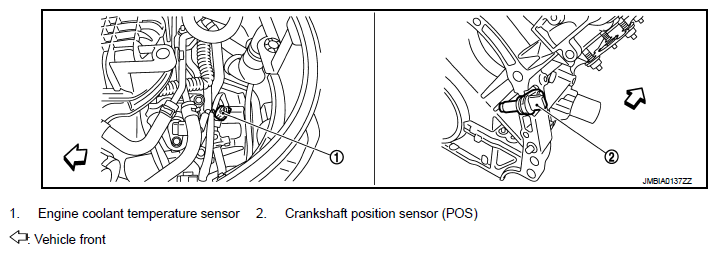

Fig 11: Electric Ignition System Component Parts Location (11 Of 21)

G08451335

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Electric Ignition System Component Parts Location (12 Of 21)

G08451336

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Component Parts Location (13 Of 21)

G08451337

Courtesy of NISSAN NORTH AMERICA, INC.

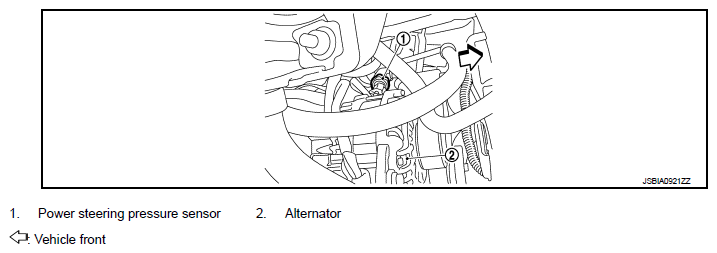

Fig 14: Electric Ignition System Component Parts Location (14 Of 21)

G08451338

Courtesy of NISSAN NORTH AMERICA, INC.

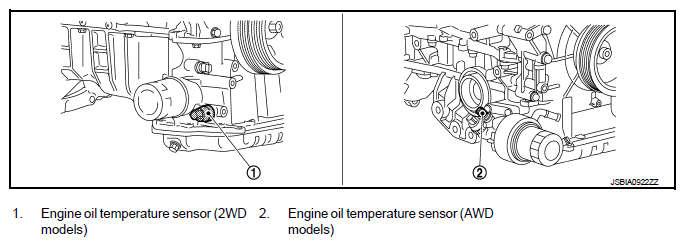

Fig 15: Electric Ignition System Component Parts Location (15 Of 21)

G08451339

Courtesy of NISSAN NORTH AMERICA, INC.

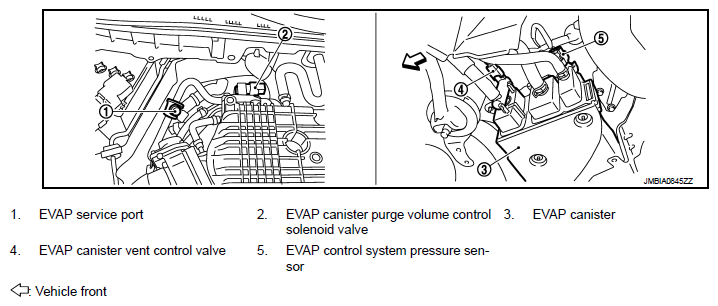

Fig 16: Electric Ignition System Component Parts Location (16 Of 21)

G08451340

Courtesy of NISSAN NORTH AMERICA, INC.

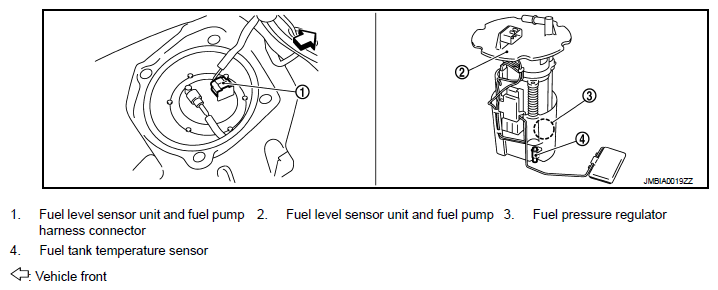

Fig 17: Electric Ignition System Component Parts Location (17 Of 21)

G08451341

Courtesy of NISSAN NORTH AMERICA, INC.

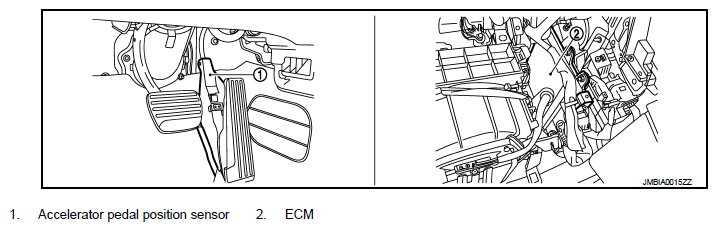

Fig 18: Electric Ignition System Component Parts Location (18 Of 21)

G08451342

Courtesy of NISSAN NORTH AMERICA, INC.

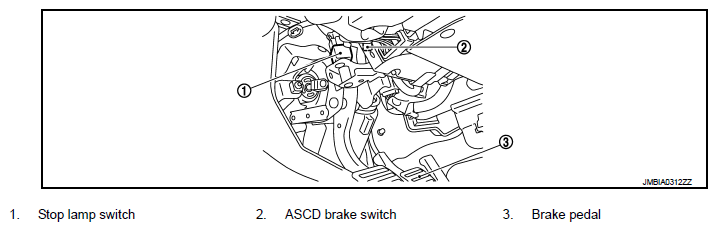

Fig 19: Electric Ignition System Component Parts Location (19 Of 21)

G08451343

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Electric Ignition System Component Parts Location (20 Of 21)

G08451344

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Electric Ignition System Component Parts Location (21 Of 21)

G08451345

Courtesy of NISSAN NORTH AMERICA, INC.
