Engine Control System - Introduction (1 Of 2) (Convertible)
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work Flow
>>
Overall Sequence
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Sequence

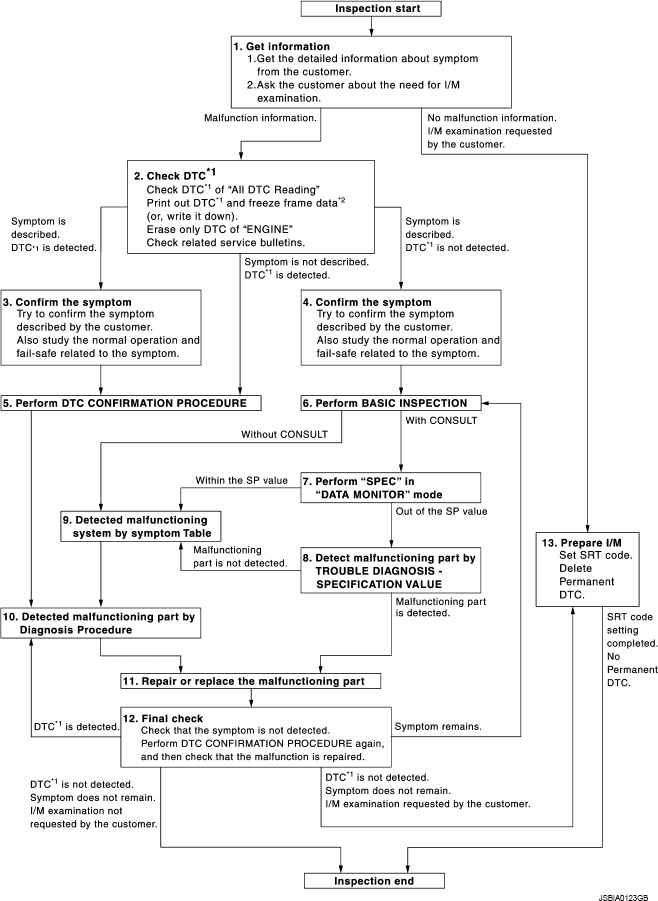

Fig 1: Diagnosis And Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
