Component Parts Location

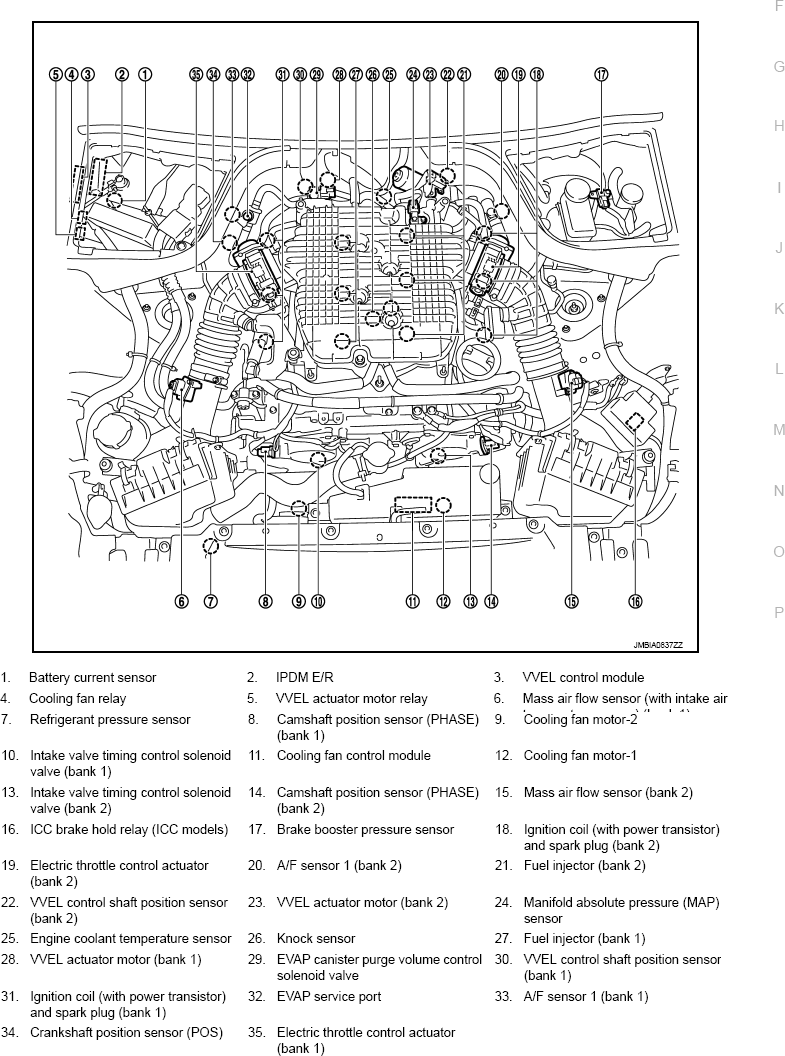

Fig 1: Engine Control System Component Parts Location (1 Of 21)

G08443495

Courtesy of NISSAN NORTH AMERICA, INC.

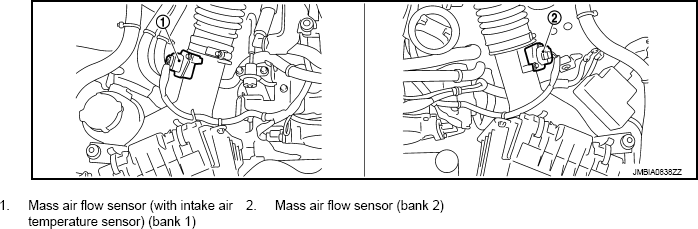

Fig 2: Engine Control System Component Parts Location (2 Of 21)

G08443496

Courtesy of NISSAN NORTH AMERICA, INC.

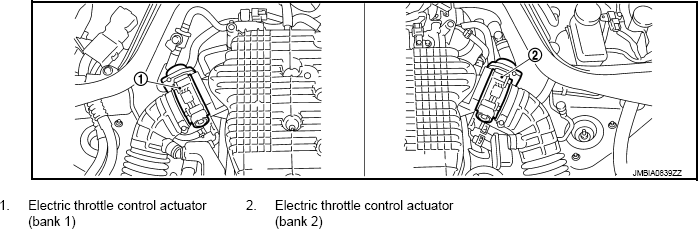

Fig 3: Engine Control System Component Parts Location (3 Of 21)

G08443497

Courtesy of NISSAN NORTH AMERICA, INC.

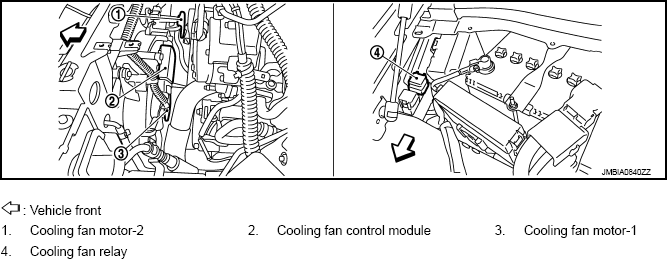

Fig 4: Engine Control System Component Parts Location (4 Of 21)

G08443498

Courtesy of NISSAN NORTH AMERICA, INC.

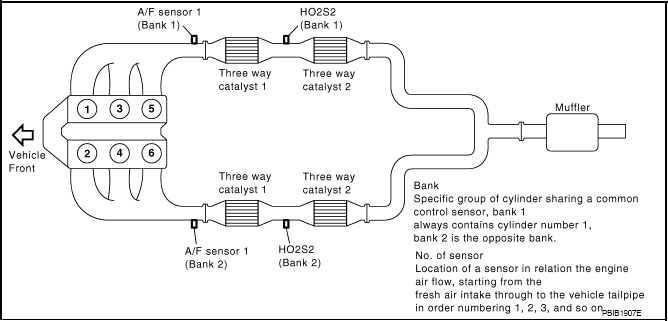

Fig 5: Engine Control System Component Parts Location (5 Of 21)

G08443499

Courtesy of NISSAN NORTH AMERICA, INC.

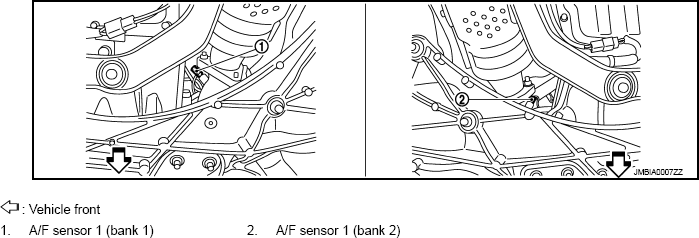

Fig 6: Engine Control System Component Parts Location (6 Of 21)

G08443500

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Engine Control System Component Parts Location (7 Of 21)

G08443501

Courtesy of NISSAN NORTH AMERICA, INC.

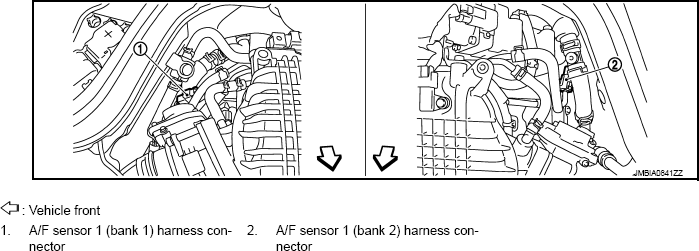

Fig 8: Engine Control System Component Parts Location (8 Of 21)

G08443502

Courtesy of NISSAN NORTH AMERICA, INC.

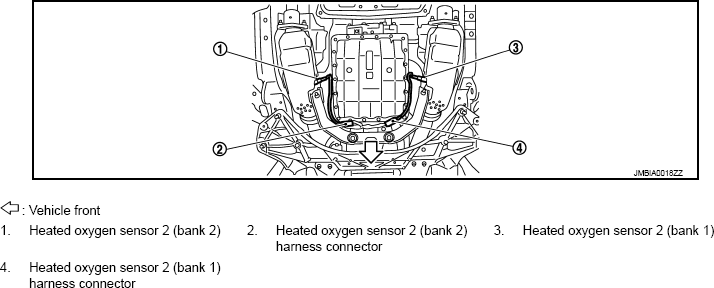

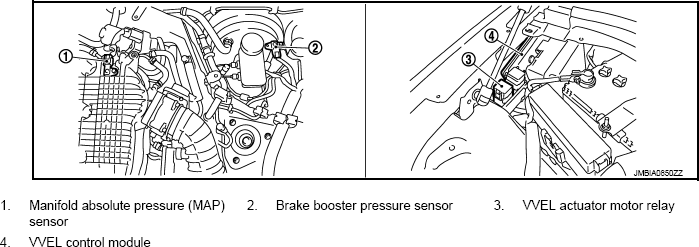

Fig 9: Engine Control System Component Parts Location (9 Of 21)

G08443503

Courtesy of NISSAN NORTH AMERICA, INC.

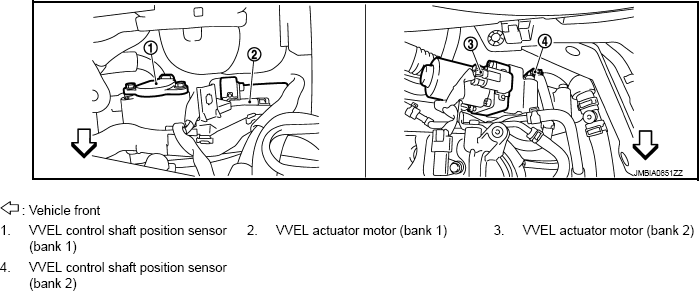

Fig 10: Engine Control System Component Parts Location (10 Of 21)

G08443504

Courtesy of NISSAN NORTH AMERICA, INC.

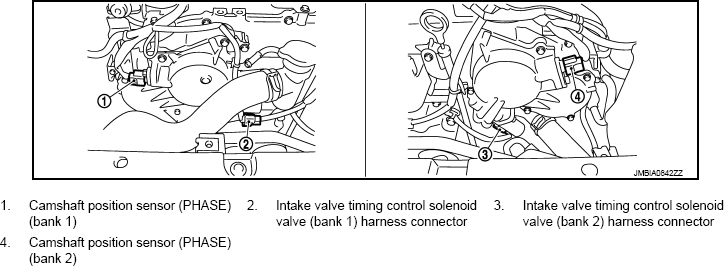

Fig 11: Engine Control System Component Parts Location (11 Of 21)

G08443505

Courtesy of NISSAN NORTH AMERICA, INC.

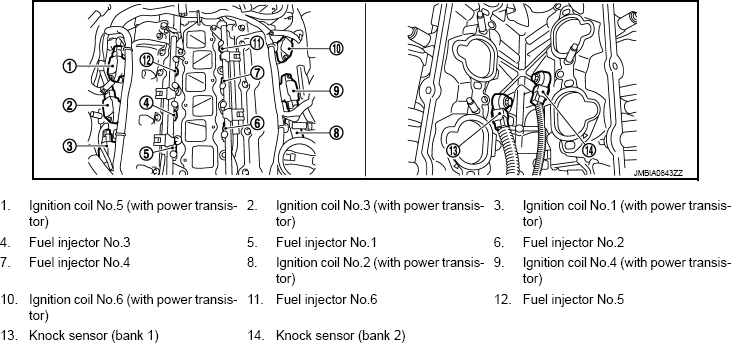

Fig 12: Engine Control System Component Parts Location (12 Of 21)

G08443506

Courtesy of NISSAN NORTH AMERICA, INC.

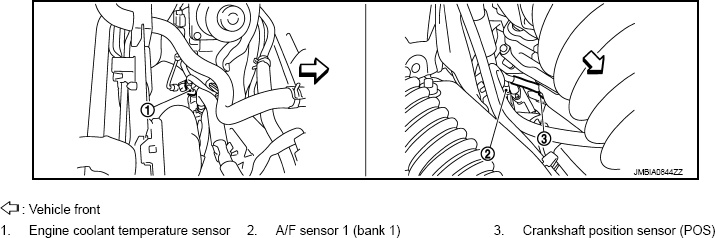

Fig 13: Engine Control System Component Parts Location (13 Of 21)

G08443507

Courtesy of NISSAN NORTH AMERICA, INC.

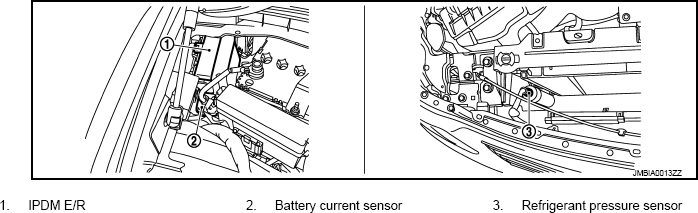

Fig 14: Engine Control System Component Parts Location (14 Of 21)

G08443508

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Component Parts Location (15 Of 21)

G08443509

Courtesy of NISSAN NORTH AMERICA, INC.

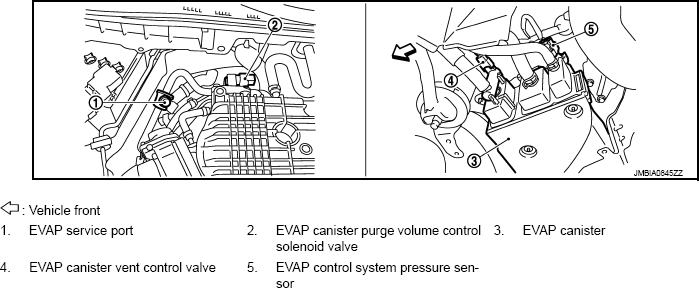

Fig 16: Engine Control System Component Parts Location (16 Of 21)

G08443510

Courtesy of NISSAN NORTH AMERICA, INC.

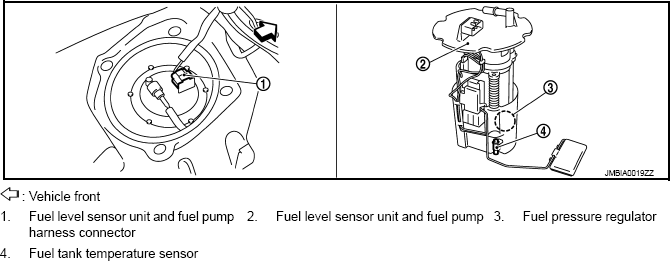

Fig 17: Engine Control System Component Parts Location (17 Of 21)

G08443511

Courtesy of NISSAN NORTH AMERICA, INC.

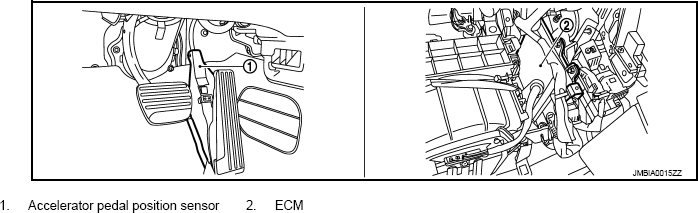

Fig 18: Engine Control System Component Parts Location (18 Of 21)

G08443512

Courtesy of NISSAN NORTH AMERICA, INC.

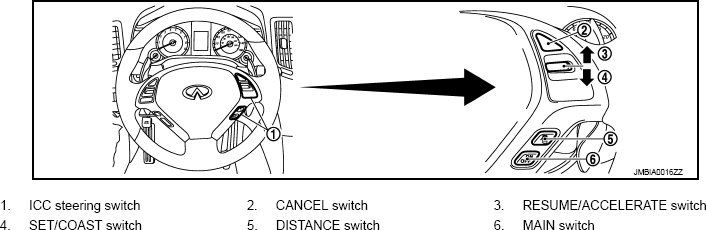

Fig 19: Engine Control System Component Parts Location (19 Of 21)

G08443513

Courtesy of NISSAN NORTH AMERICA, INC.

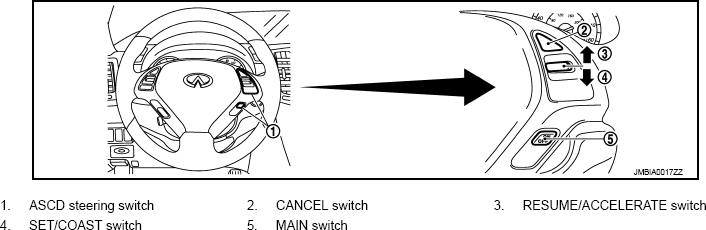

Fig 20: Engine Control System Component Parts Location (20 Of 21)

G08443514

Courtesy of NISSAN NORTH AMERICA, INC.

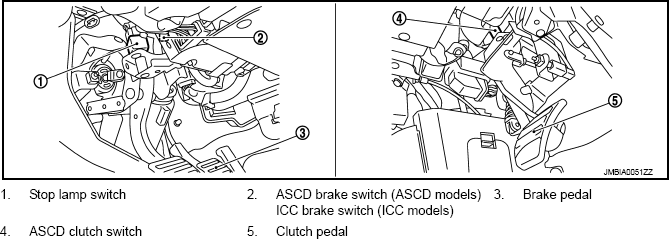

Fig 21: Engine Control System Component Parts Location (21 Of 21)

G08443515

Courtesy of NISSAN NORTH AMERICA, INC.
