Component Parts Location

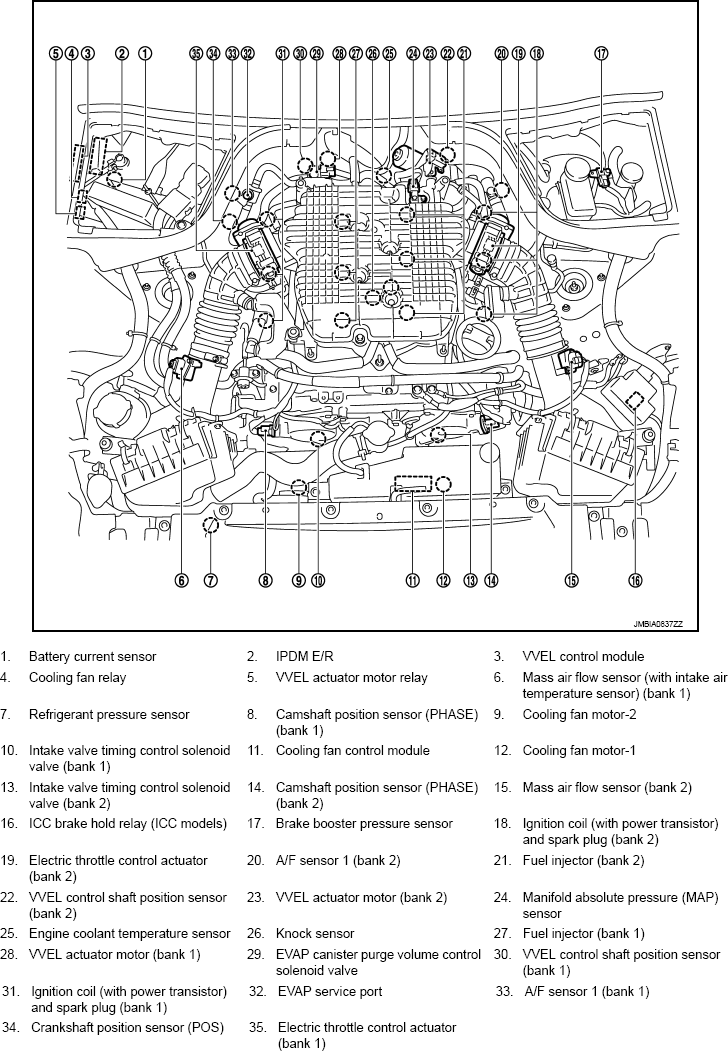

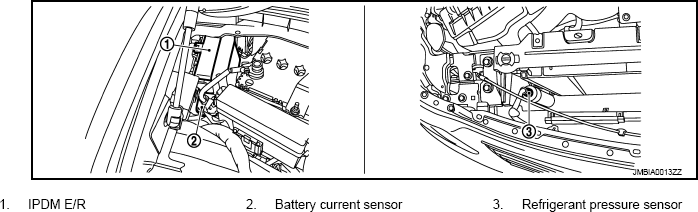

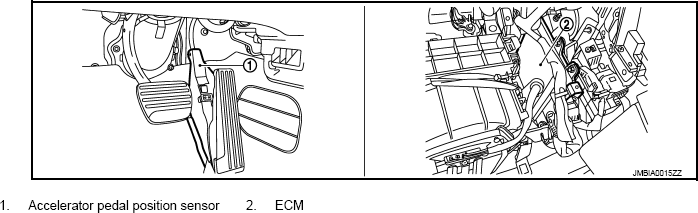

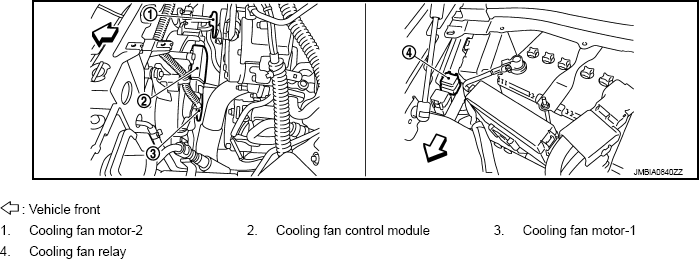

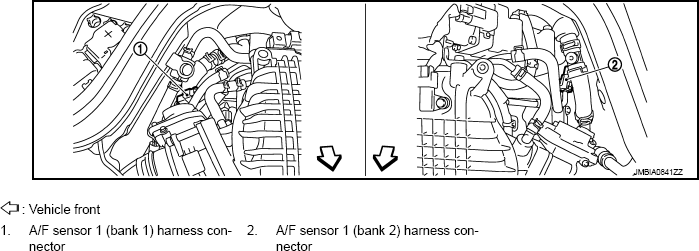

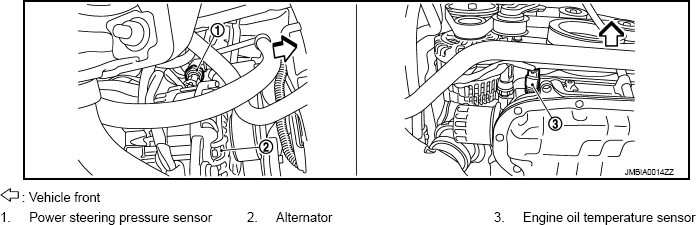

Fig 1: Intake Valve Timing Control Component Parts Location (1 Of 21)

G08443677

Courtesy of NISSAN NORTH AMERICA, INC.

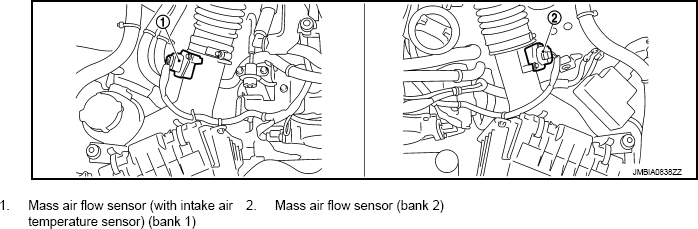

Fig 2: Intake Valve Timing Control Component Parts Location (2 Of 21)

G08443678

Courtesy of NISSAN NORTH AMERICA, INC.

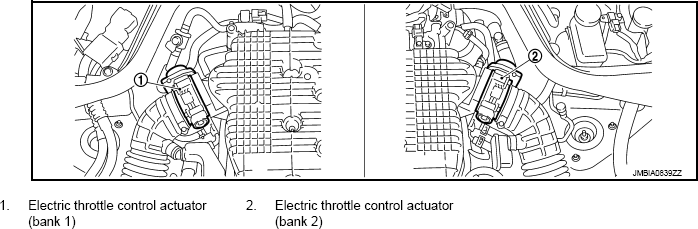

Fig 3: Intake Valve Timing Control Component Parts Location (3 Of 21)

G08443679

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intake Valve Timing Control Component Parts Location (4 Of 21)

G08443680

Courtesy of NISSAN NORTH AMERICA, INC.

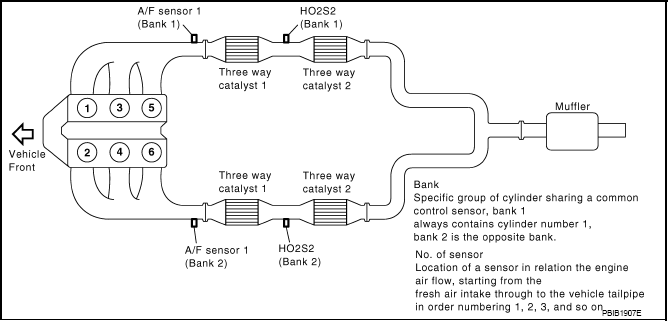

Fig 5: Intake Valve Timing Control Component Parts Location (5 Of 21)

G08443681

Courtesy of NISSAN NORTH AMERICA, INC.

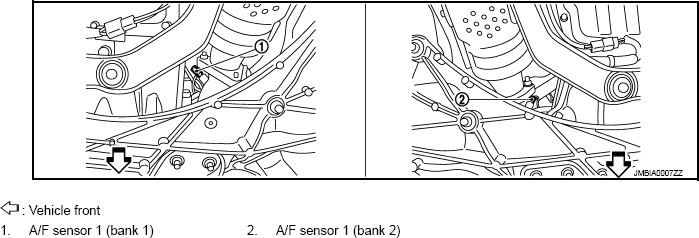

Fig 6: Intake Valve Timing Control Component Parts Location (6 Of 21)

G08443682

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intake Valve Timing Control Component Parts Location (7 Of 21)

G08443683

Courtesy of NISSAN NORTH AMERICA, INC.

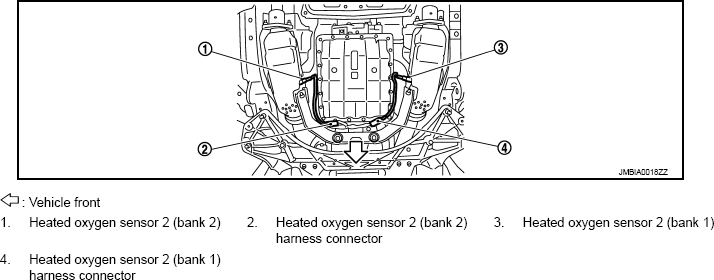

Fig 8: Intake Valve Timing Control Component Parts Location (8 Of 21)

G08443684

Courtesy of NISSAN NORTH AMERICA, INC.

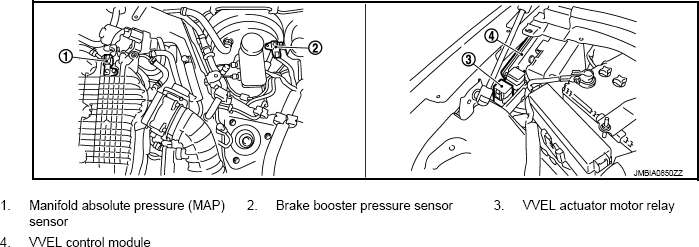

Fig 9: Intake Valve Timing Control Component Parts Location (9 Of 21)

G08443685

Courtesy of NISSAN NORTH AMERICA, INC.

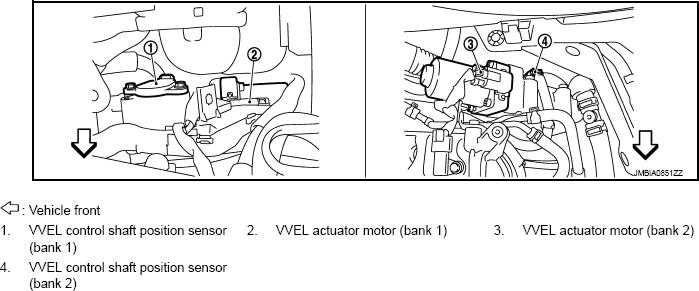

Fig 10: Intake Valve Timing Control Component Parts Location (10 Of 21)

G08443686

Courtesy of NISSAN NORTH AMERICA, INC.

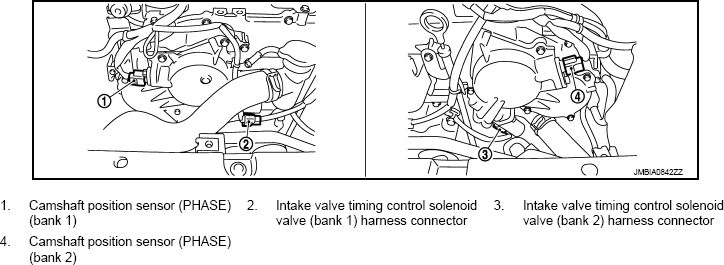

Fig 11: Intake Valve Timing Control Component Parts Location (11 Of 21)

G08443687

Courtesy of NISSAN NORTH AMERICA, INC.

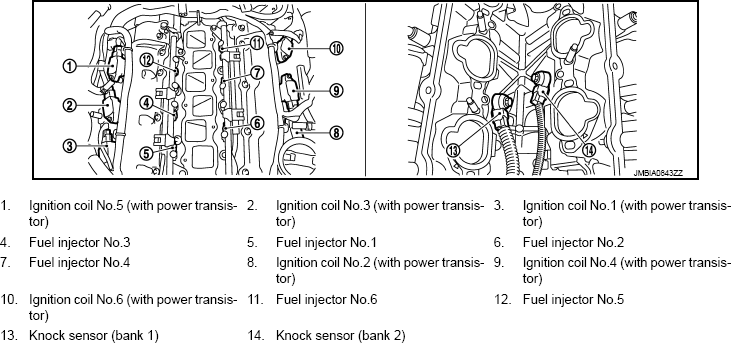

Fig 12: Intake Valve Timing Control Component Parts Location (12 Of 21)

G08443688

Courtesy of NISSAN NORTH AMERICA, INC.

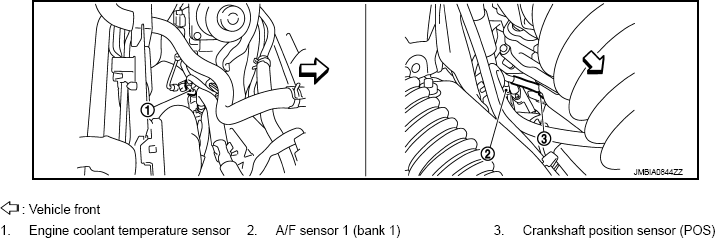

Fig 13: Intake Valve Timing Control Component Parts Location (13 Of 21)

G08443689

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Intake Valve Timing Control Component Parts Location (14 Of 21)

G08443690

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intake Valve Timing Control Component Parts Location (15 Of 21)

G08443691

Courtesy of NISSAN NORTH AMERICA, INC.

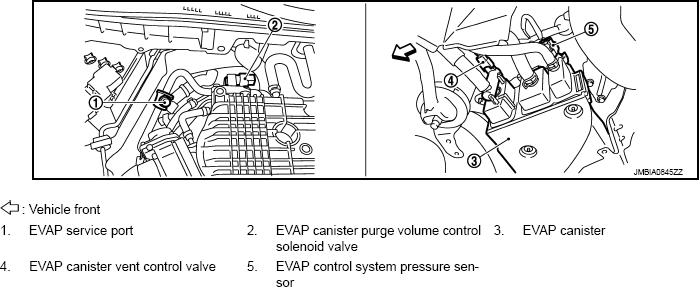

Fig 16: Intake Valve Timing Control Component Parts Location (16 Of 21)

G08443692

Courtesy of NISSAN NORTH AMERICA, INC.

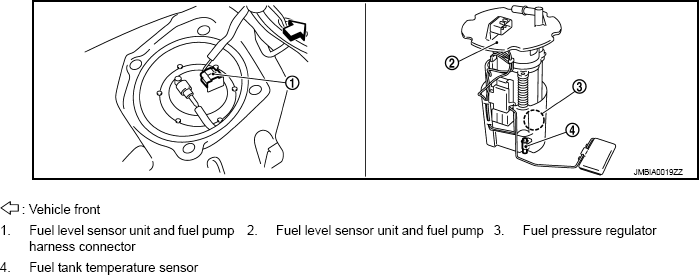

Fig 17: Intake Valve Timing Control Component Parts Location (17 Of 21)

G08443693

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Intake Valve Timing Control Component Parts Location (18 Of 21)

G08443694

Courtesy of NISSAN NORTH AMERICA, INC.

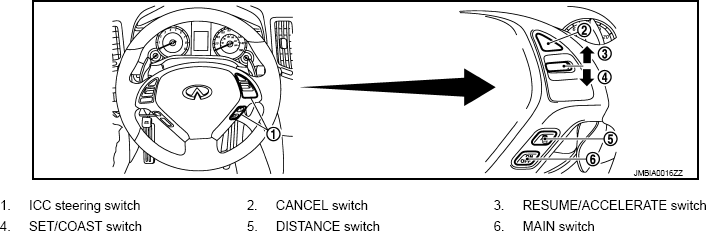

Fig 19: Intake Valve Timing Control Component Parts Location (19 Of 21)

G08443695

Courtesy of NISSAN NORTH AMERICA, INC.

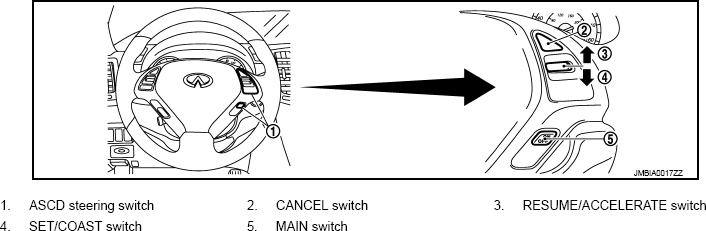

Fig 20: Intake Valve Timing Control Component Parts Location (20 Of 21)

G08443696

Courtesy of NISSAN NORTH AMERICA, INC.

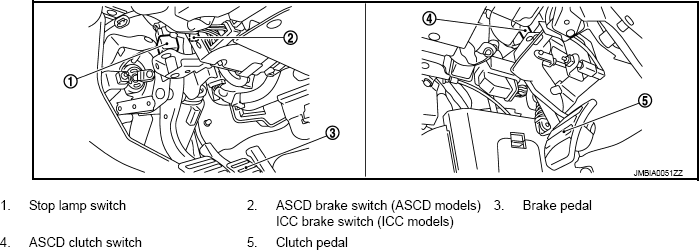

Fig 21: Intake Valve Timing Control Component Parts Location (21 Of 21)

G08443697

Courtesy of NISSAN NORTH AMERICA, INC.
