Component Parts Location

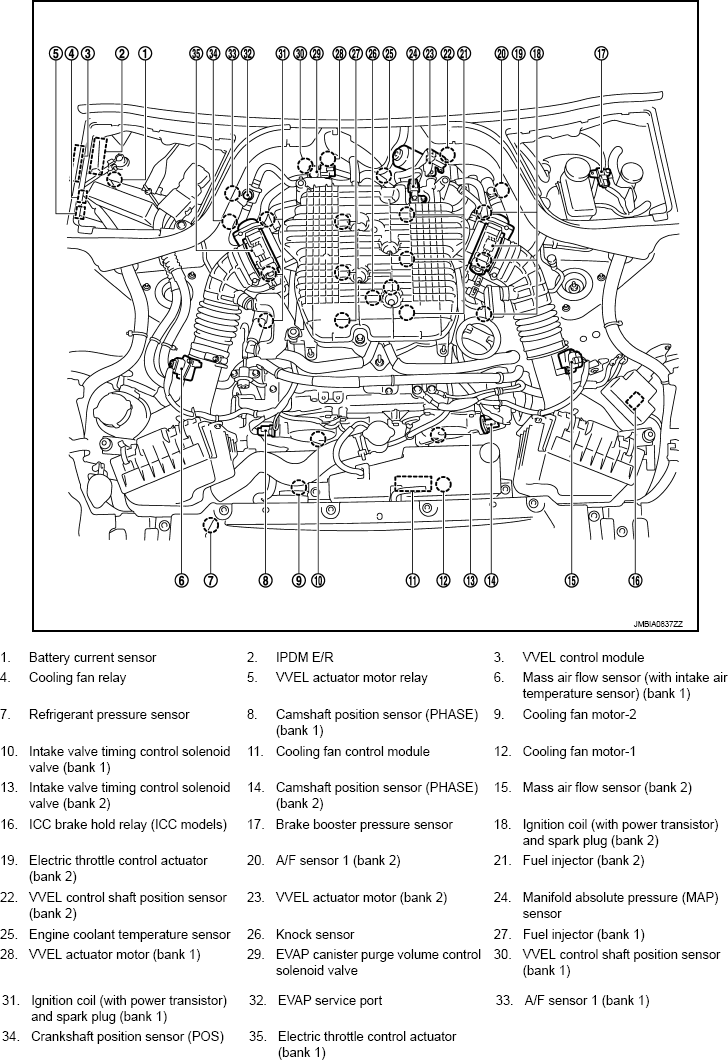

Fig 1: VVEL System Component Parts Location (1 Of 21)

G08443700

Courtesy of NISSAN NORTH AMERICA, INC.

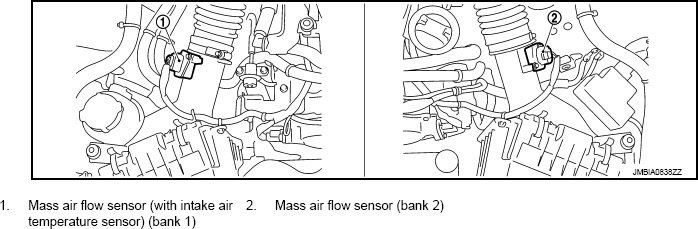

Fig 2: VVEL System Component Parts Location (2 Of 21)

G08443701

Courtesy of NISSAN NORTH AMERICA, INC.

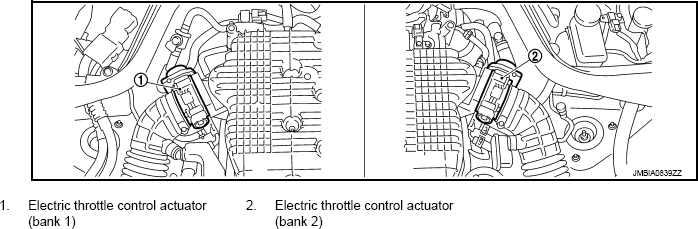

Fig 3: VVEL System Component Parts Location (3 Of 21)

G08443702

Courtesy of NISSAN NORTH AMERICA, INC.

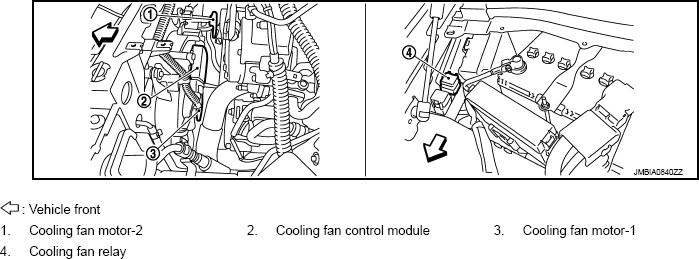

Fig 4: VVEL System Component Parts Location (4 Of 21)

G08443703

Courtesy of NISSAN NORTH AMERICA, INC.

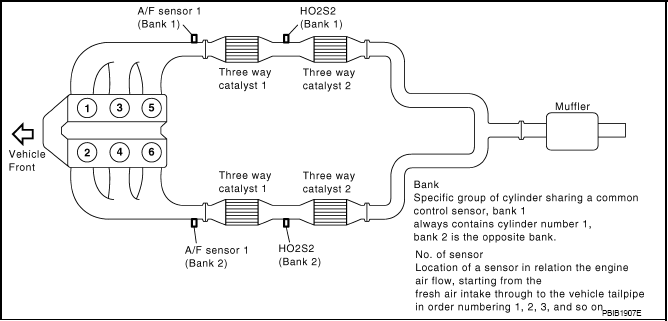

Fig 5: VVEL System Component Parts Location (5 Of 21)

G08443704

Courtesy of NISSAN NORTH AMERICA, INC.

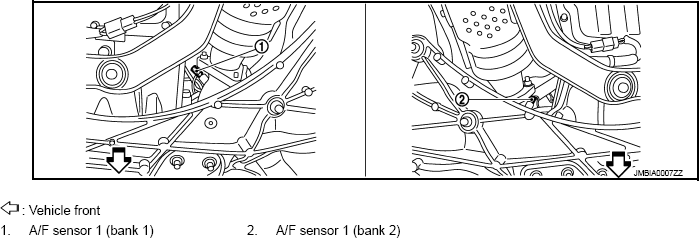

Fig 6: VVEL System Component Parts Location (6 Of 21)

G08443705

Courtesy of NISSAN NORTH AMERICA, INC.

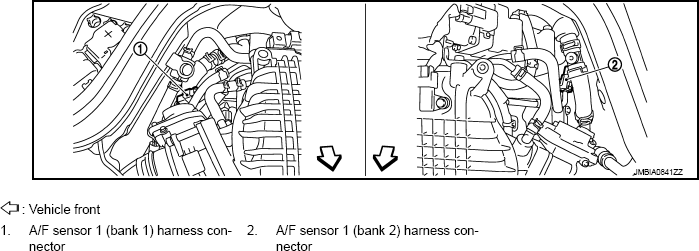

Fig 7: VVEL System Component Parts Location (7 Of 21)

G08443706

Courtesy of NISSAN NORTH AMERICA, INC.

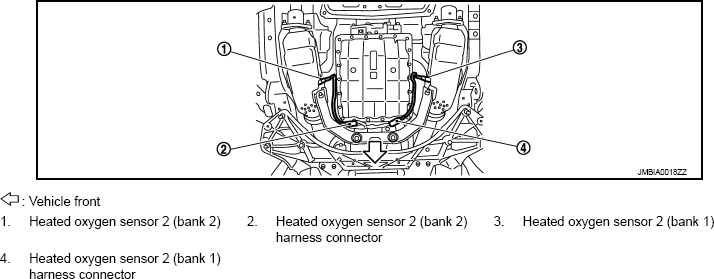

Fig 8: VVEL System Component Parts Location (8 Of 21)

G08443707

Courtesy of NISSAN NORTH AMERICA, INC.

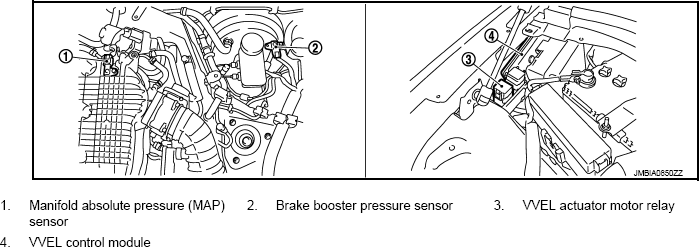

Fig 9: VVEL System Component Parts Location (9 Of 21)

G08443708

Courtesy of NISSAN NORTH AMERICA, INC.

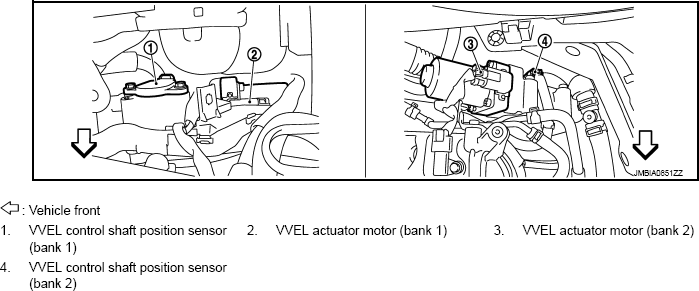

Fig 10: VVEL System Component Parts Location (10 Of 21)

G08443709

Courtesy of NISSAN NORTH AMERICA, INC.

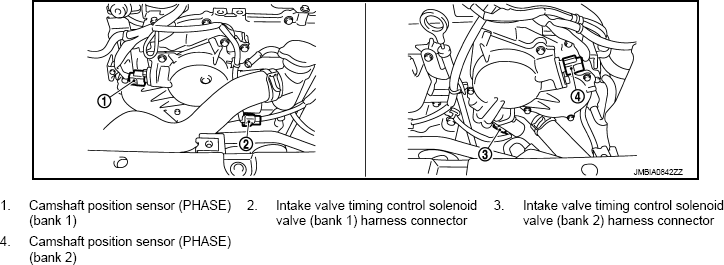

Fig 11: VVEL System Component Parts Location (11 Of 21)

G08443710

Courtesy of NISSAN NORTH AMERICA, INC.

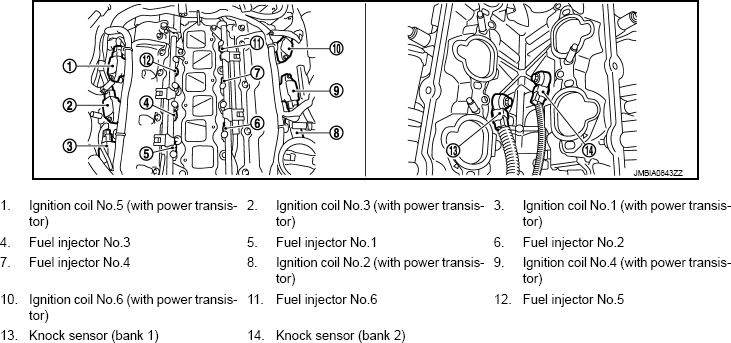

Fig 12: VVEL System Component Parts Location (12 Of 21)

G08443711

Courtesy of NISSAN NORTH AMERICA, INC.

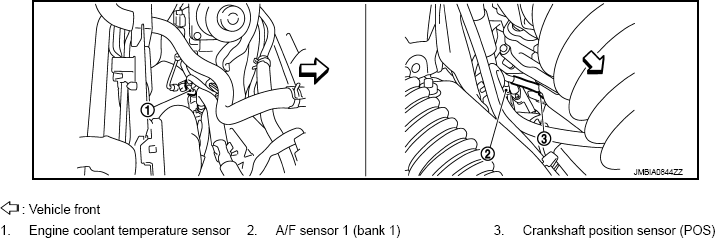

Fig 13: VVEL System Component Parts Location (13 Of 21)

G08443712

Courtesy of NISSAN NORTH AMERICA, INC.

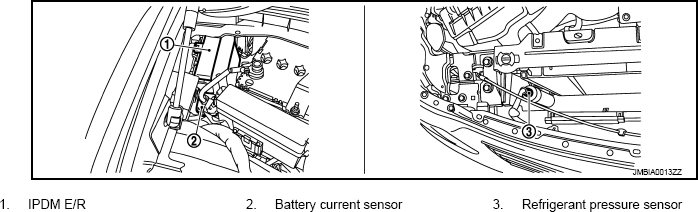

Fig 14: VVEL System Component Parts Location (14 Of 21)

G08443713

Courtesy of NISSAN NORTH AMERICA, INC.

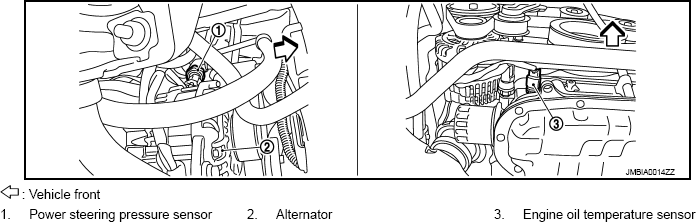

Fig 15: VVEL System Component Parts Location (15 Of 21)

G08443714

Courtesy of NISSAN NORTH AMERICA, INC.

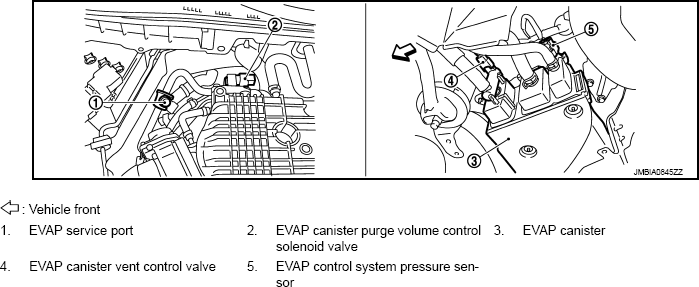

Fig 16: VVEL System Component Parts Location (16 Of 21)

G08443715

Courtesy of NISSAN NORTH AMERICA, INC.

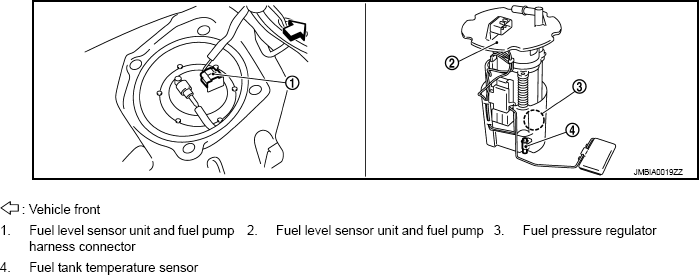

Fig 17: VVEL System Component Parts Location (17 Of 21)

G08443716

Courtesy of NISSAN NORTH AMERICA, INC.

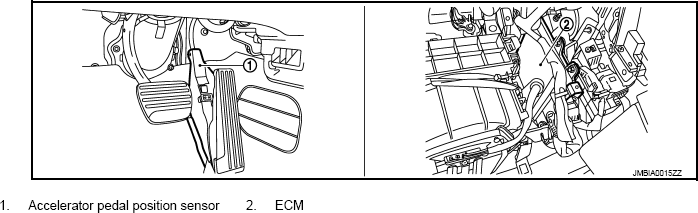

Fig 18: VVEL System Component Parts Location (18 Of 21)

G08443717

Courtesy of NISSAN NORTH AMERICA, INC.

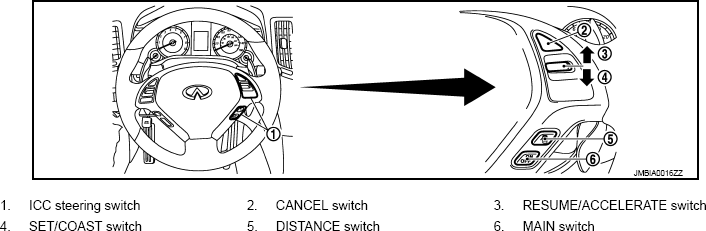

Fig 19: VVEL System Component Parts Location (19 Of 21)

G08443718

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: VVEL System Component Parts Location (20 Of 21)

G08443719

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: VVEL System Component Parts Location (21 Of 21)

G08443720

Courtesy of NISSAN NORTH AMERICA, INC.
