INTELLIGENT KEY SYSTEM/READY SET FUNCTION: System Diagram

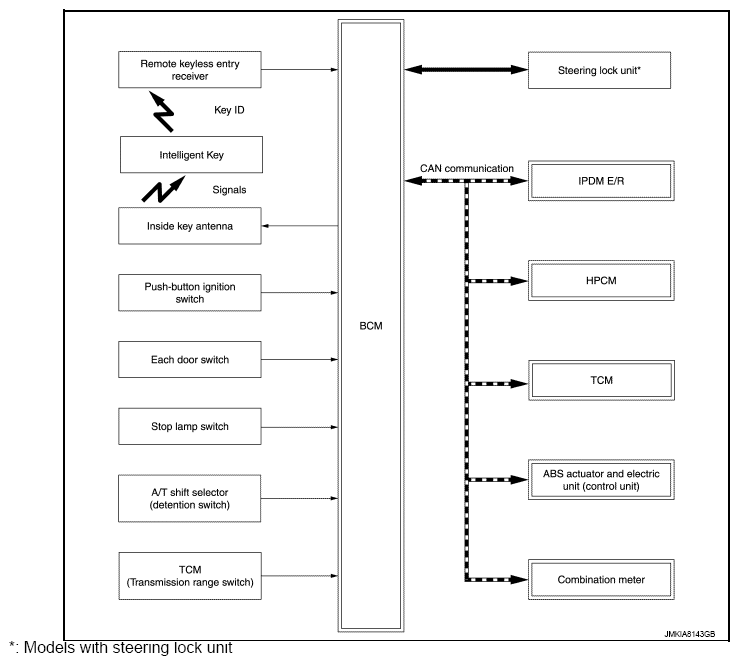

Fig 1: Intelligent Key System/Ready Set Function - System Diagram
G08249611Courtesy of NISSAN NORTH AMERICA, INC.
