Component Inspection (Cooling Fan Relay)
- CHECK COOLING FAN RELAY
- Turn ignition switch OFF.
- Remove cooling fan relay. Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION ".

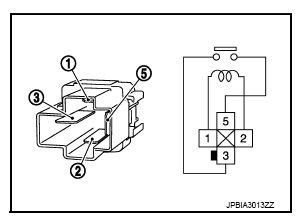

- Check the continuity between cooling fan relay terminals under the following conditions.
Courtesy of NISSAN NORTH AMERICA, INC.
Terminals Conditions Continuity 3 and 5 12 V direct current supply between terminals 1 and 2 Existed No current supply Not existed Is the inspection result normal?
YES: INSPECTION END
NO: Replace cooling fan relay. Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION ".
