Component Inspection (Condenser)

  1. CHECK CONDENSER
    1. Turn ignition switch OFF.
    2. Disconnect condenser harness connector.
    3. Check resistance between condenser terminals as per the following.

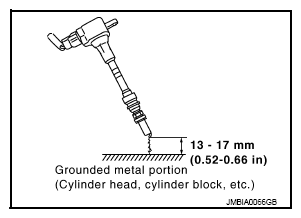

      Fig 1: Checking Gap Between Edge Of Spark Plug And Grounded Metal Portion
      G08255751Courtesy of NISSAN NORTH AMERICA, INC.
      Terminals Resistance (MΩ)
      1 and 2 Above 1 [at 25°C (77°F)]

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace condenser.
