Check Ignition Timing

Attach timing light to loop wire as shown.

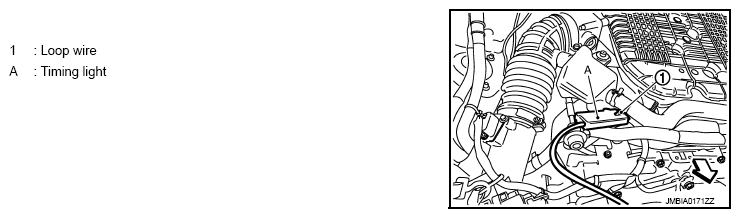

Fig 1: Identifying Loop Wire And Timing Light
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.

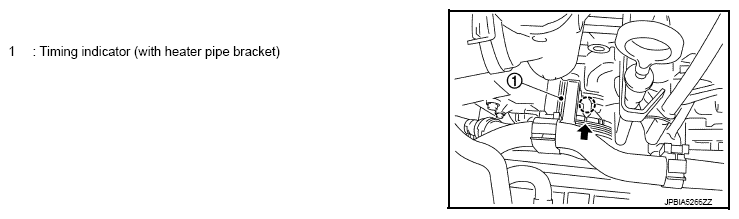

Fig 2: Identifying Timing Indicator (With Heater Pipe Bracket)
Courtesy of NISSAN NORTH AMERICA, INC.
