Component Inspection

CHECK FUEL TANK VACUUM RELIEF VALVE
1. Turn ignition switch OFF.
2. Remove fuel filler cap. Refer to "EXPLODED VIEW ".
3. Wipe clean valve housing.

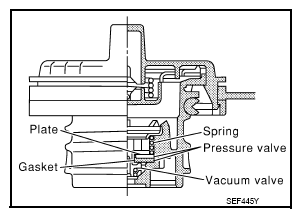

  Fig 1: Identifying Spring Pressure Valve, Vacuum Valve, Plate And Gasket
  Courtesy of NISSAN NORTH AMERICA, INC.
4. Check valve opening pressure and vacuum.
  Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm ² , 2.22 -2.90 psi)

  Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm ² , -0.87 to -0.48 psi)

  Is the inspection result normal?

  YES: INSPECTION END

  NO: GO TO 2.

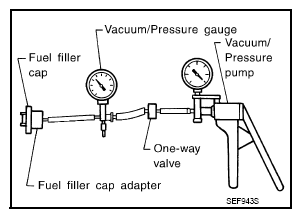

  Fig 2: Checking Valve Opening Pressure And Vacuum
  Courtesy of NISSAN NORTH AMERICA, INC.
REPLACE FUEL FILLER CAP
Replace fuel filler cap. Refer to "EXPLODED VIEW ".

CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.

: INSPECTION END
