Work Procedure (Group A)

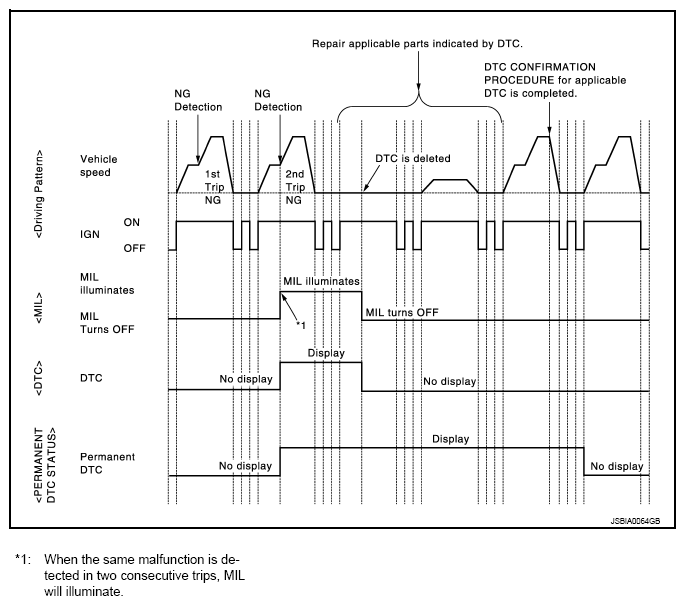

Fig 1: Permanent DTC, MIL, IGN And Vehicle Speed Driving Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

CHECK DTC
Check DTC.

Is any DTC detected?

YES: Repair malfunction(s) and erase DTC. Refer to the appropriate "DTC Index" of each control module.

NO: GO TO 2.
CHECK PERMANENT DTC
◦ With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select "PERMANENT DTC STATUS" mode with CONSULT.
ⓧ With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
  Is any permanent DTC detected?

  YES: GO TO 3.

  NO: END
PERFORM DTC CONFIRMATION PROCEDURE
Perform "DTC CONFIRMATION PROCEDURE" for DTCs which are the same as permanent DTCs stored in control module.

: GO TO 4.
CHECK PERMANENT DTC
◦ With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select "PERMANENT DTC STATUS" mode with CONSULT.
ⓧ With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
  Is any permanent DTC detected?

  YES: GO TO 1.

  NO: END
