EVAP Canister Purge Volume Control Solenoid Valve

The EVAP canister purge volume control solenoid valve is used to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

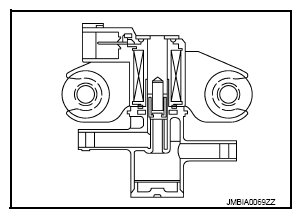

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN NORTH AMERICA, INC.
