INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram

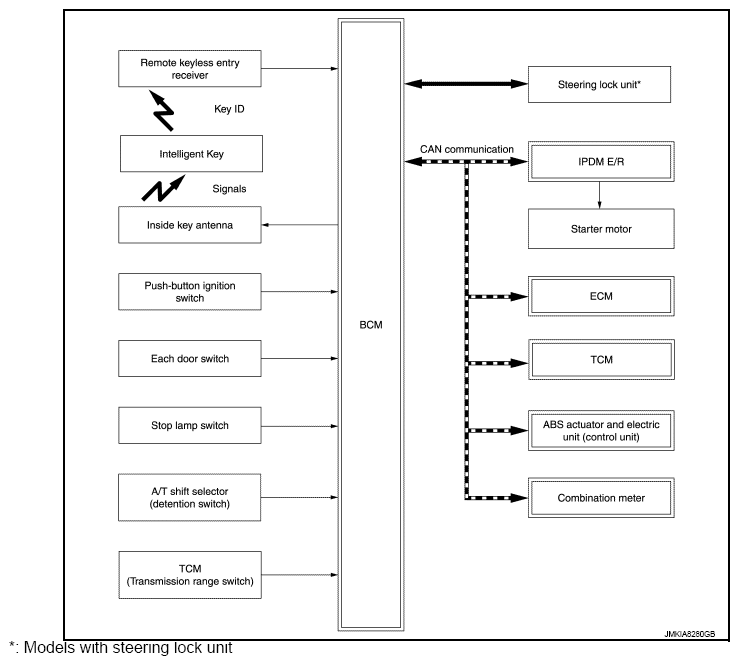

Fig 1: Intelligent Key System/Engine Start Function System Diagram
G08240912Courtesy of NISSAN NORTH AMERICA, INC.

*: Models with steering lock unit
