Exploded View

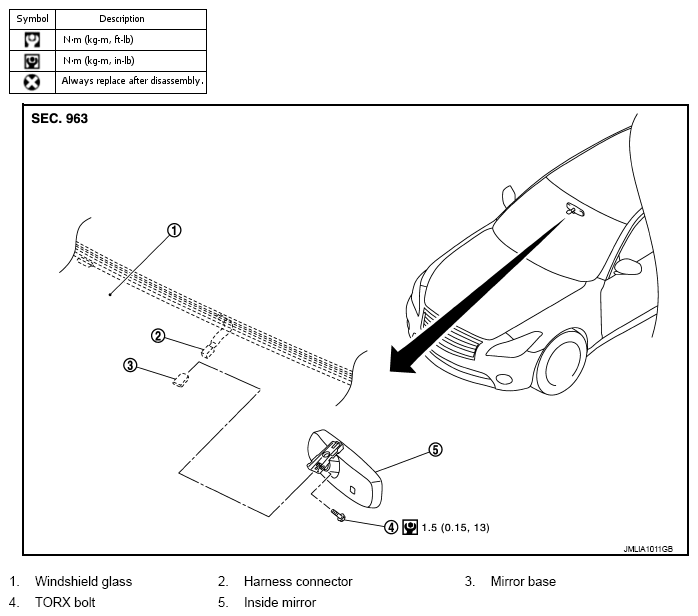

Fig 1: Exploded View Of Inside Mirror With Torque Specification
G08654955Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.
