Removal and Installation: Removal

  1. Remove the front door finisher.

    Refer to "FRONT DOOR FINISHER: REMOVAL AND INSTALLATION ".

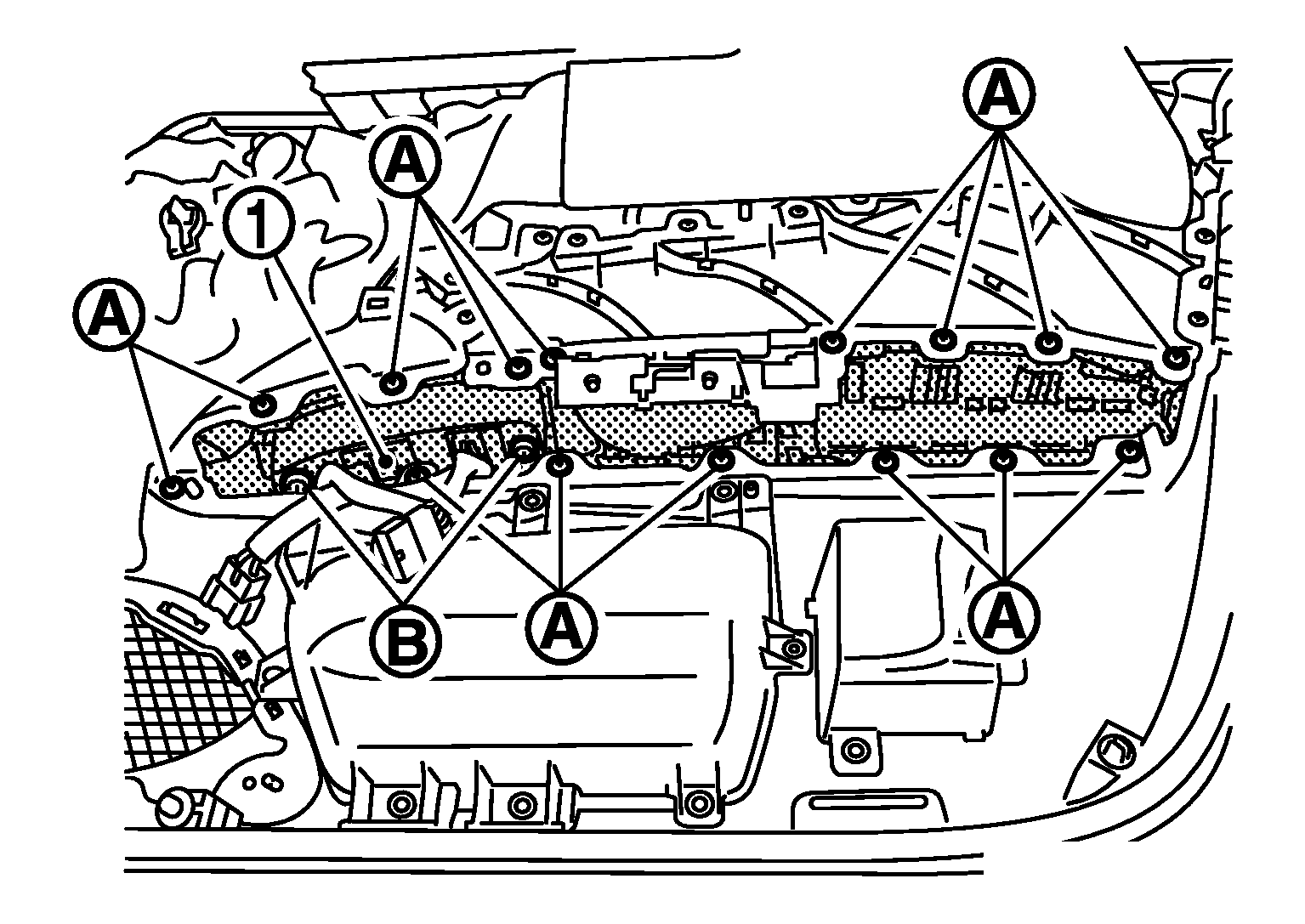

  2. Remove the armrest mounting screws (A), and then remove the armrest from the front door finisher.
  3. Remove mounting screws (B) of power window main switch (1) from the armrest.
    Fig 1: Identifying Armrest And Power Window Main Switch Mounting Screws
    G07021089Courtesy of NISSAN NORTH AMERICA, INC.

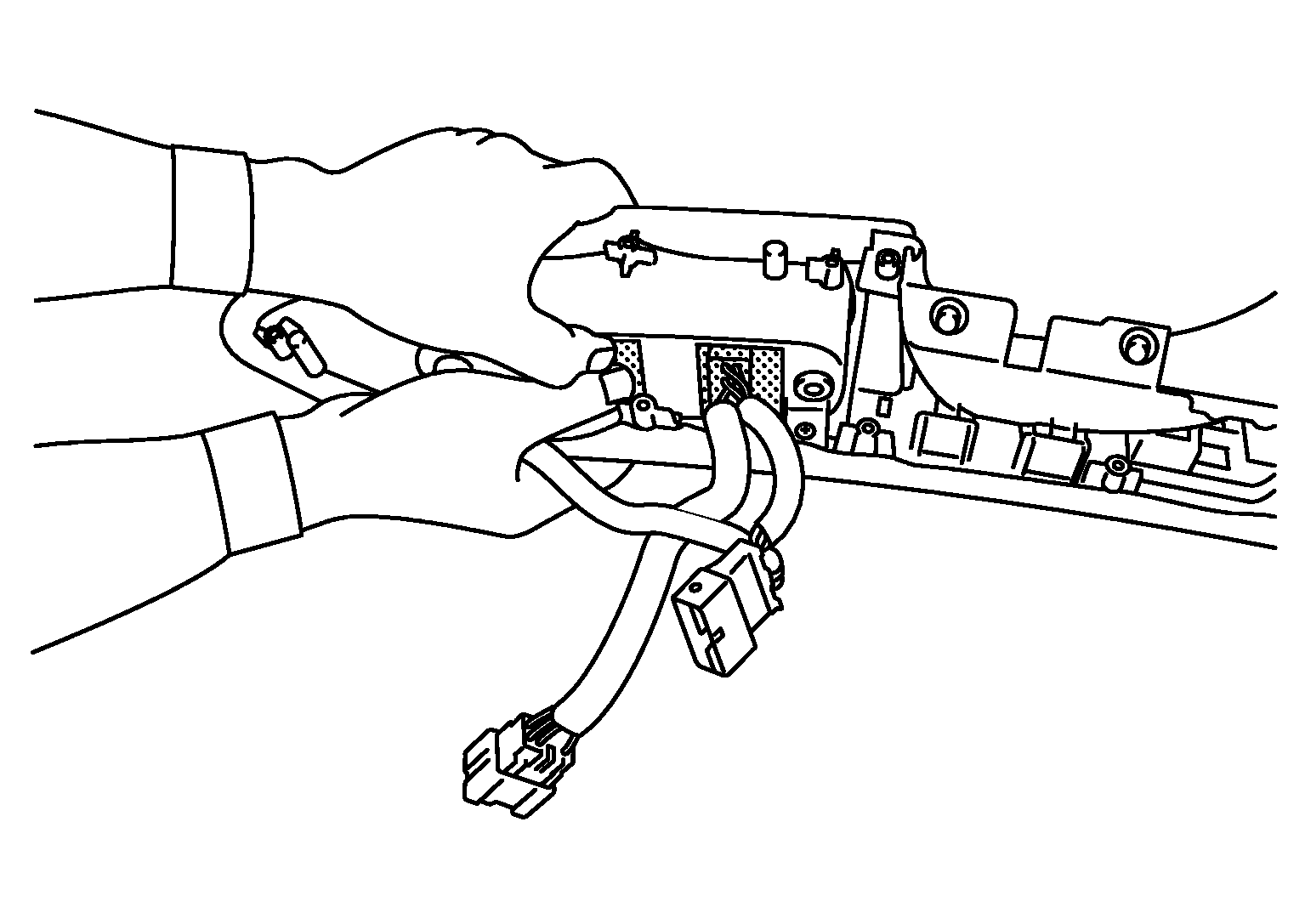

  4. Push out and remove power window main switch (1) from lower side, as shown in the figure below.
    Fig 2: Removing Power Window Main Switch
    G07021090Courtesy of NISSAN NORTH AMERICA, INC.
