Exploded View

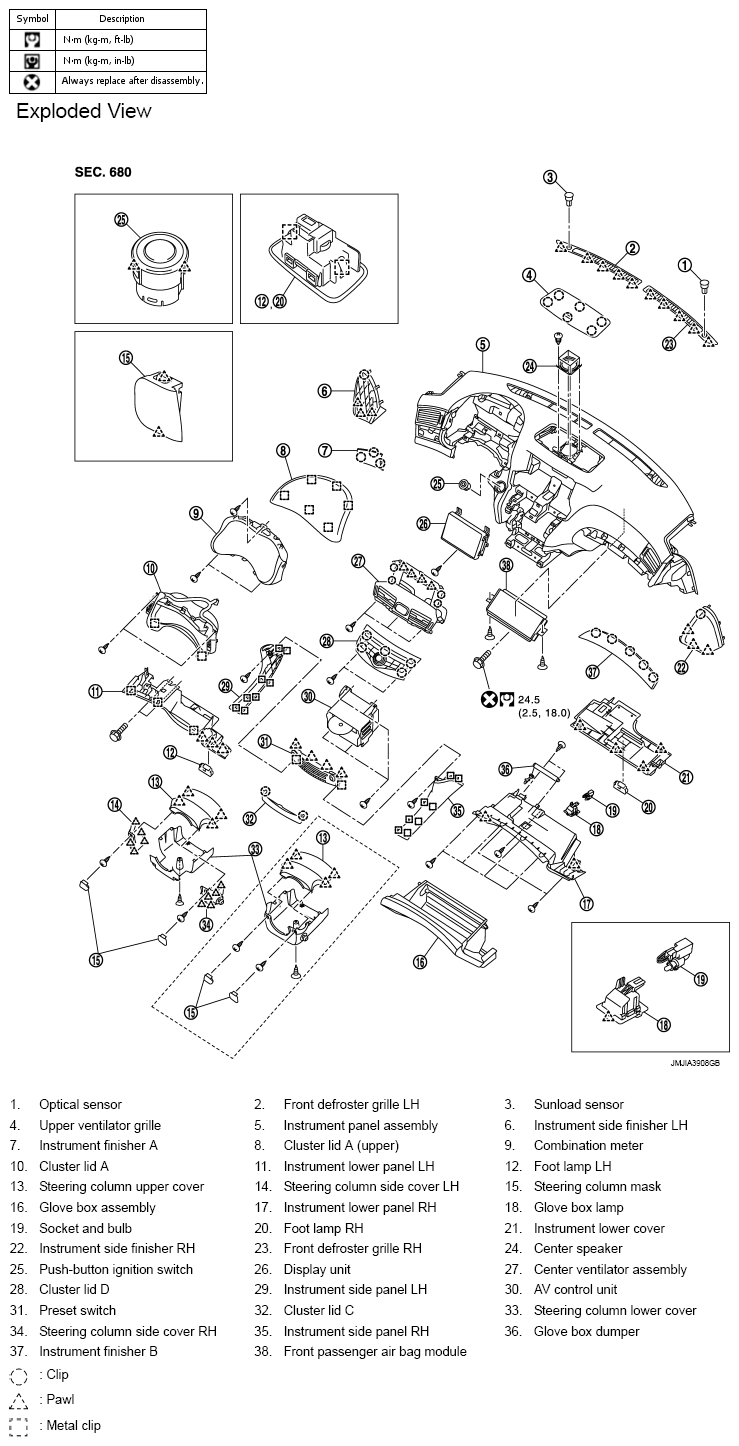

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
G08658303Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
