System Diagram

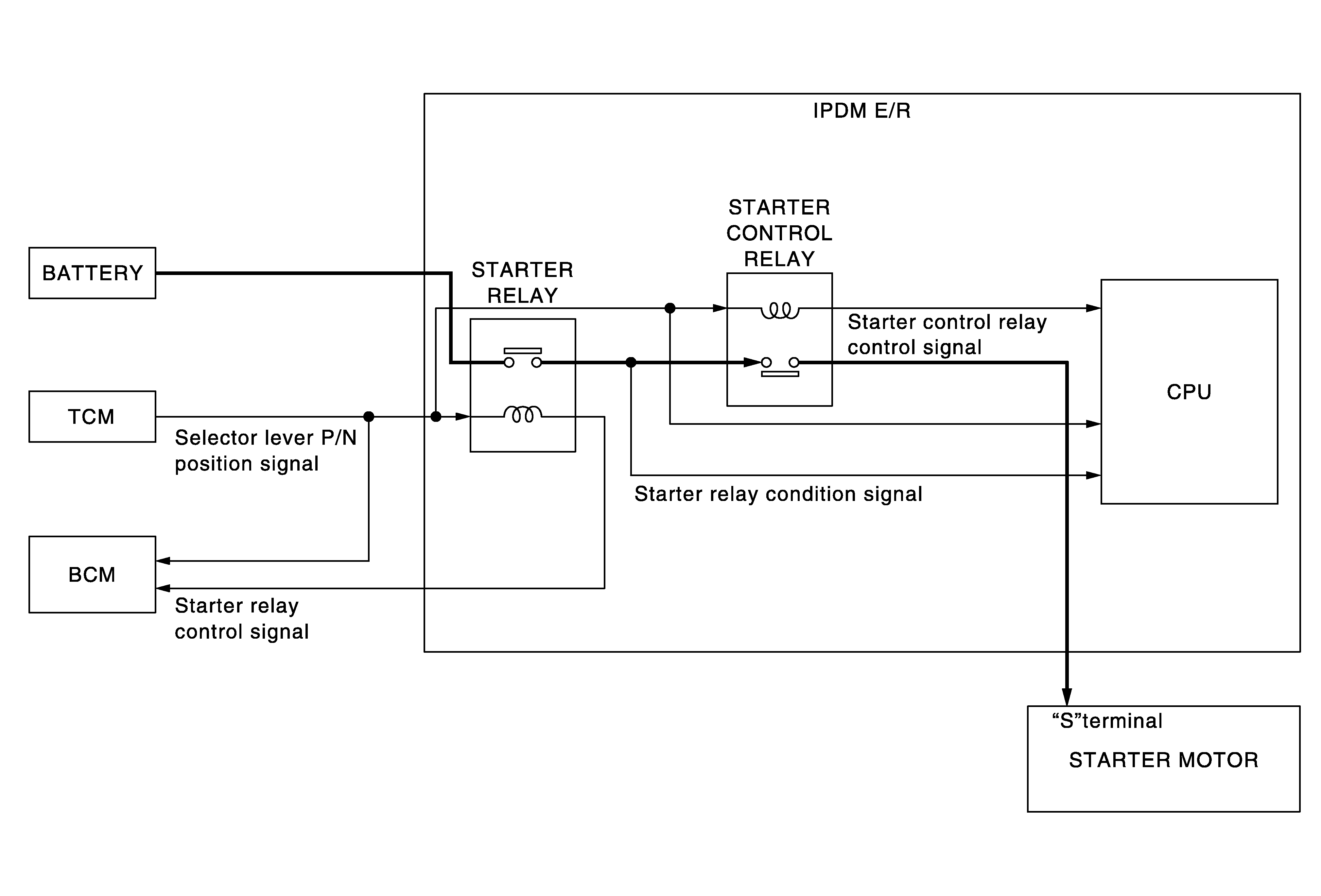

Fig 1: Identifying Starting System Diagram (A/T)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
