Engine Lubrication System Schematic

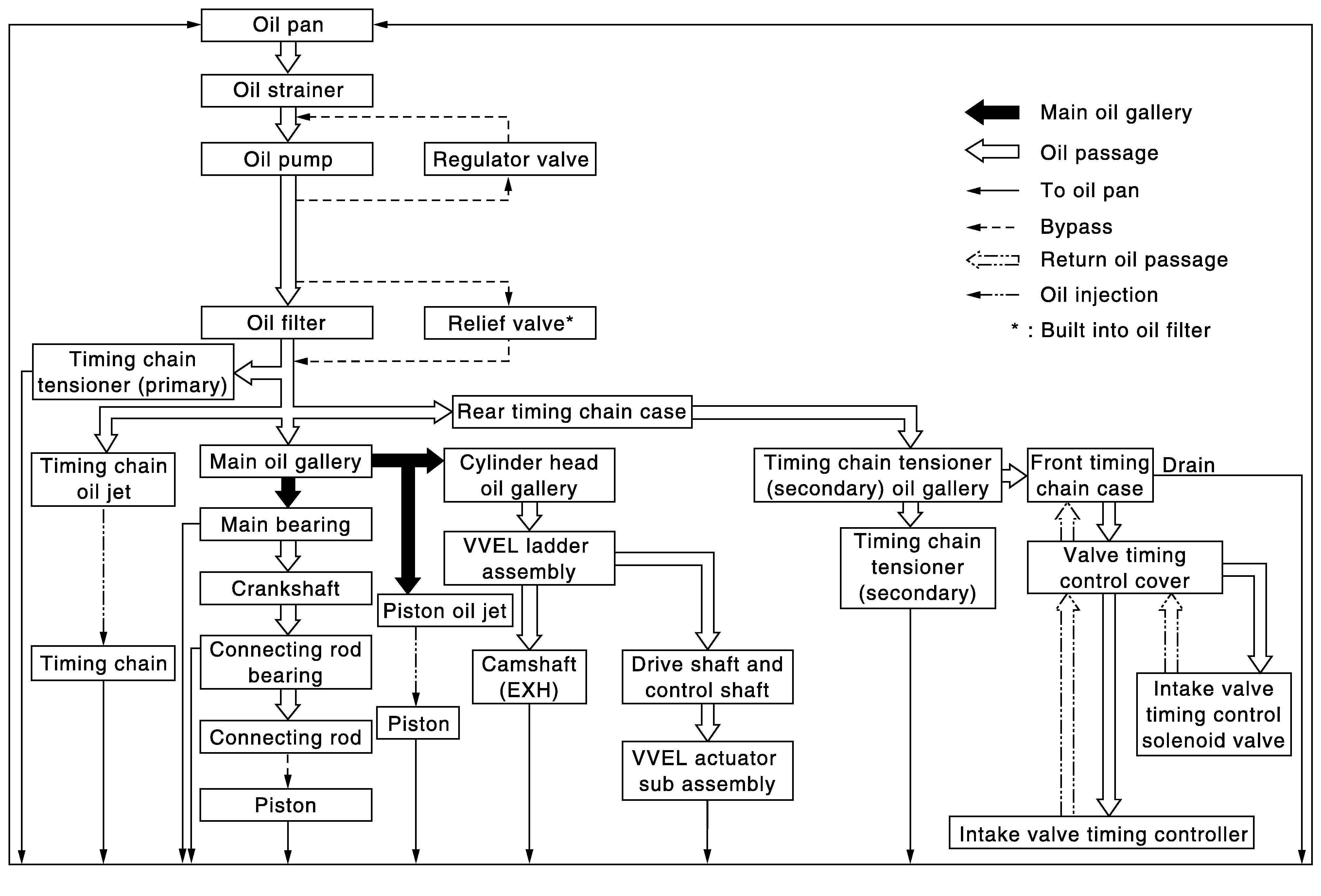

Fig 1: Identifying Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
