Exploded View

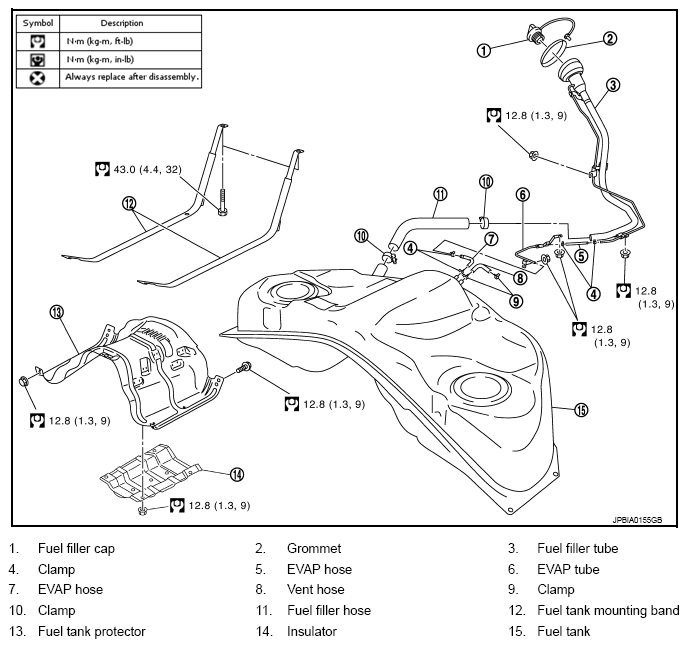

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
G08648148Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for to symbols in the figure.
