Component Inspection (Cooling Fan Relay)

  1. CHECK COOLING FAN RELAY
    1. Turn ignition switch OFF.
    2. Remove cooling fan relay.
    3. Check the continuity between cooling fan relay terminals under the following conditions.
      Terminals Conditions Continuity
      3 and 5 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace cooling fan relay.

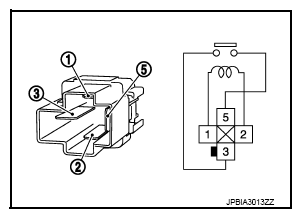

      Fig 1: Identifying Relay Terminals
      G08649273Courtesy of NISSAN NORTH AMERICA, INC.
