Check Ignition Timing

  1. Attach timing light to loop wire as below.

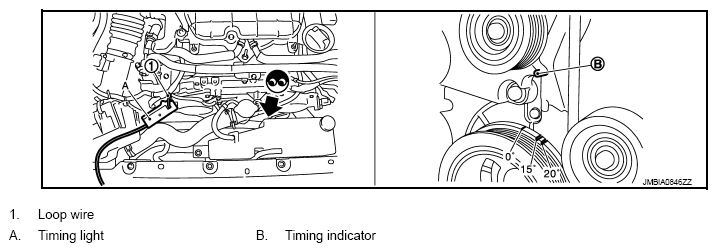

    Fig 1: Checking Ignition Timing
    G08649288Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.
