Removal and Installation: Removal

  1. Remove the instrument lower cover. Refer to "EXPLODED VIEW ".
  2. Remove the dash side finisher (LH). Refer to "DASH SIDE FINISHER: REMOVAL AND INSTALLATION ".
  3. Remove the ECM cover bolts (A) and remove ECM cover (1).

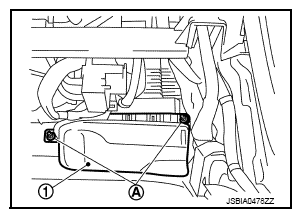

    Fig 1: Identifying ECM Cover And Bolts
    G08649294Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect ECM harness connectors.
  5. Remove ECM bracket bolt (A)
  6. Slide the ECM bracket (1) upward and then remove ECM bracket with ECM.
  7. Remove ECM bracket bolts (B) and separate ECM (2) and ECM bracket.

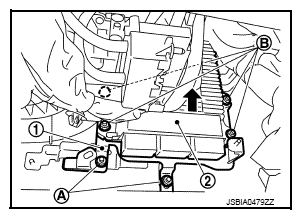

    Fig 2: Identifying ECM, ECM Bracket And Bolts
    G08649295Courtesy of NISSAN NORTH AMERICA, INC.
