System - Engine Mechanical & Other

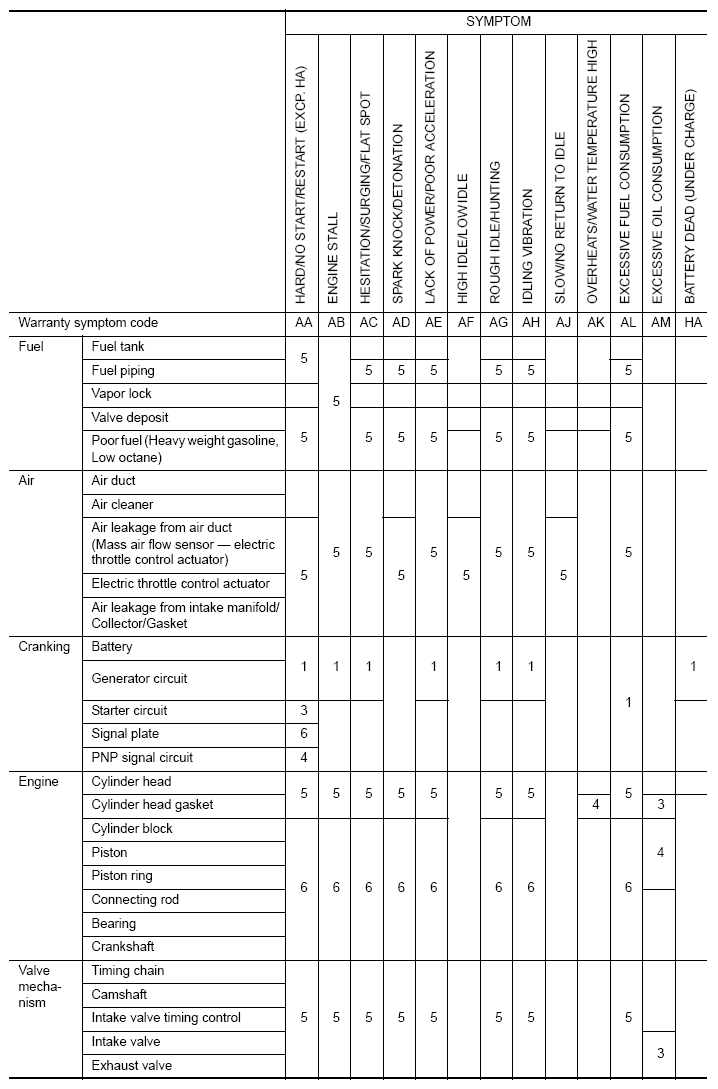

Fig 1: Identifying Engine Mechanical & Other System Symptoms Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Engine Mechanical & Other System Symptoms Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.
