ENGINE CONTROL SYSTEM: Component Parts Location

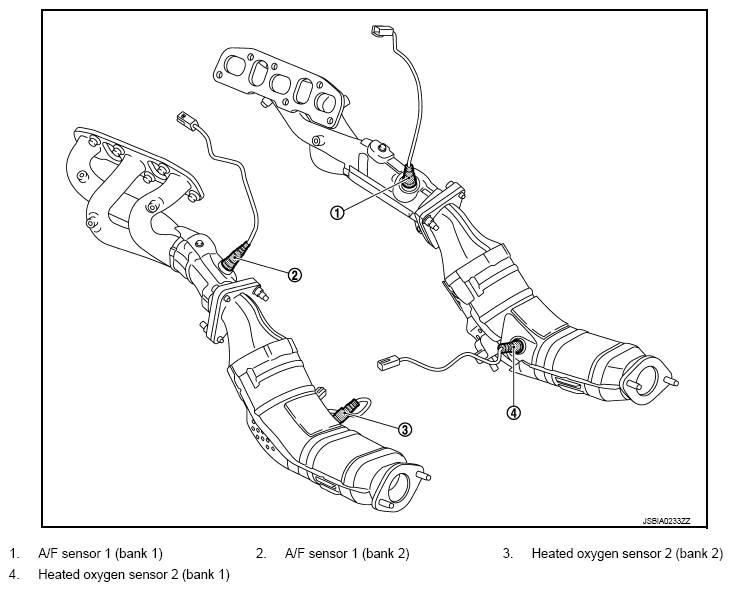

Fig 1: Engine Control System Component Parts Location (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

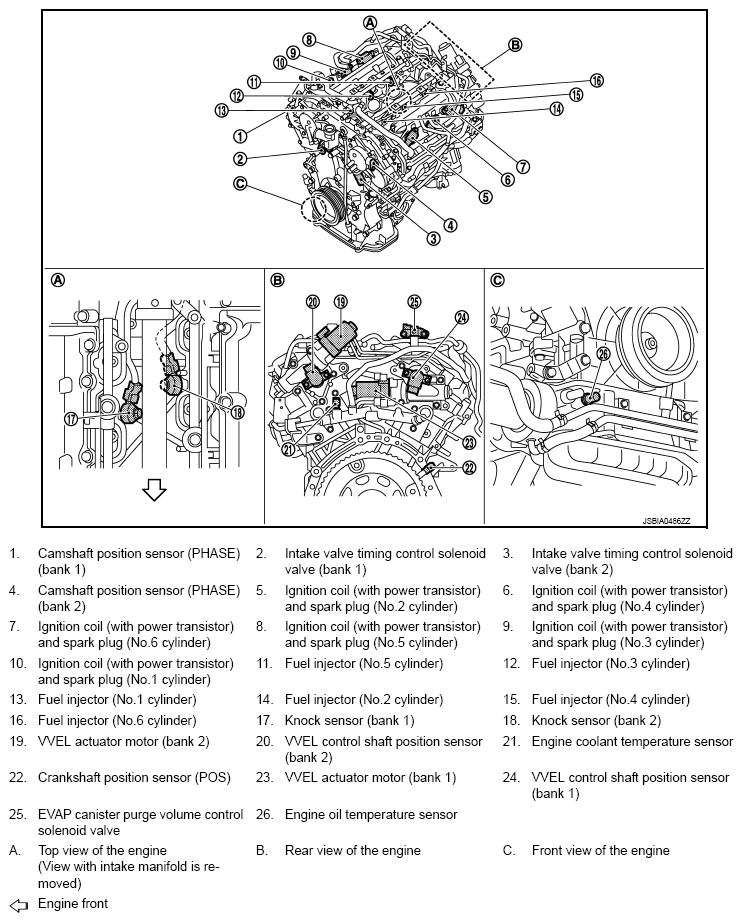

Fig 2: Engine Control System Component Parts Location (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

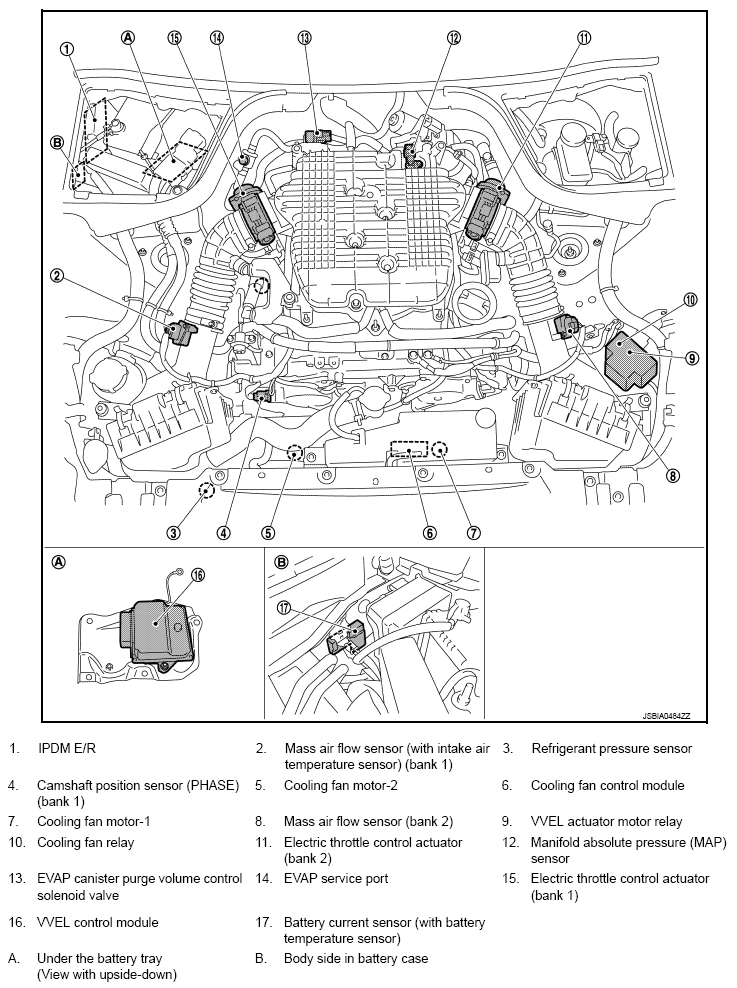

Fig 3: Engine Control System Component Parts Location (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

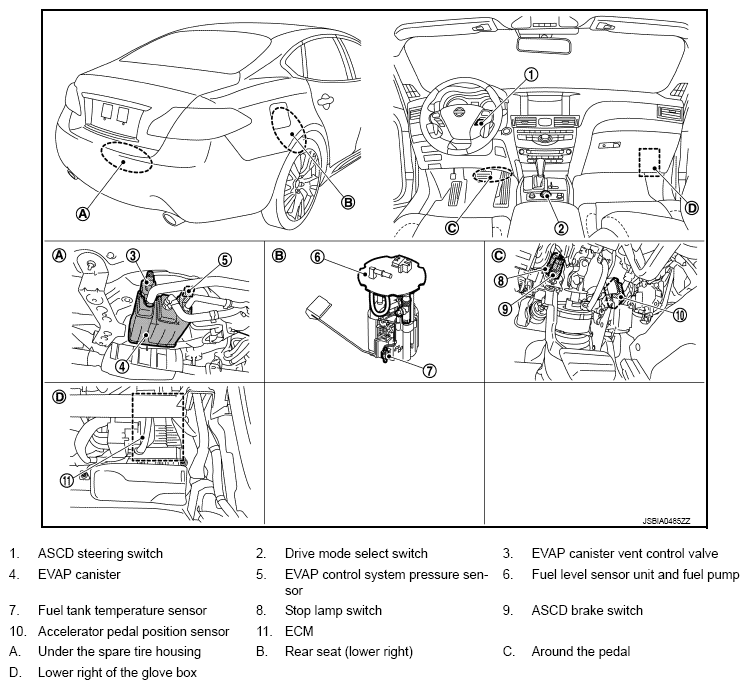

Fig 4: Engine Control System Component Parts Location (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
