Intake Air Temperature Sensor

The intake air temperature sensor is built-into the mass air flow sensor (1). The sensor detects intake air temperature and transmits a signal to the ECM.

The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the rise in temperature.

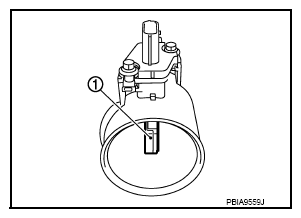

Fig 1: Mass Air Flow Sensor With Intake Air Temperature Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

< Reference data >

Intake air temperature [°C (°F)]

Voltage⁽¹⁾ (V)

Resistance (kΩ)

25 (77)

3.3

1.800 - 2.200

80 (176)

1.2

0.283 - 0.359

⁽¹⁾	These data are reference values and are measured between ECM terminals 67 (Intake air temperature sensor) and 68 (Sensor ground).

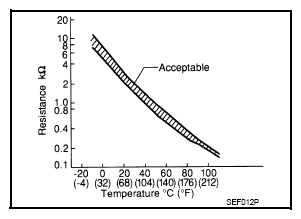

Fig 2: Identifying Intake Air Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.
