Operation Procedure

  1. Turn ignition switch ON and wait 20 seconds.
  2. SRT status is indicated as shown below.
    • ECM continues to illuminate MIL if all SRT codes are set.
    • ECM blinks MIL for about 10 seconds if all SRT codes are not set.

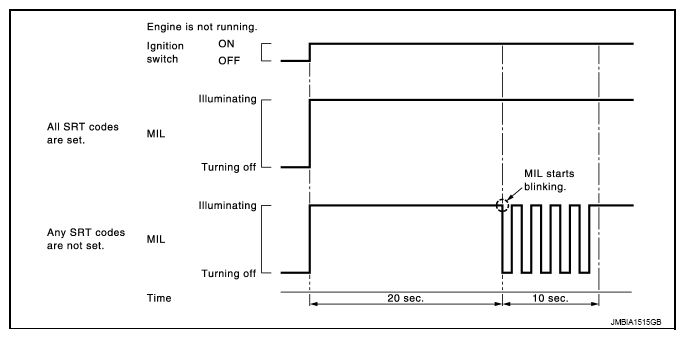

      Fig 1: Identifying SRT Status Blinking Pattern
      G08649120Courtesy of NISSAN NORTH AMERICA, INC.
