Engine Control System - Introduction
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ENGINE CONTROL SYSTEM: System Diagram

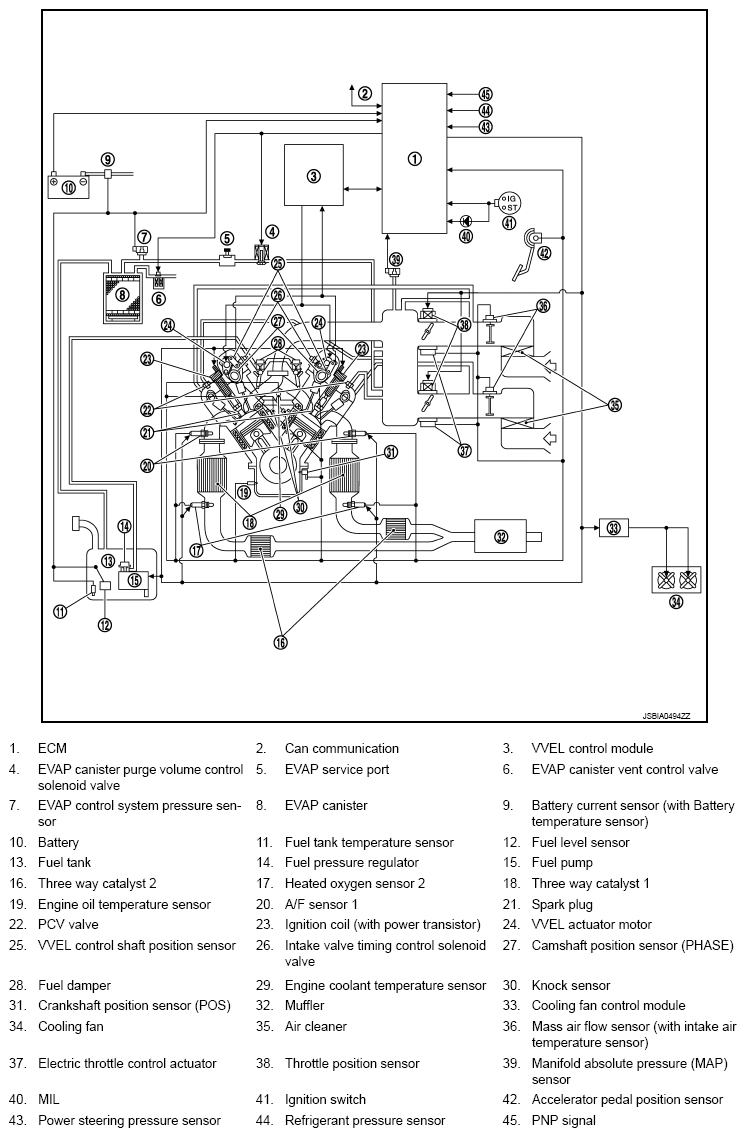

Fig 1: Identifying Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
