Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, release the metal clip and pawls, then lift the front power window and door lock/unlock switch (1) from the front door finisher (RH).

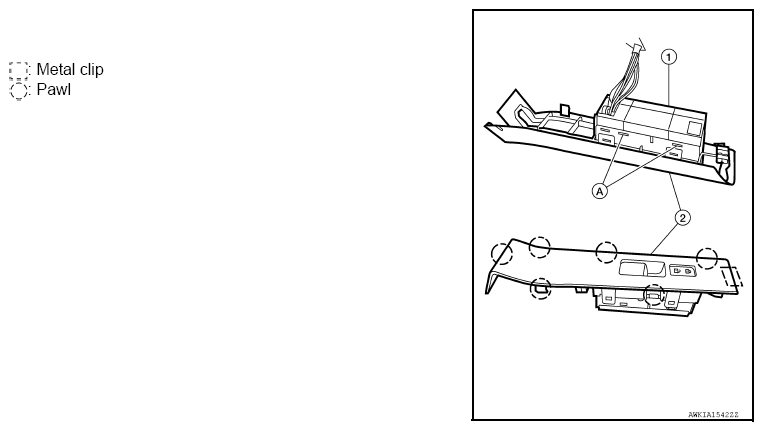

    Fig 1: Identifying Power Window And Door Lock Switch Tabs
    G08711966Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the harness connectors, then remove the assembly from the door finisher.
  3. Release the four tabs (A), two on each side, then separate the front power window and door lock/unlock switch (1) from the finisher (2).
