Connector Terminal Identification

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

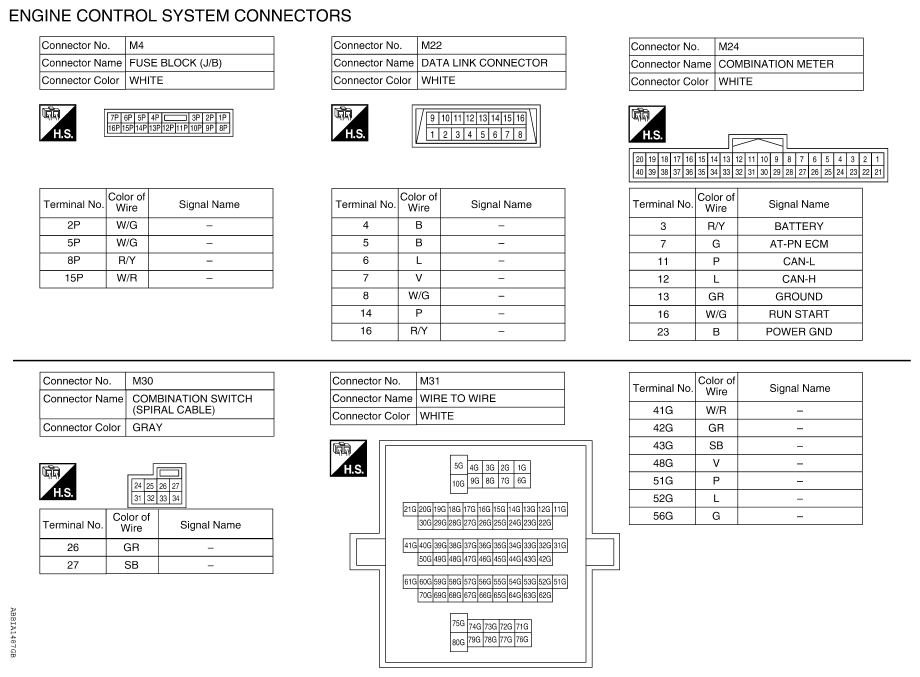

Fig 1: Engine Control System Connector End View (1 Of 16)
G08710504Courtesy of NISSAN NORTH AMERICA, INC.

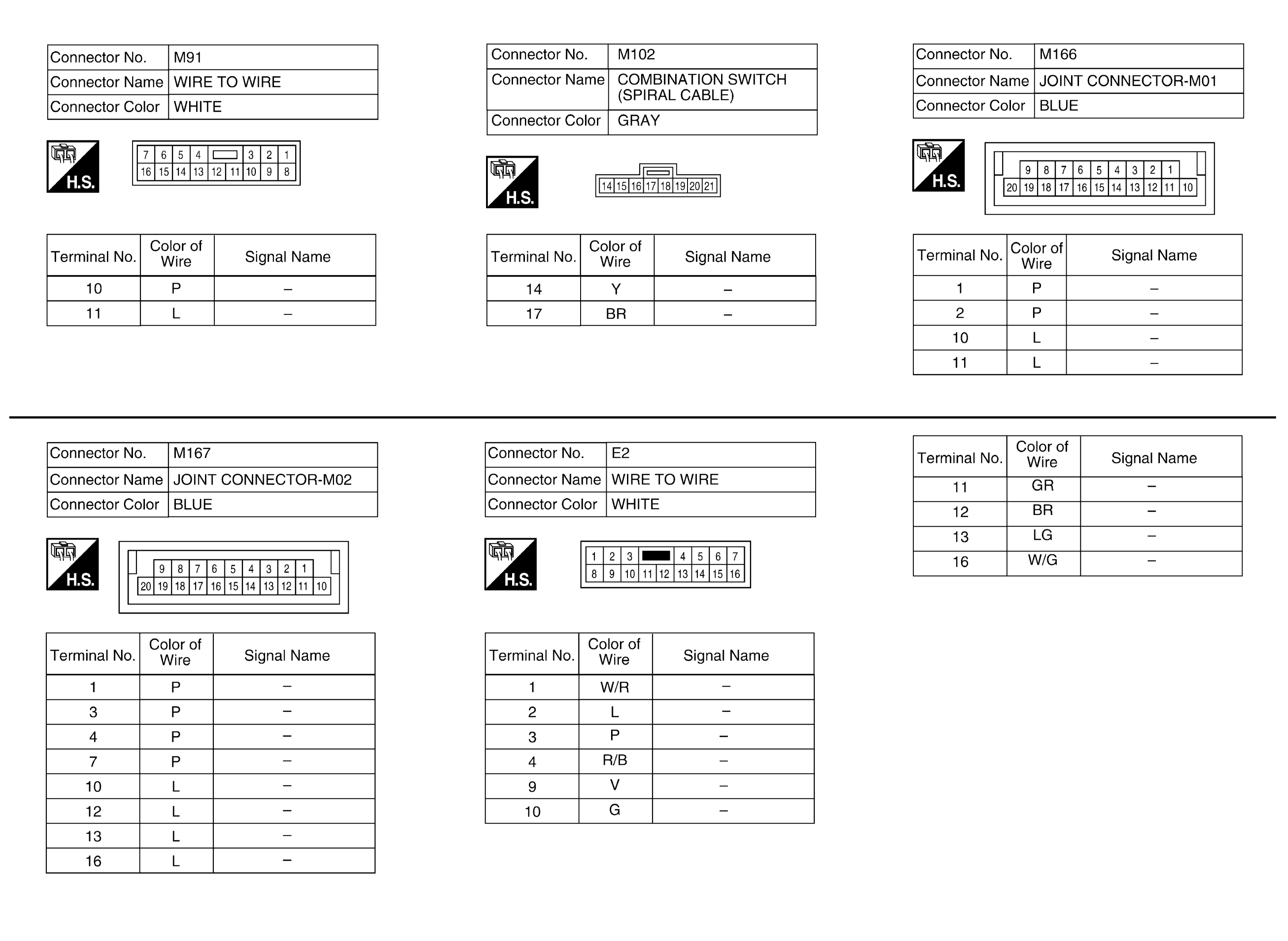

Fig 2: Engine Control System Connector End View (2 Of 16)
G08710505Courtesy of NISSAN NORTH AMERICA, INC.

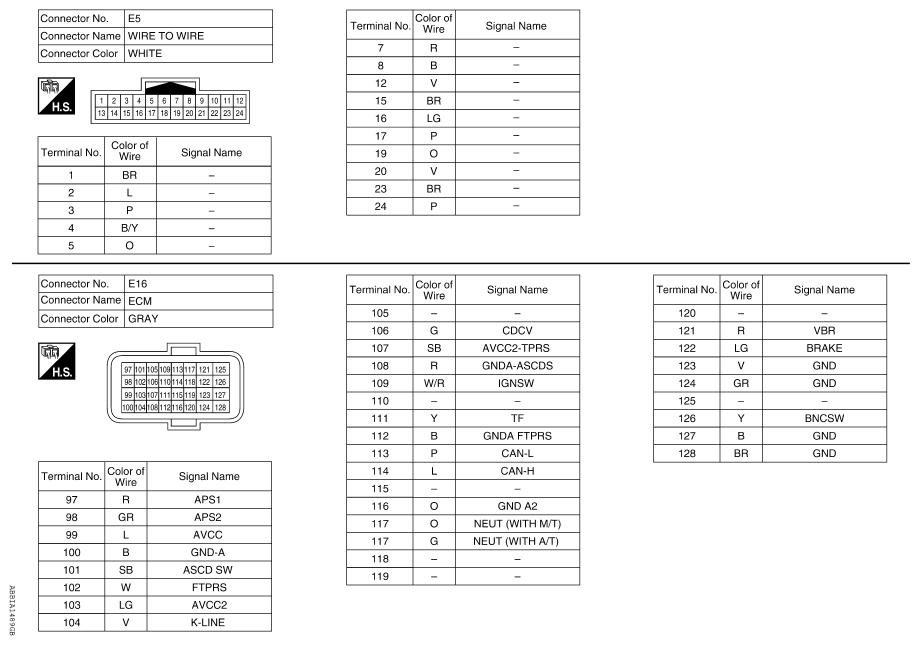

Fig 3: Engine Control System Connector End View (3 Of 16)
G08710506Courtesy of NISSAN NORTH AMERICA, INC.

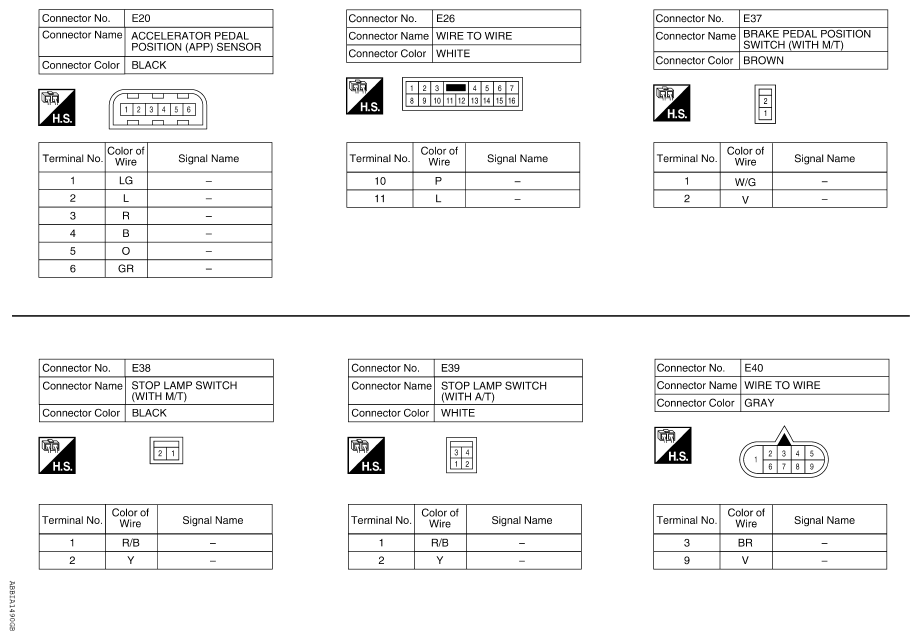

Fig 4: Engine Control System Connector End View (4 Of 16)
G08710507Courtesy of NISSAN NORTH AMERICA, INC.

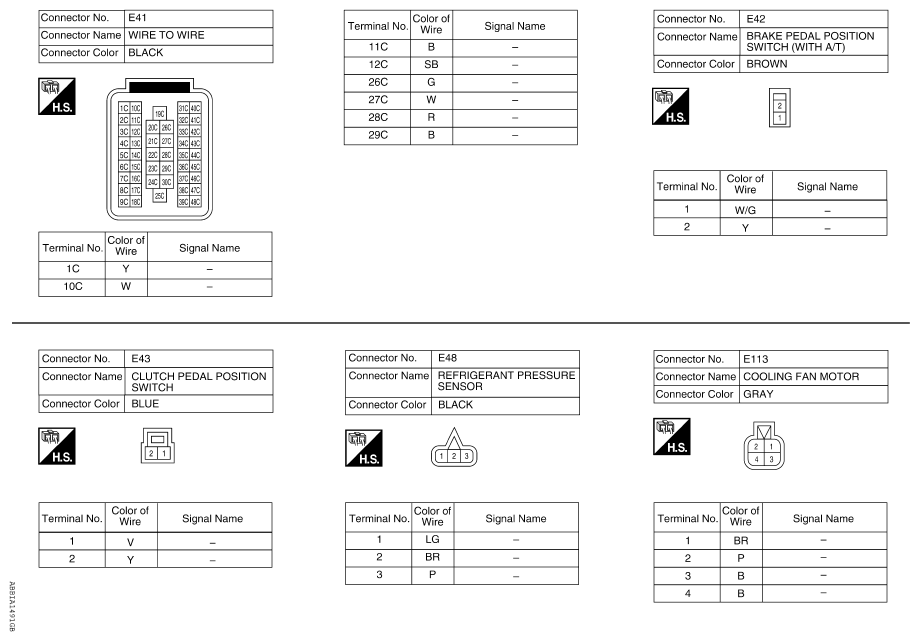

Fig 5: Engine Control System Connector End View (5 Of 16)
G08710508Courtesy of NISSAN NORTH AMERICA, INC.

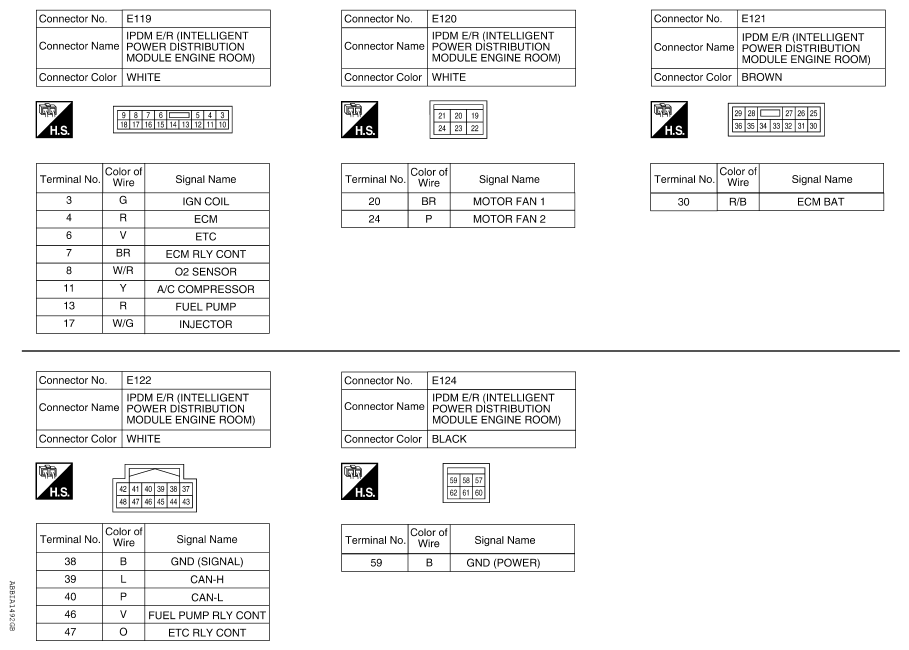

Fig 6: Engine Control System Connector End View (6 Of 16)
G08710509Courtesy of NISSAN NORTH AMERICA, INC.

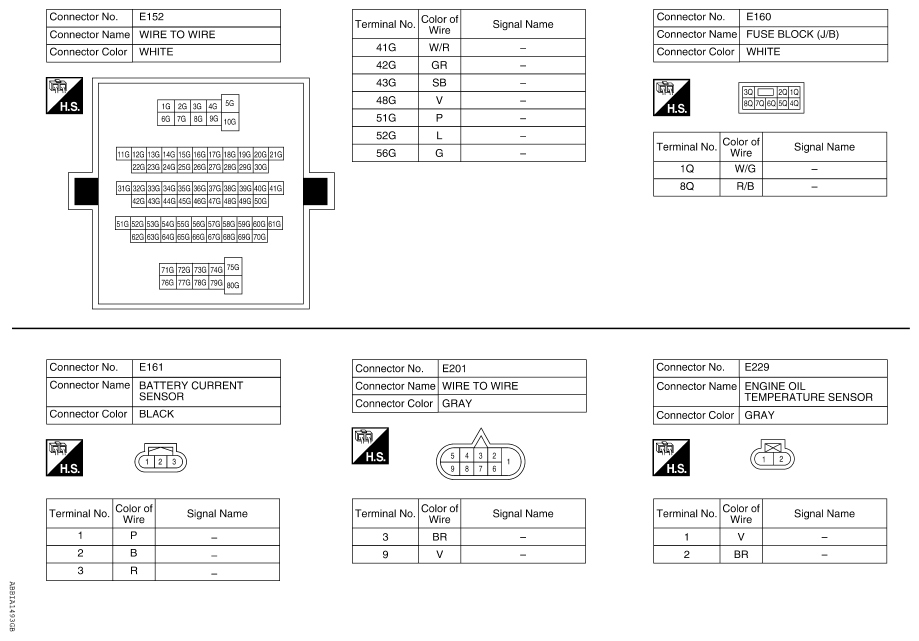

Fig 7: Engine Control System Connector End View (7 Of 16)
G08710510Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Engine Control System Connector End View (8 Of 16)
G08710511Courtesy of NISSAN NORTH AMERICA, INC.

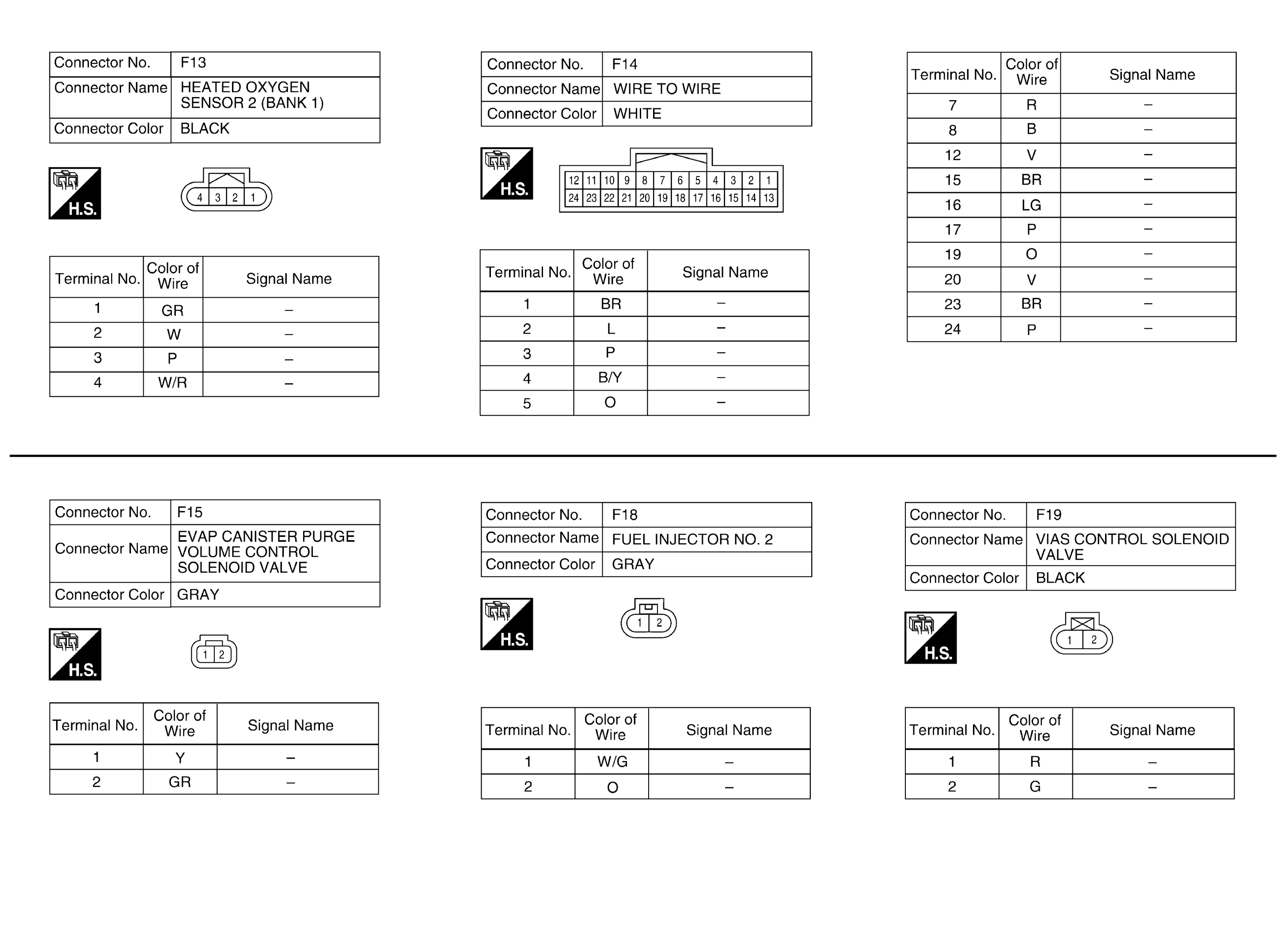

Fig 9: Engine Control System Connector End View (9 Of 16)
G08710512Courtesy of NISSAN NORTH AMERICA, INC.

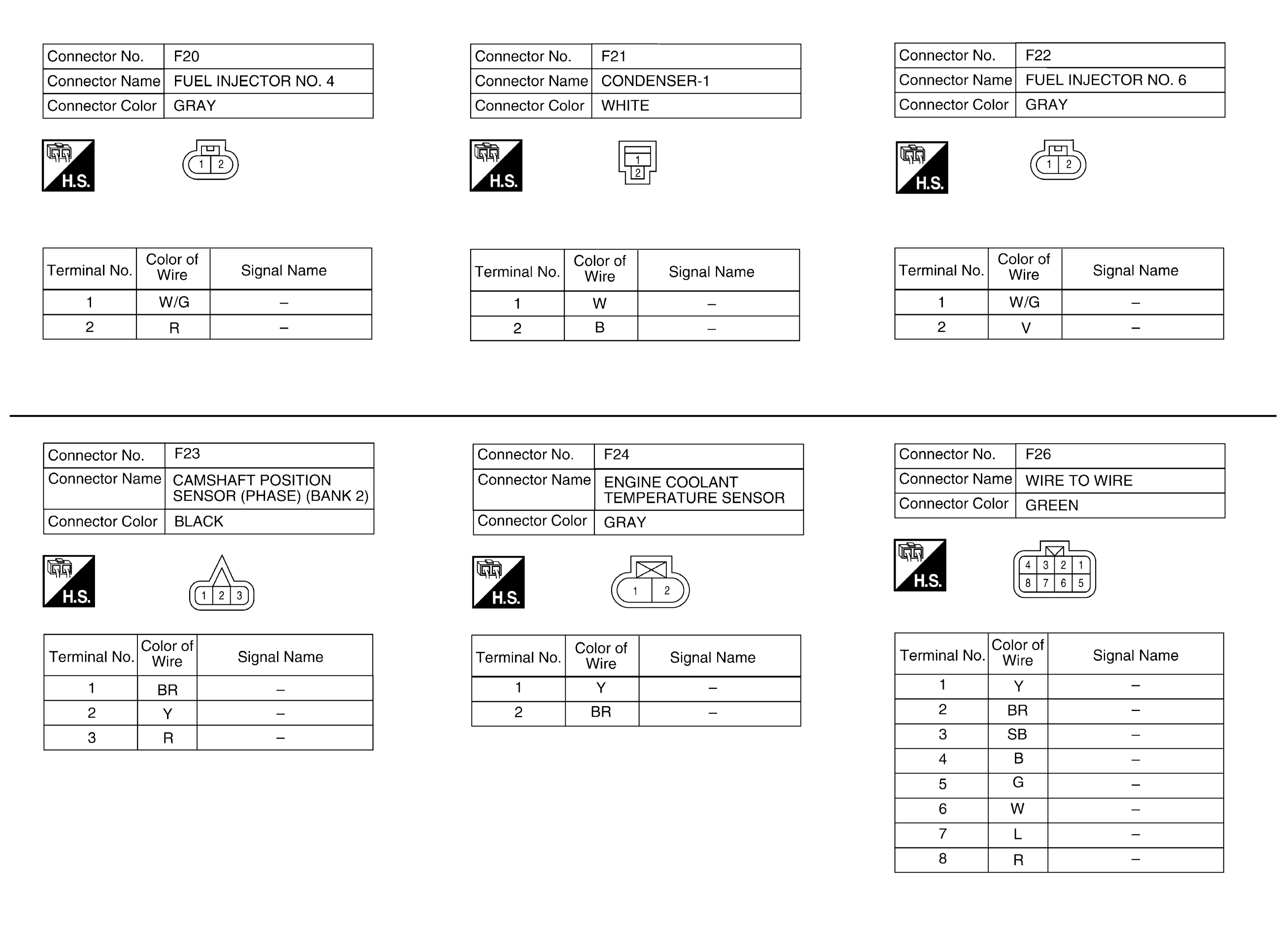

Fig 10: Engine Control System Connector End View (10 Of 16)
G08710513Courtesy of NISSAN NORTH AMERICA, INC.

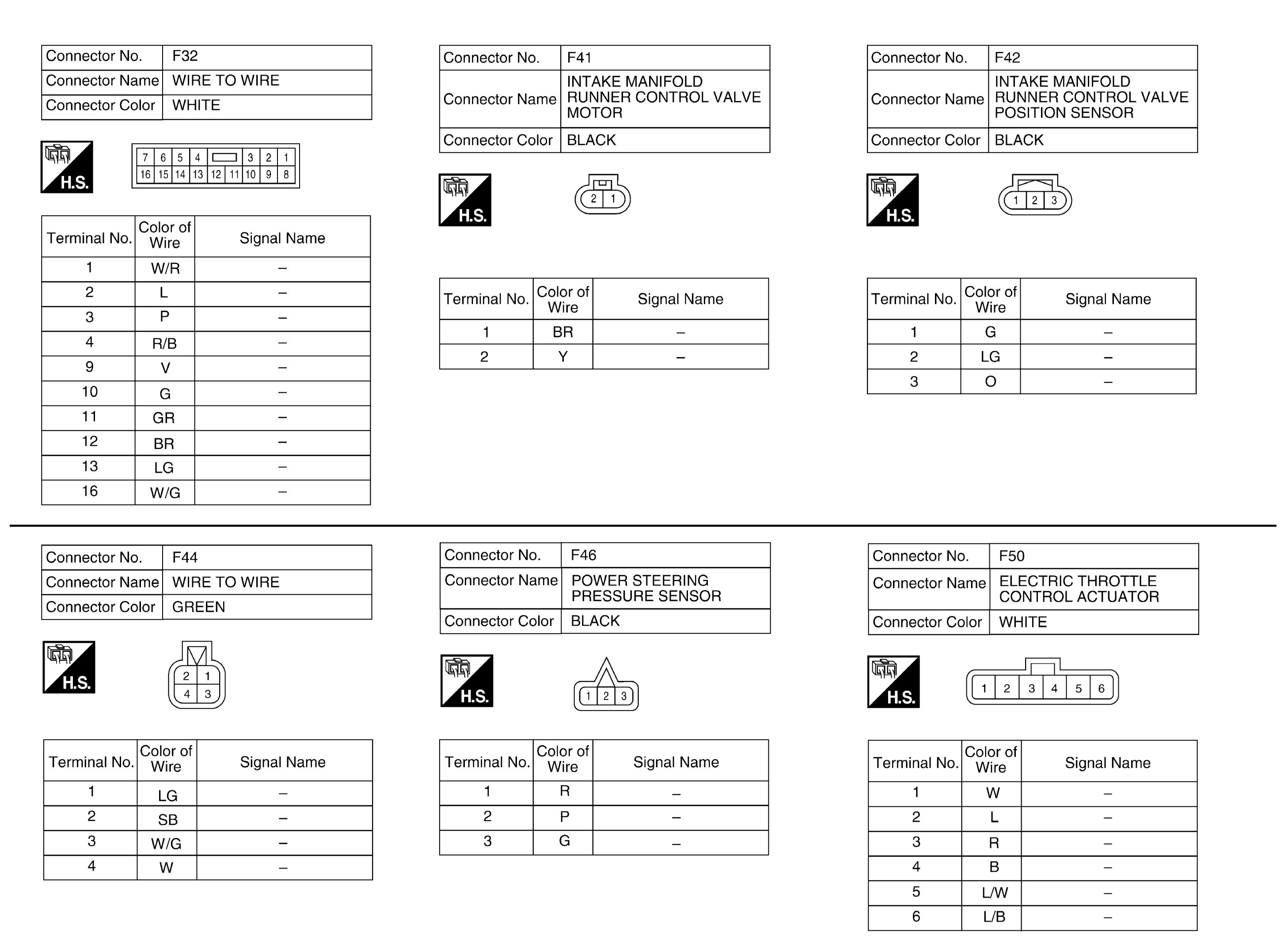

Fig 11: Engine Control System Connector End View (11 Of 16)
G08710514Courtesy of NISSAN NORTH AMERICA, INC.

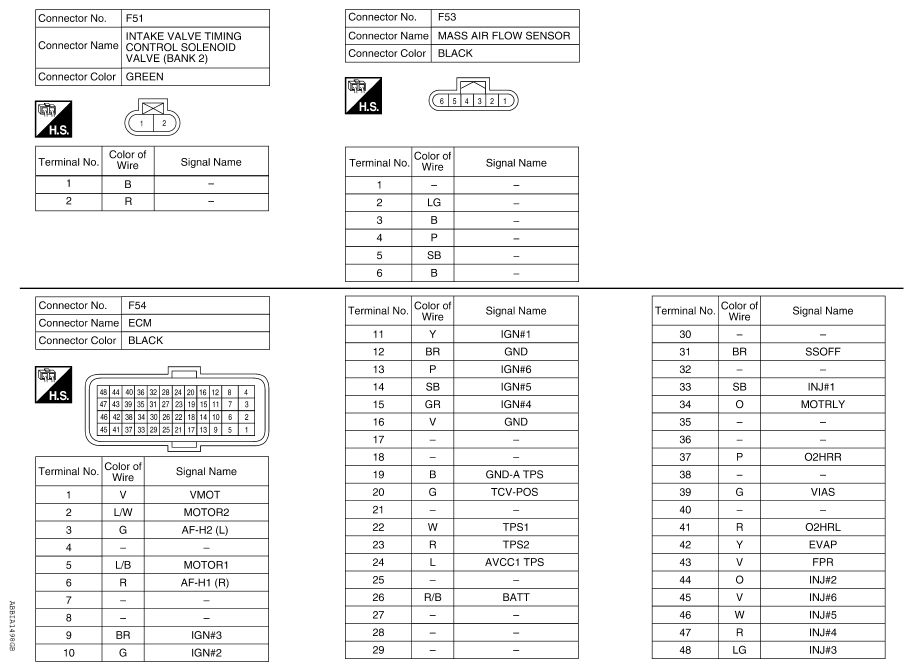

Fig 12: Engine Control System Connector End View (12 Of 16)
G08710515Courtesy of NISSAN NORTH AMERICA, INC.

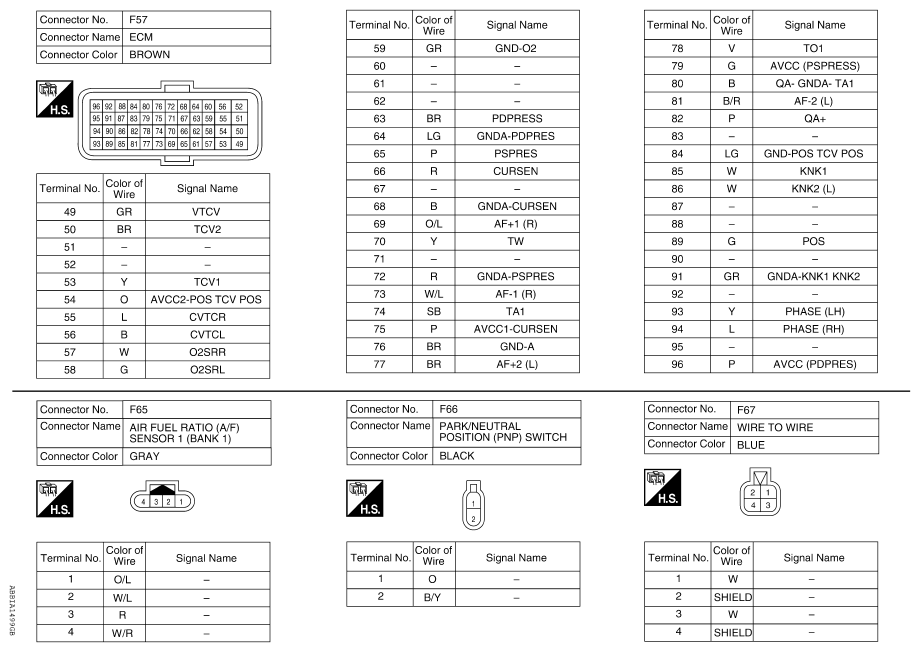

Fig 13: Engine Control System Connector End View (13 Of 16)
G08710516Courtesy of NISSAN NORTH AMERICA, INC.

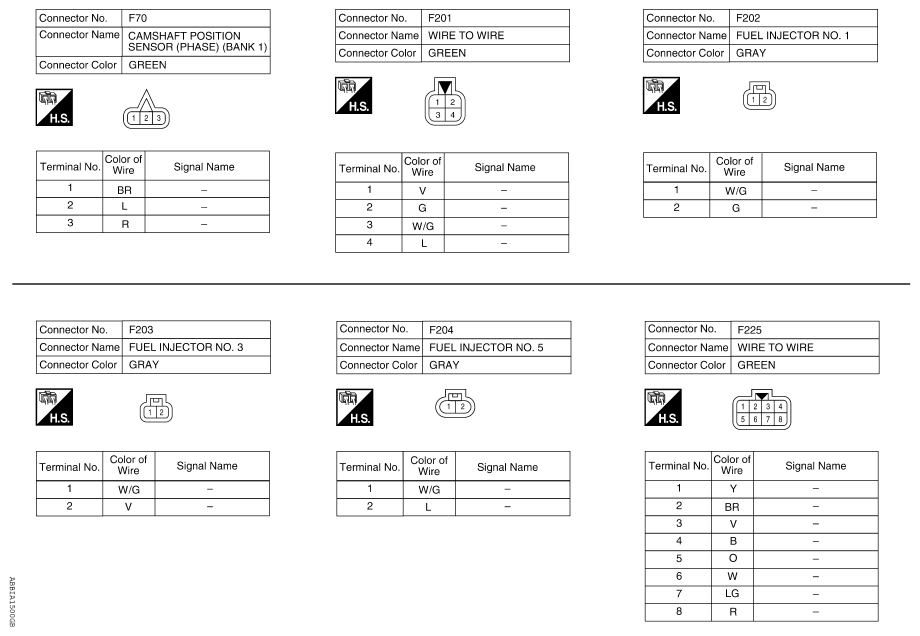

Fig 14: Engine Control System Connector End View (14 Of 16)
G08710517Courtesy of NISSAN NORTH AMERICA, INC.

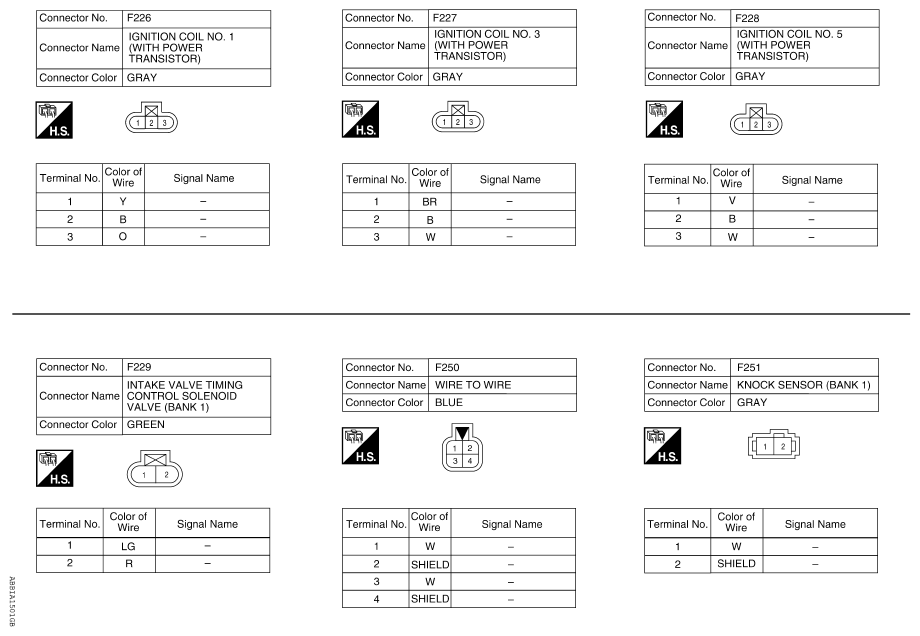

Fig 15: Engine Control System Connector End View (15 Of 16)
G08710518Courtesy of NISSAN NORTH AMERICA, INC.

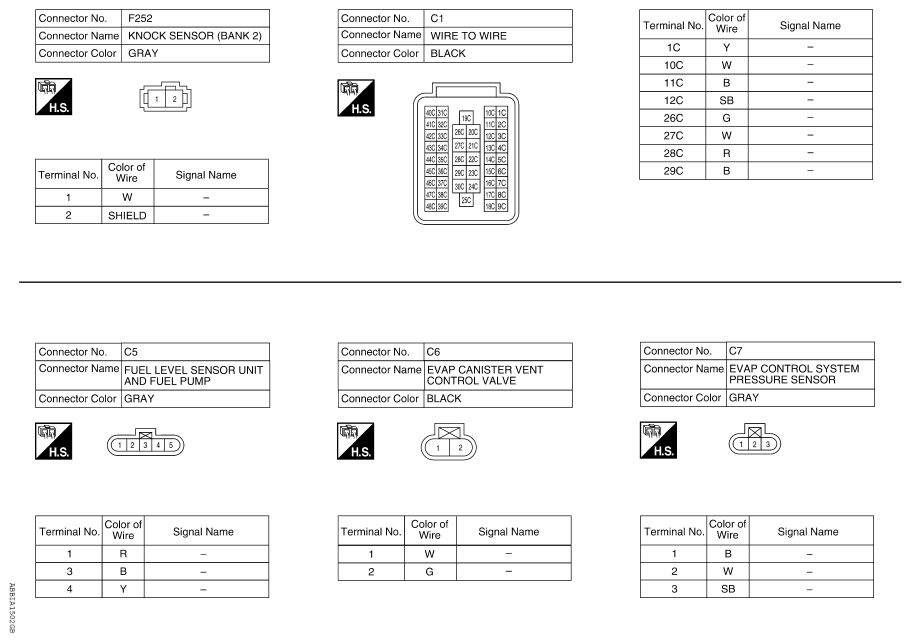

Fig 16: Engine Control System Connector End View (16 Of 16)
G08710519Courtesy of NISSAN NORTH AMERICA, INC.
