AWD: Exploded View: VK56VD
Joint of high pressure piping and steering gear assembly: Eye bolt type

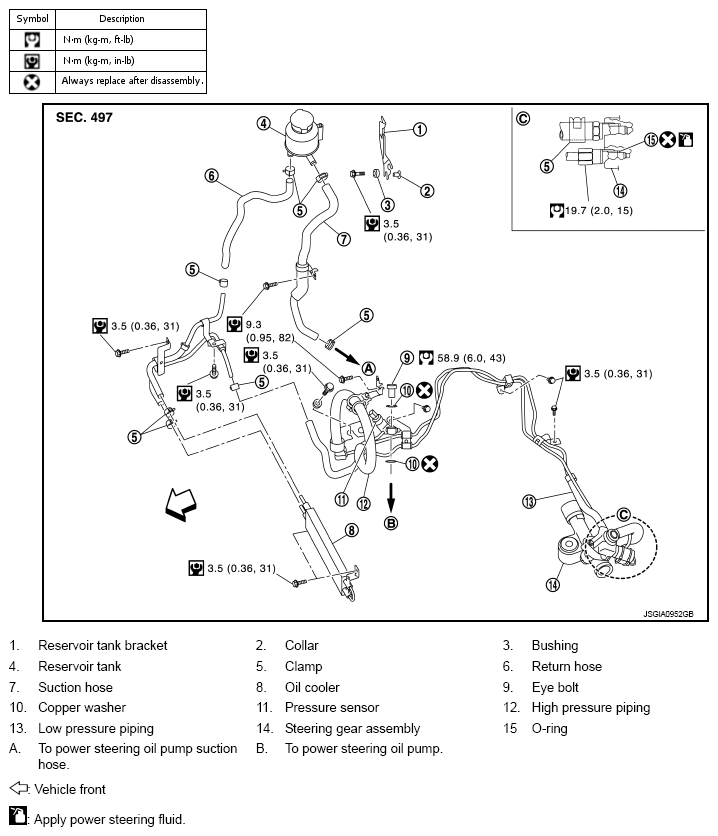

Fig 1: Eye Bolt Type Joint Of High Pressure Piping And Steering Gear Assembly With Torque Specifications (VK56VD)
Refer to "COMPONENTS " for symbols not described on the above.
Joint of high pressure piping and steering gear assembly: Flare nut type

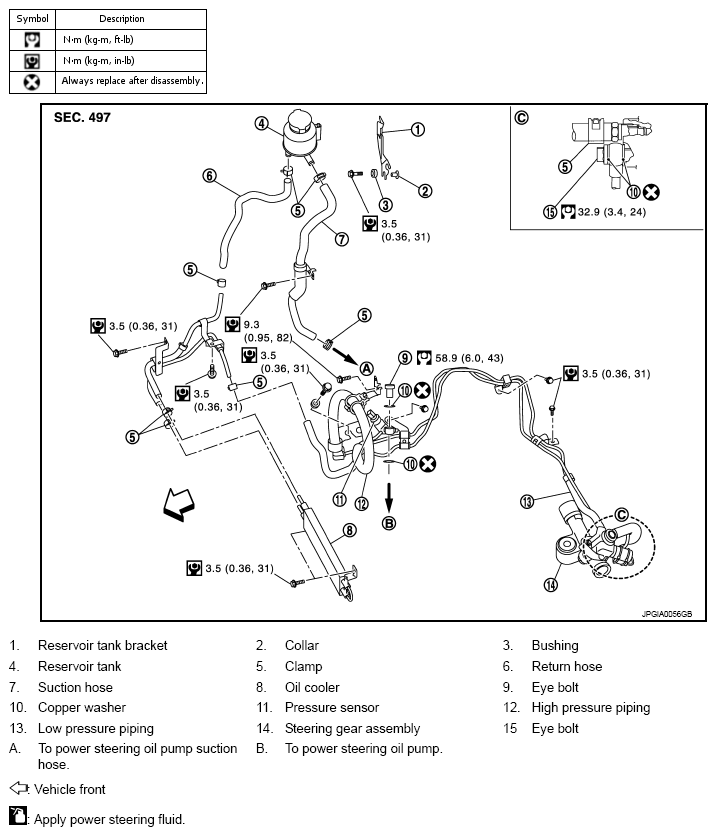

Fig 2: Flare Nut Type Joint Of High Pressure Piping And Steering Gear Assembly With Torque Specifications (VK56VD)
Refer to "COMPONENTS " for symbols not described on the above.
