Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• To install the slide plate (1), create clearance (L) in the steering column assembly mounting area (2) as follows.

  L: 2.0 mm (0.079 in)

  Fig 1: Identifying Steering Column Assembly Slide Plate And Clearance

  Courtesy of NISSAN NORTH AMERICA, INC.
• Tighten the mounting bolts and nuts in the order shown in the figure below when installing the steering column assembly.
• Be careful of the following points when installing the steering column assembly.
  CAUTION:

  • Never give axial impact to steering column assembly during installation.
  • Never move steering gear assembly.
  • Never reuse the joint mounting nut (lower shaft side).
• Perform inspection after installation. Refer to "INSPECTION AND ADJUSTMENT ".

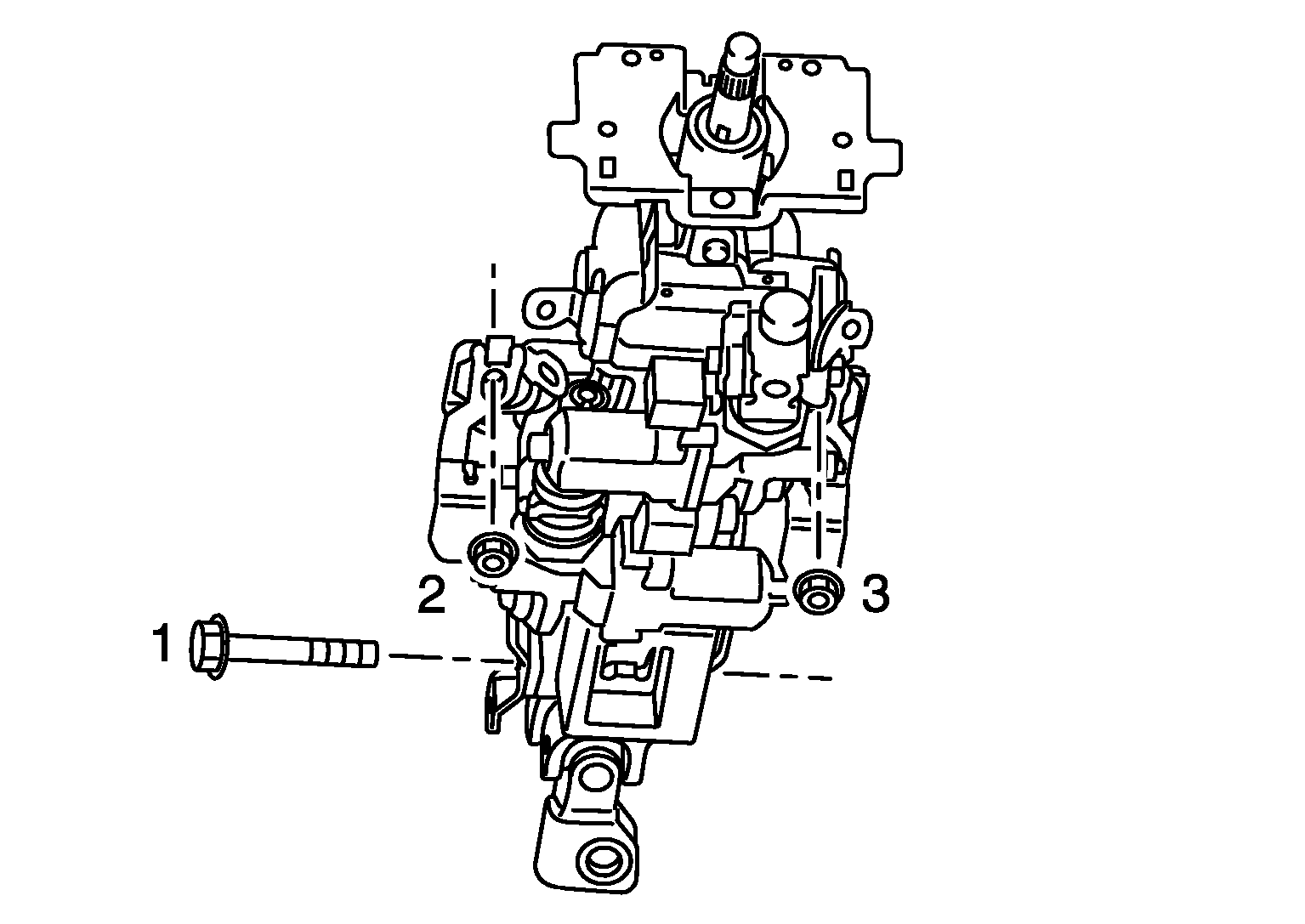

  Fig 2: Identifying Steering Column Assembly Mounting Bolt Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.
