Symptom Table 2

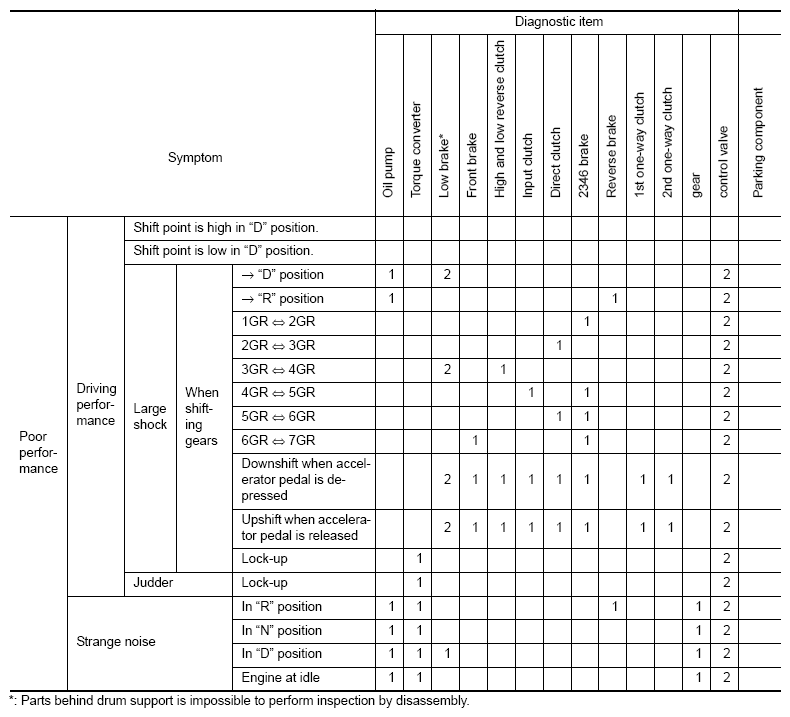

Fig 1: Symptom Table 2 (1 Of 5)

G08649402

Courtesy of NISSAN NORTH AMERICA, INC.

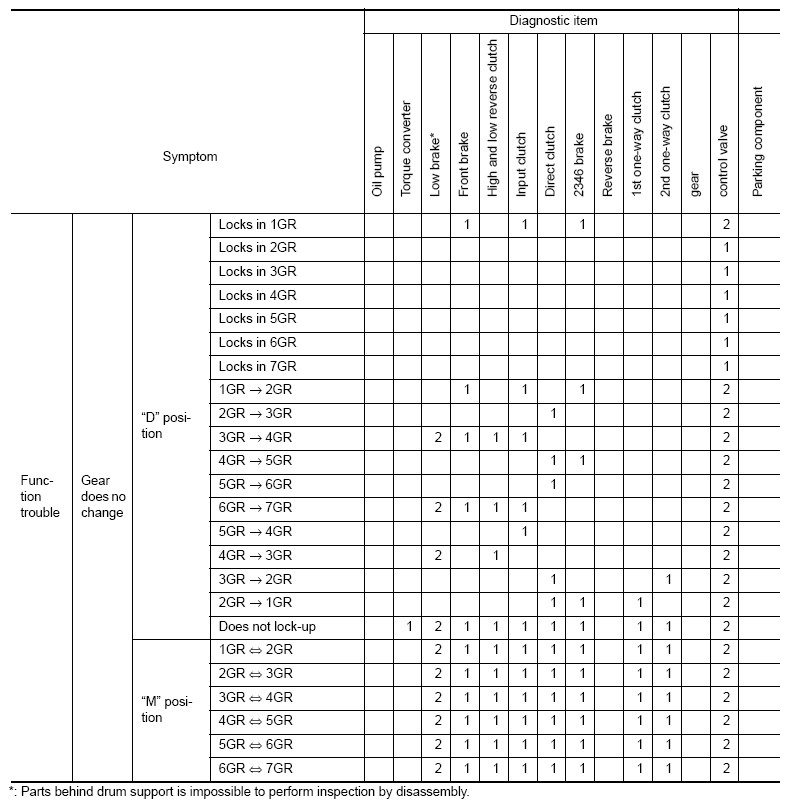

Fig 2: Symptom Table 2 (2 Of 5)

G08649403

Courtesy of NISSAN NORTH AMERICA, INC.

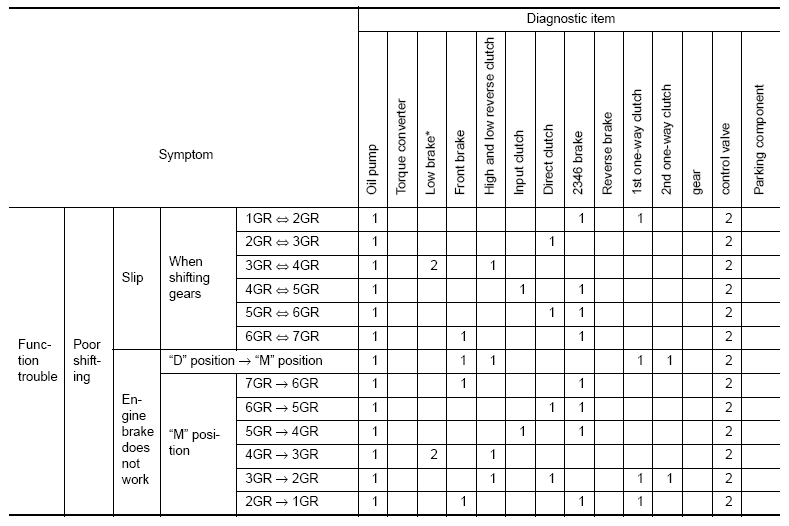

Fig 3: Symptom Table 2 (3 Of 5)

G08649404

Courtesy of NISSAN NORTH AMERICA, INC.

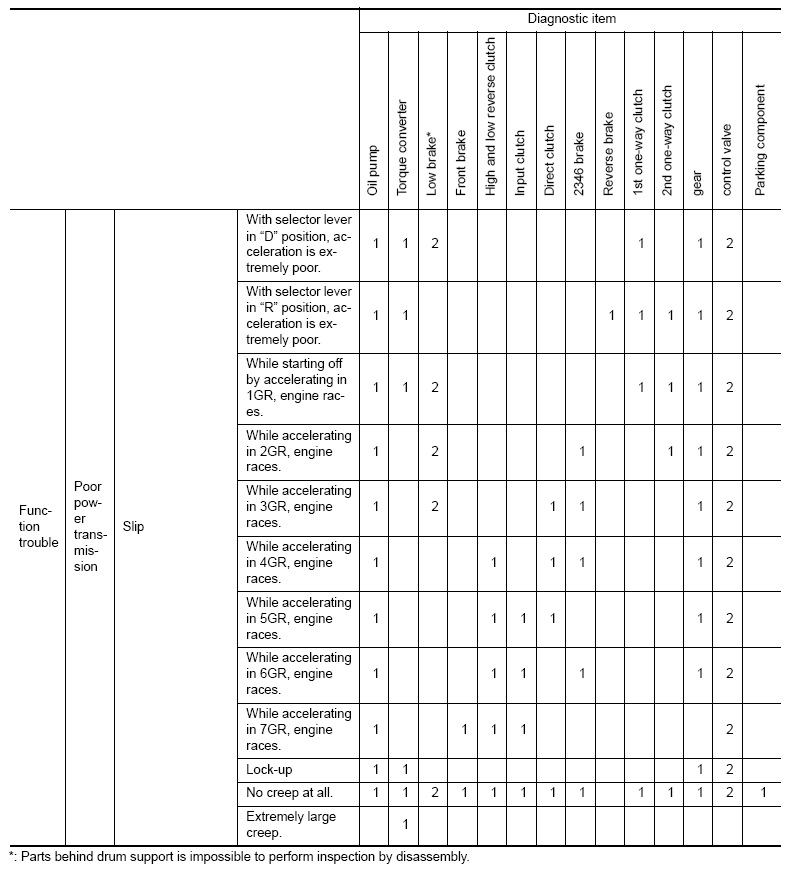

Fig 4: Symptom Table 2 (4 Of 5)

G08649405

Courtesy of NISSAN NORTH AMERICA, INC.

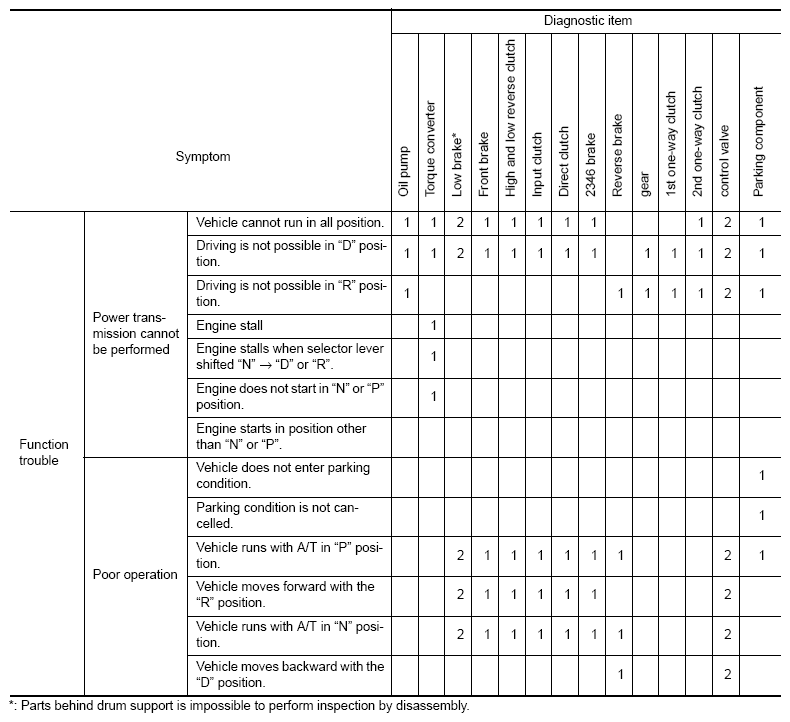

Fig 5: Symptom Table 2 (5 Of 5)

G08649406

Courtesy of NISSAN NORTH AMERICA, INC.
