"N" Position

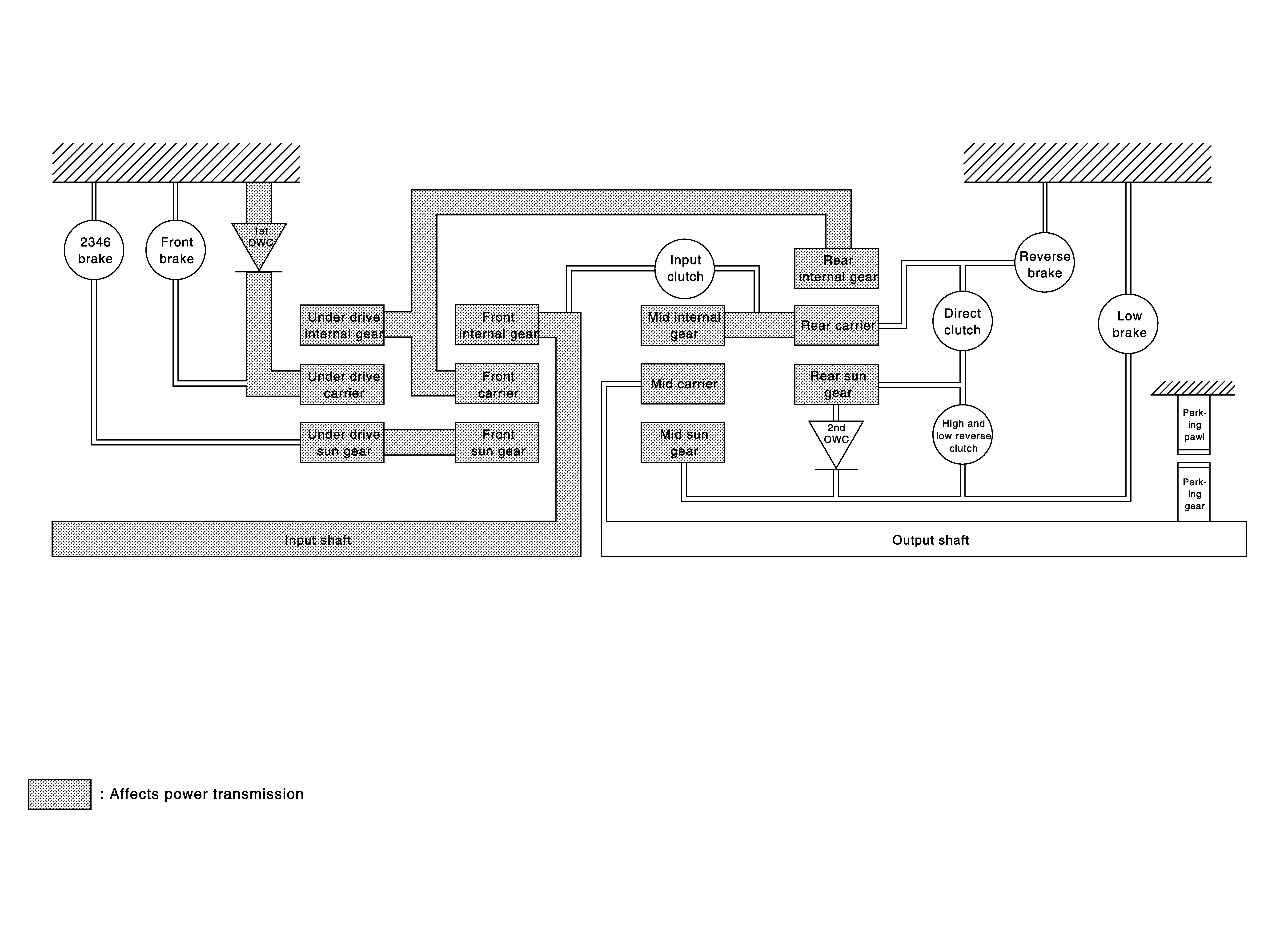

Fig 1: Power Transmission Block Diagram ("N" Position)

Courtesy of NISSAN NORTH AMERICA, INC.

Since the low brake is released, torque from the input shaft drive is not transmitted to the output shaft.
