Direct Clutch: Assembly

Install direct clutch component part (drive plates, driven plates, retaining plate and dish plate) to direct clutch drum.
- VQ37VHR models

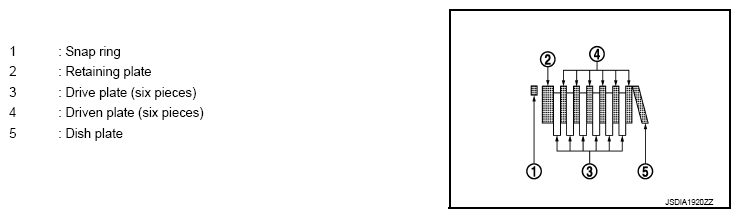

  Fig 1: Identifying Direct Clutch Component Part (Drive Plates, Driven Plates, Retaining Plate And Dish Plate) (VQ37VHR)
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: Check the order of plates.
- VK56VD models

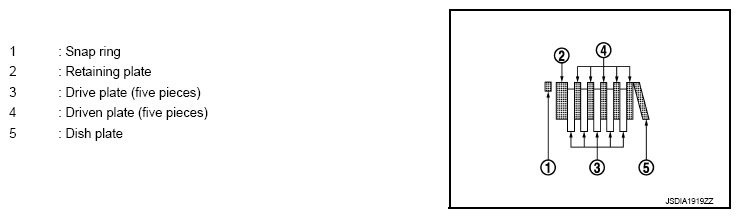

  Fig 2: Identifying Direct Clutch Component Part (Drive Plates, Driven Plates, Retaining Plate And Dish Plate) (VK56VD)
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: Check the order of plates.
Install snap rings to direct clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
Fig 3: Installing Snap Rings To Direct Clutch Drum Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
