Engine Control System - Introduction
>>
System Description
>>
System
>>
Electric Ignition System
>>
ELECTRIC IGNITION SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ELECTRIC IGNITION SYSTEM: System Diagram

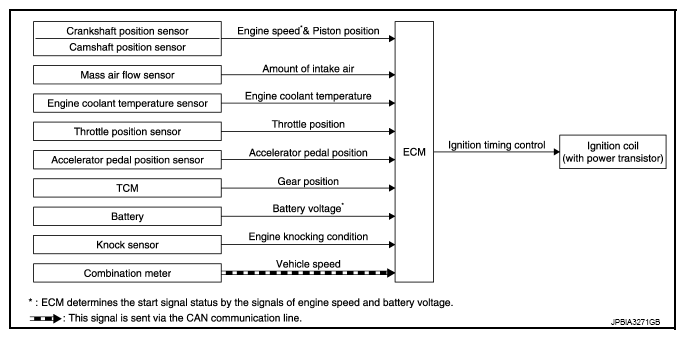

Fig 1: Identifying Electric Ignition System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
